Multi-Family Plan 84942

• PDF File: $2,798.00
• 5 Sets plus PDF File: $3,093.00
• PDF File Unlimited Build: $3,797.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $3,397.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $4,396.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Materials List: $299.00
• Right Reading Reverse: $299.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $59.00

Available Foundation Types:

• Basement : $299.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $299.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : No Additional Fee
• Walkout Basement : $299.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $299.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	4354 sq ft
Main Living Area:	2142 sq ft
Upper Living Area:	2212 sq ft
Garage Area:	554 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement - * $299.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $299.00 Slab Walkout Basement - * $299.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x4 2x6 - * $299.00
House Width:	64'0
House Depth:	50'4
Number of Stories:	2
Bedrooms:	6
Full Baths:	4
Half Baths:	2
Max Ridge Height:	27'0 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Framing:	Unknown
Porch:	246 sq ft
FirePlace:	Yes
2nd Floor Laundry:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Coat Closet
• Entertaining Space
• Flex Space
• Front Porch
• Mudroom
• Open Floor Plan
• Pantry
• Storage Space
• Wet Bar

Modern Farmhouse Style Duplex with 2177 Square Feet per Unit

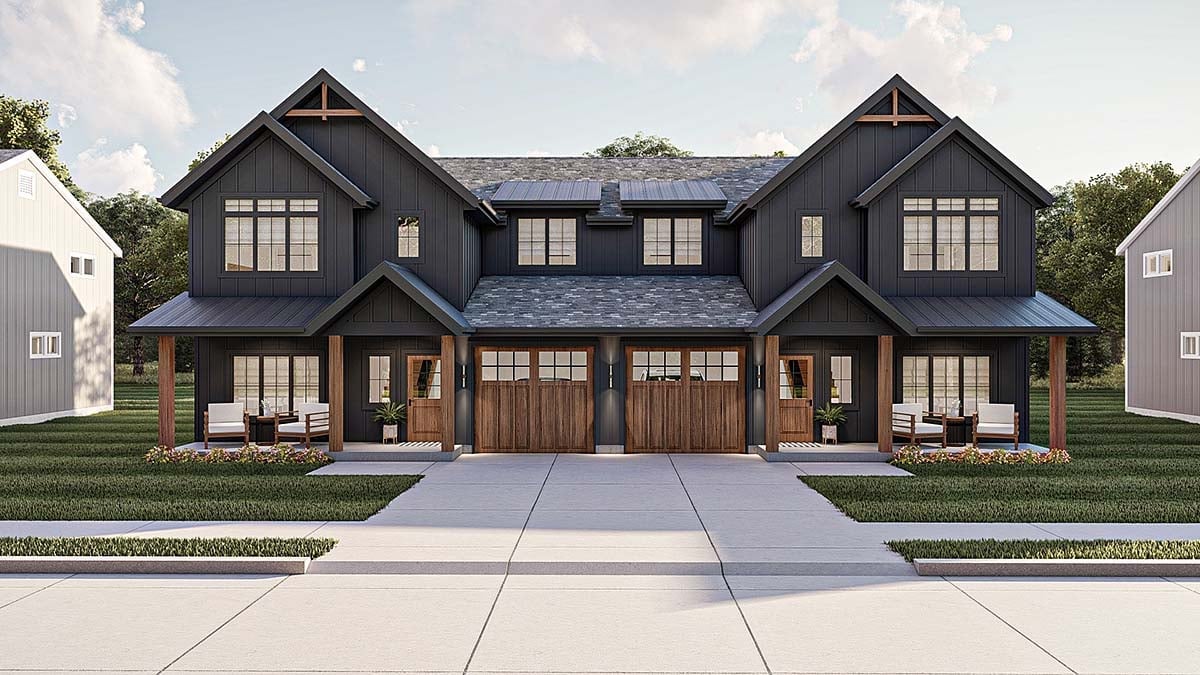

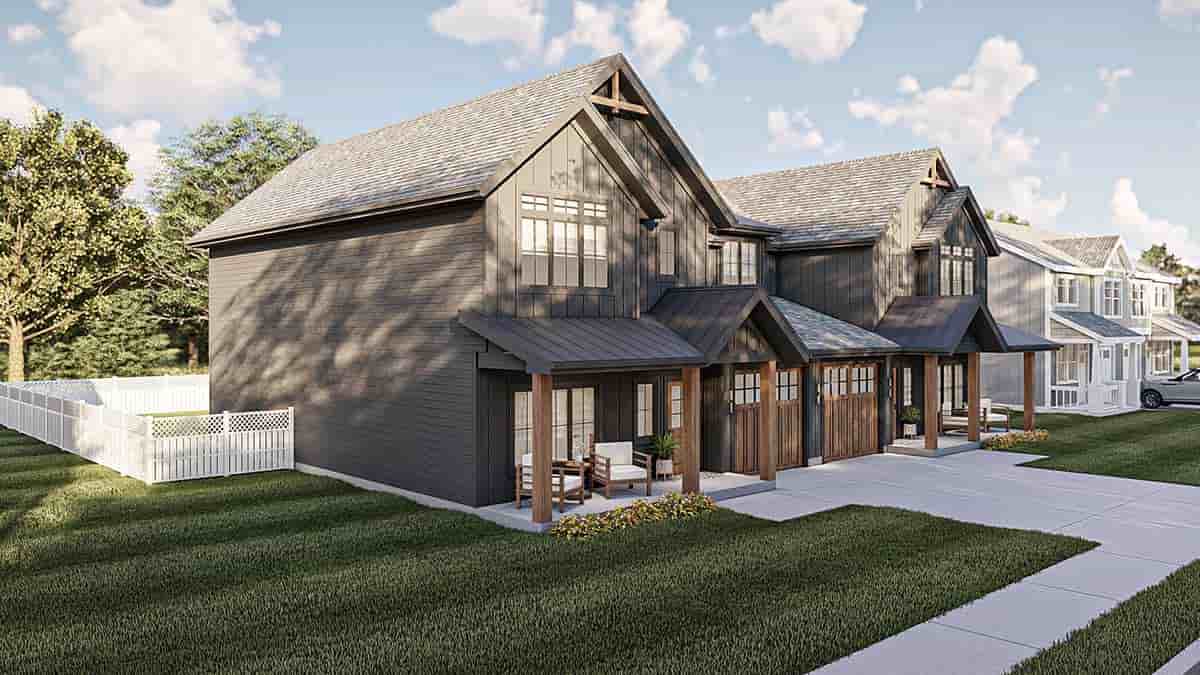

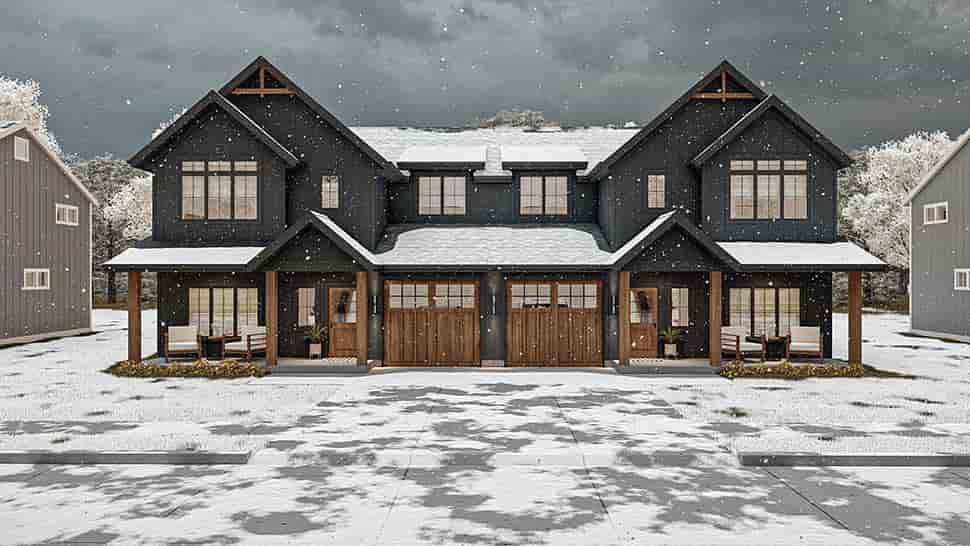

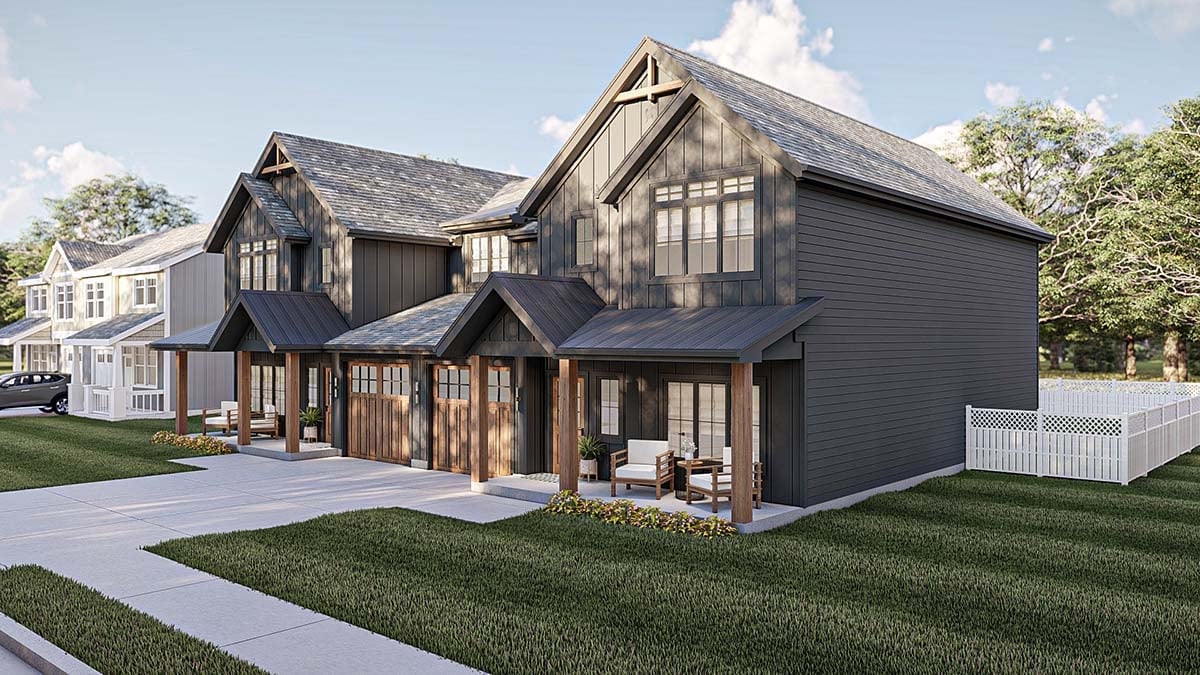

With board and batten siding as well as the contrast from the black exterior and wood accents, the curb appeal of this plan is show stopping.

A covered porch next to the one-car garage is a wonderful space to sit and have coffee in the morning, or a place to watch the sunsets after dinner. Head inside to find a long hallway with stairs to head up to all the bedrooms.

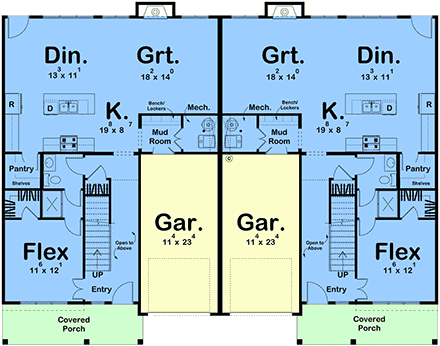

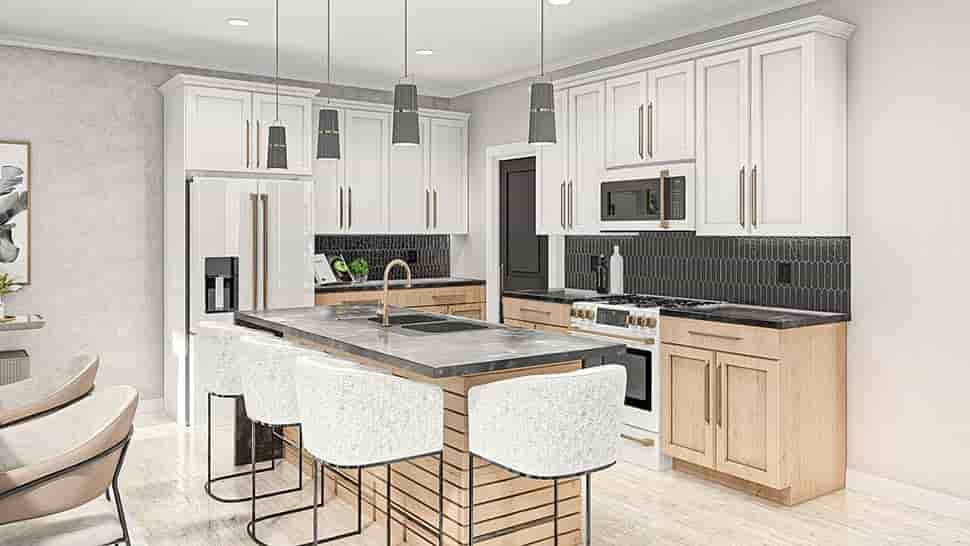

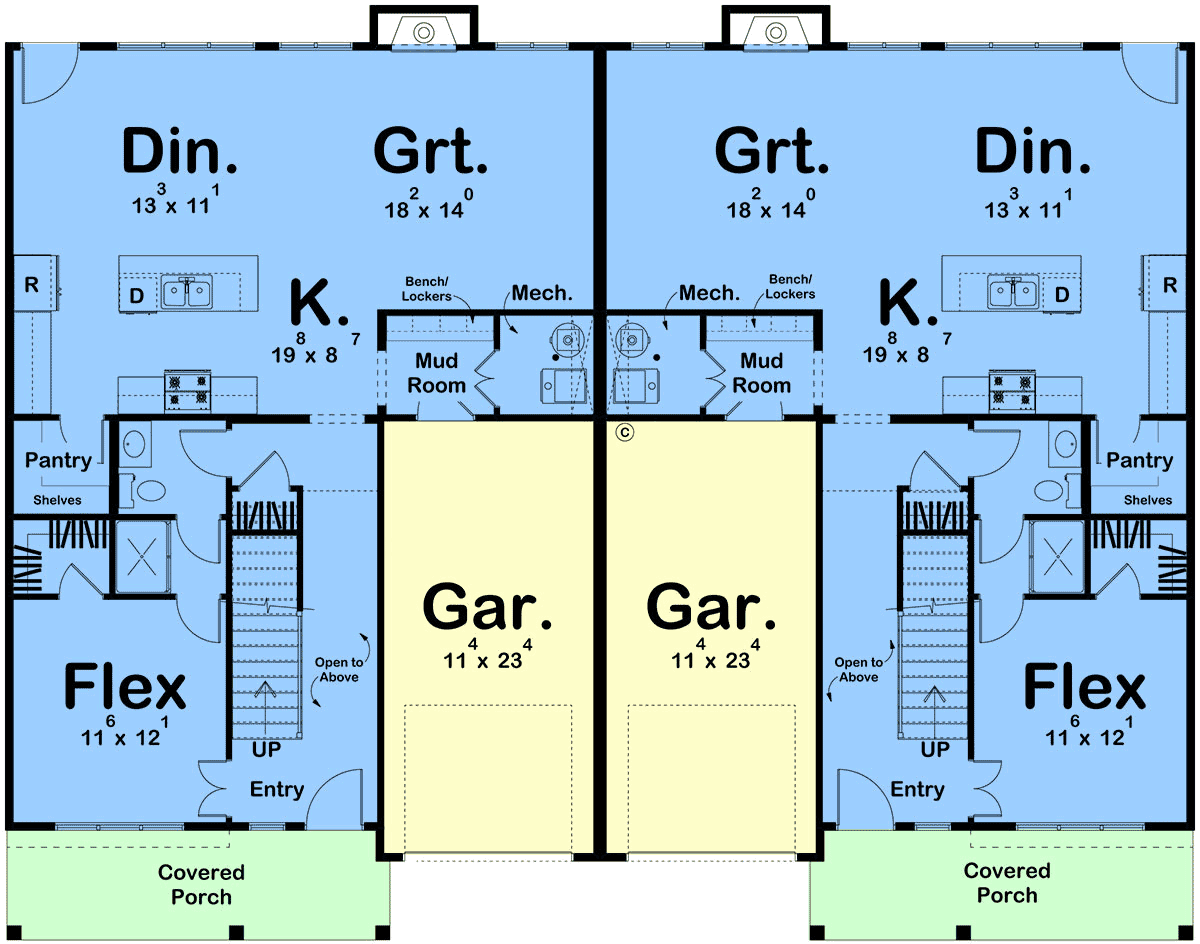

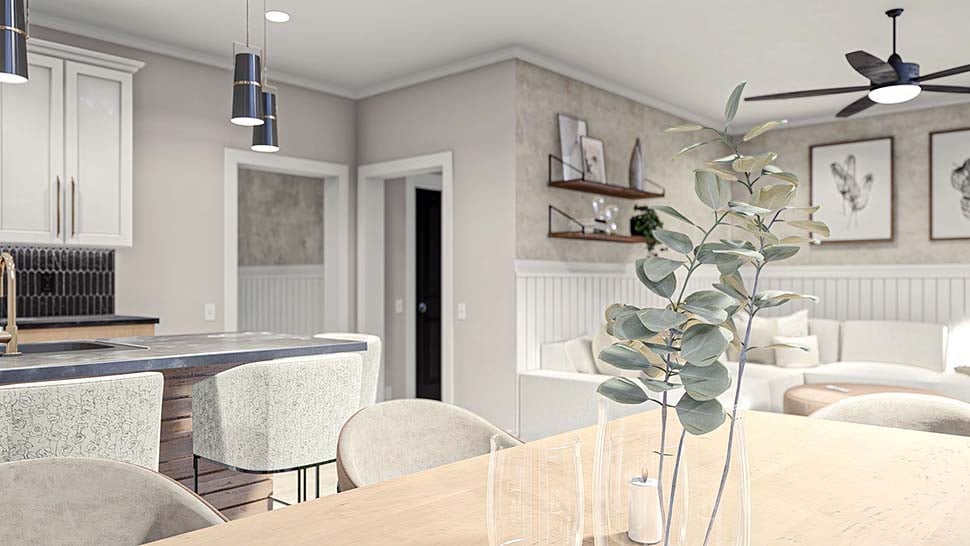

A flex room with a walk-in closet can also be found next to the stairs, making a great space for an office or extra bedroom. This room connects to a shared bathroom, as well as leads out into the shared space for the kitchen, dining room, and great room. The kitchen provides a large kitchen island, a walk-in pantry, and a mudroom to access the one-car garage.

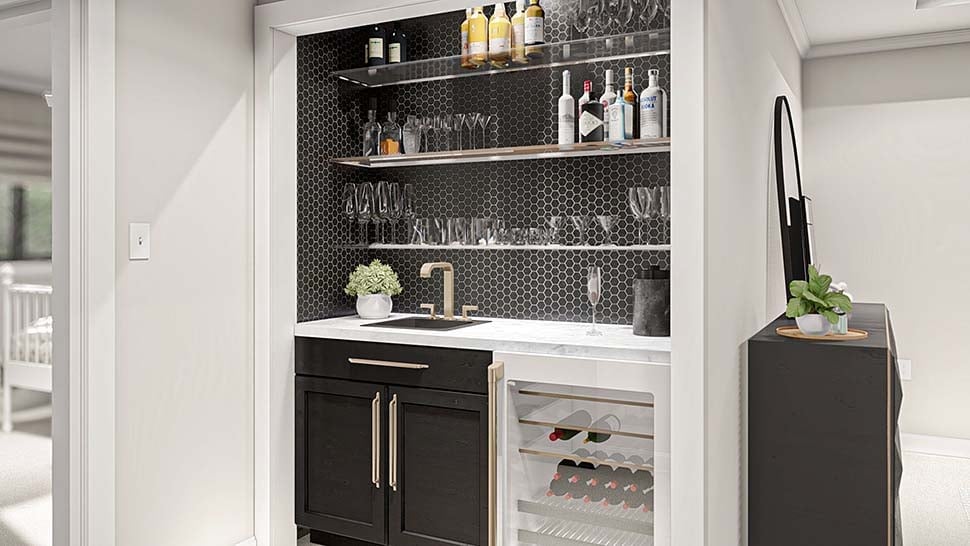

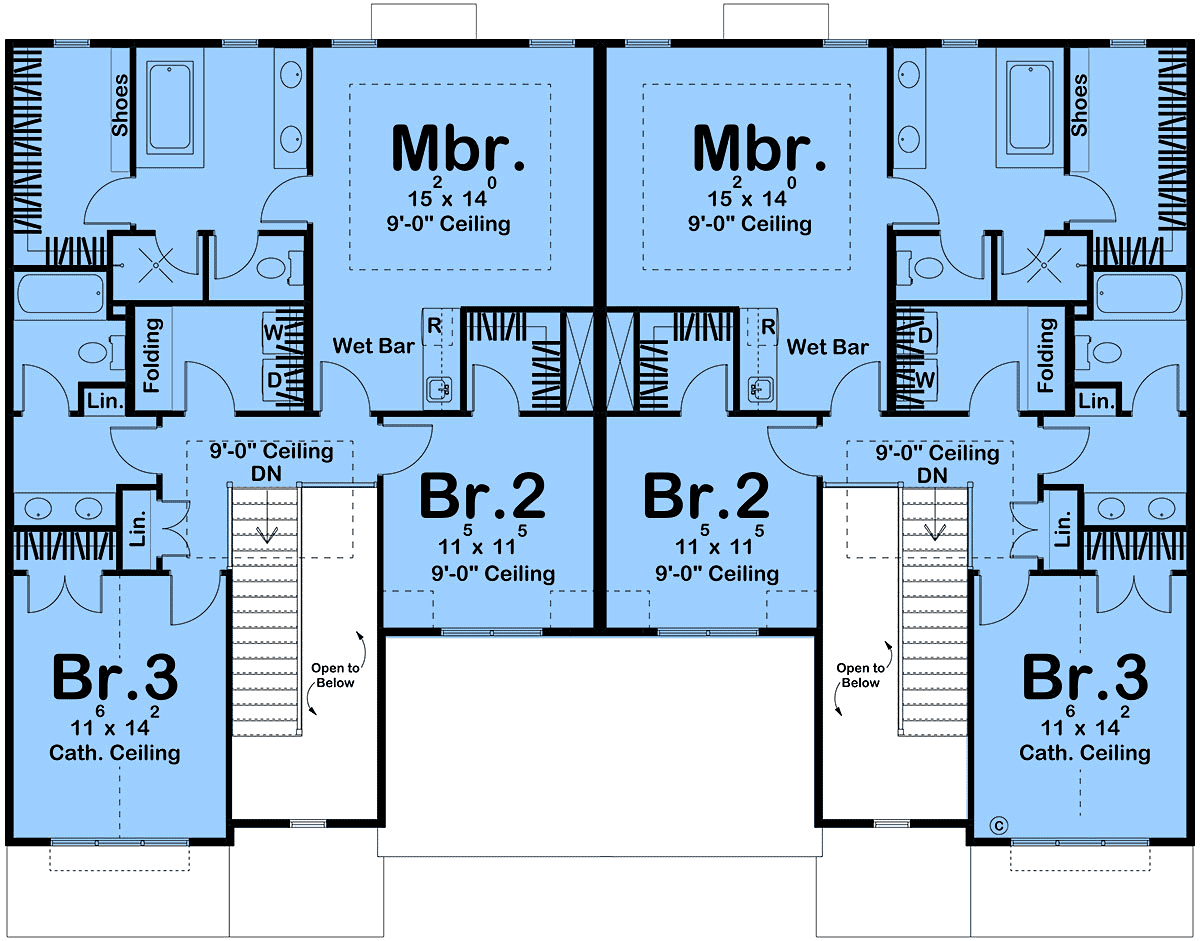

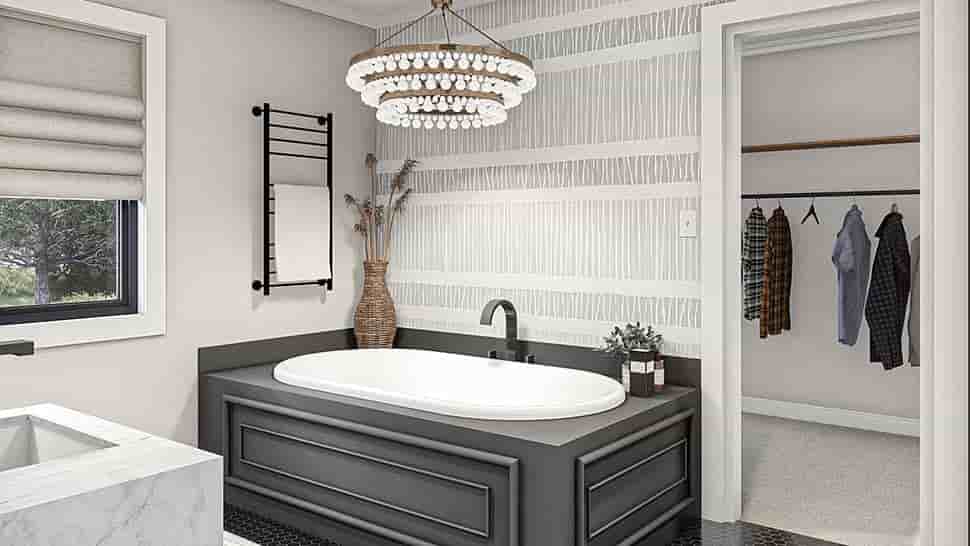

As previously mentioned, the upstairs is where all the bedrooms can be found. The master bedroom is complete with a wet bar upon entry, a large private bathroom, double vanity, soaking tub, and separate toilet and shower areas. A large walk-in closet can also be found connected with a built-in shoe rack. The laundry room can also be found here, as well as the bathroom for bedrooms 2 and 3 to share.

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation and typical notes and requirements.

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements.

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.

Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible. Detached garage plans may not include an electrical plan. Please call to verify.

Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

Roof Plan

Typical wall section

Typical stair section

Cabinets are shown on all plans

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Common Q & A
