Garage-Living Plan 85137
Traditional Style with 2 Bed, 3 Bath, 2 Car Garage
sq ft
1694beds
2baths
3bays
2width
44'depth
30'
click for more images
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1694 sq ft |
| Lower Living Area: | 374 sq ft |
| Main Living Area: | 1320 sq ft |
| Garage Area: | 946 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 44'0 |
| House Depth: | 30'0 |
| Number of Stories: | 2 |
| Bedrooms: | 2 |
| Full Baths: | 3 |
| Max Ridge Height: | 29'9 from Front Door Floor Level |
| Primary Roof Pitch: | 7:12 |
| Roof Load: | 50 psf |
| Roof Framing: | Truss |
| FirePlace: | Yes |
| 2nd Floor Laundry: | Yes |
| Main Ceiling Height: | 9'1 |
| Upper Ceiling Height: | 9'1 |
Special Features:
What's Included?

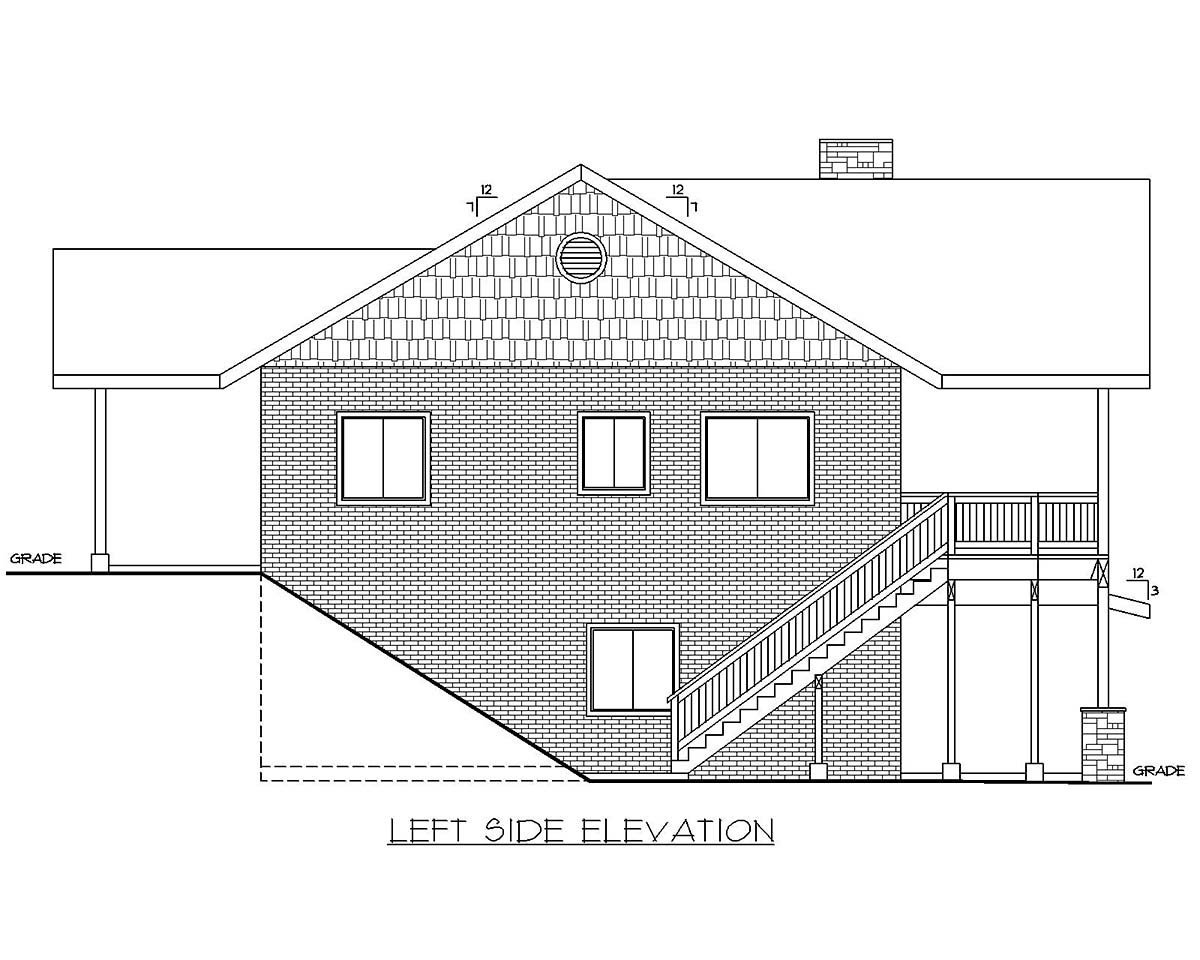

Detailed Elevations
Detailed Floor Plans
Foundation Plan
Floor Framing Plan
Roof framing Plan
Cross Sections
Electrical Plans
General Notes to cover entire project
Joist size, beam size, connections and hardware are shown. Materials list is not.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Hello, The snow load is 50 PSF. Thank you!
A: Hello, Yes they will be!
A: Hello, Here are those dimensions: width 44' depth (house only) 30' depth (patio & deck included) 48'-9" Thank you!
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

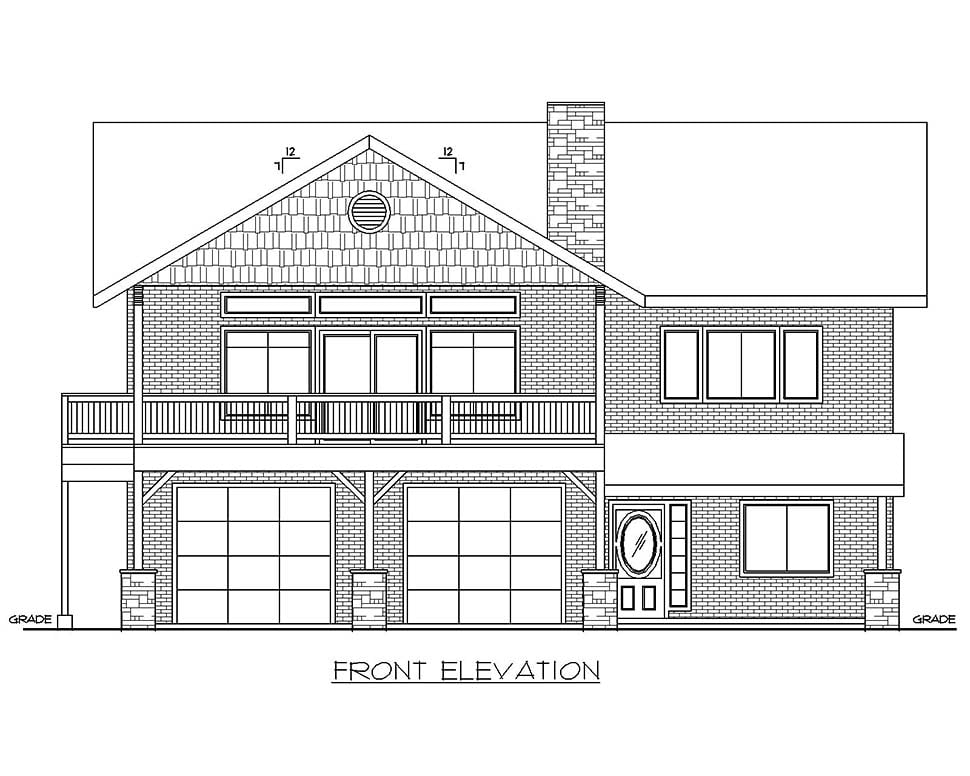

Elevation

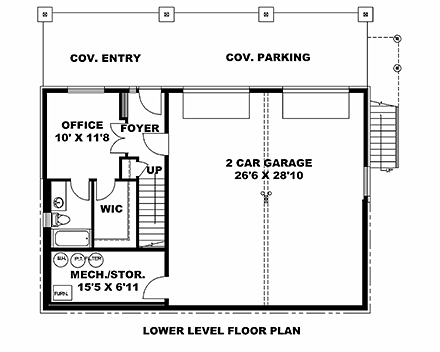

Level One

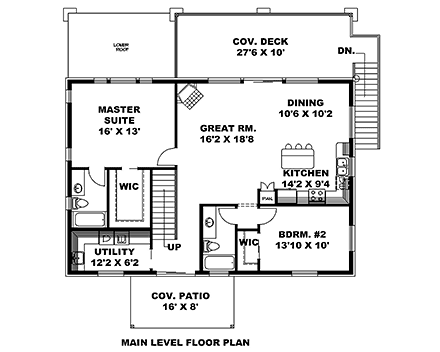

Level Two
Quick Specs
1694 Total Living Area374 Lower Level
1320 Main Level
2 Bedrooms
3 Full Baths
2 Car Garage
44'0 W x 30'0 D
Quick Specs
1694 Total Living Area2 Bedrooms
3 Full Baths
2 Car Garage
44'0 W x 30'0 D
Pricing
PDF File: $1,245.005 Sets: $1,145.00
5 Sets plus PDF File: $1,395.00
Unlimited Use PDF: $1,945.00
CAD File: $1,245.00
more info
Rear Elevation
Photographs may show modified designs.
Buy This Plan
Have any Questions? Please Call 800-482-0464 and our Sales Staff will be able to answer most questions and take your order over the phone. If you prefer to order online click the button below.
Add to cart
