Garage-Living Plan 85150
Barndominium Style with 1 Bed, 1 Bath, 3 Car Garage
sq ft
1047beds
1baths
1bays
3width
36'depth
40'
click for more images
Plan Pricing
Additional Notes
Overall Width with Lean To: 50'Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1047 sq ft |
| Main Living Area: | 167 sq ft |
| Upper Living Area: | 880 sq ft |
| Garage Area: | 1217 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 36'0" |
| House Depth: | 40'0" |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 27'4" from Front Door Floor Level |
| Primary Roof Pitch: | 7:12 |
| Roof Framing: | Truss |
| Main Ceiling Height: | 9'1 |
| Upper Ceiling Height: | 9'1 |
| Vaulted Ceiling: | Yes |
Special Features:
What's Included?
Detailed Elevations
Detailed Floor Plans
Foundation Plan
Floor Framing Plan
Roof framing Plan
Cross Sections
Electrical Plans
General Notes to cover entire project
Joist size, beam size, connections and hardware are shown. Materials list is not.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

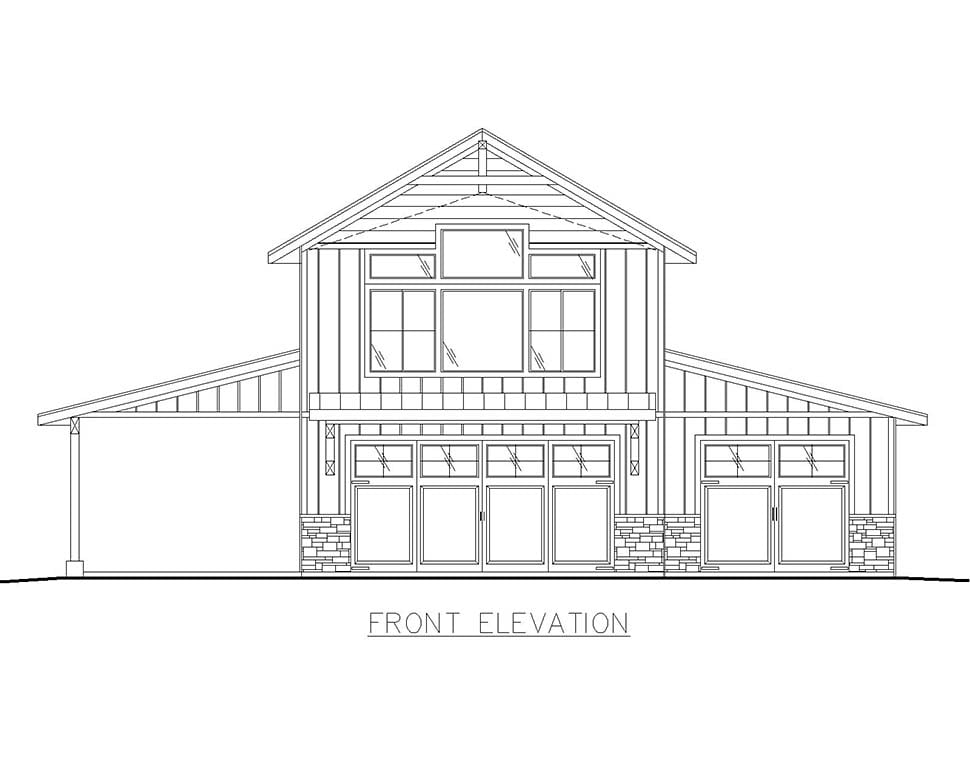

Elevation

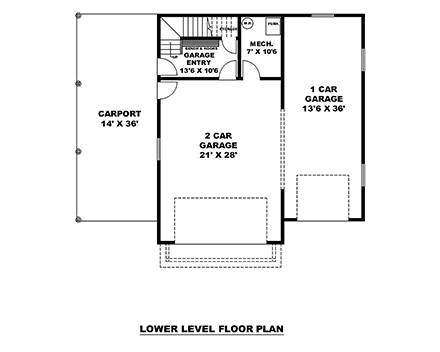

Level One

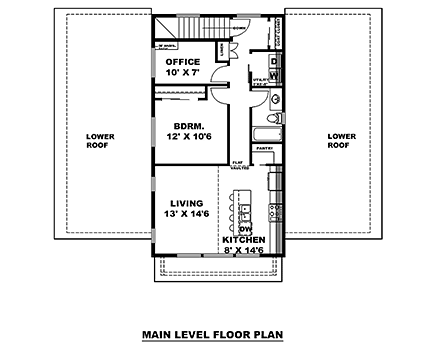

Level Two
Quick Specs
1047 Total Living Area167 Main Level
880 Upper Level
1 Bedrooms
1 Full Baths
3 Car Garage
36'0" W x 40'0" D
Quick Specs
1047 Total Living Area1 Bedrooms
1 Full Baths
3 Car Garage
36'0" W x 40'0" D
Pricing
PDF File: $1,245.005 Sets: $1,145.00
5 Sets plus PDF File: $1,395.00
CAD File: $1,245.00
more info
Rear Elevation
Photographs may show modified designs.
Buy This Plan
