Plan Pricing
Additional Notes
Garage Door - 12' HighAvailable Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Lower Living Area: | 531 sq ft |
| Bonus Area: | 531 sq ft |
| Garage Area: | 968 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 30' |
| House Depth: | 50' |
| Number of Stories: | 2 |
| Full Baths: | 1 |
| Max Ridge Height: | 22'10 from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Framing: | Truss and/or Stick |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 8'2 |
What's Included?
Detailed Elevations
Detailed Floor Plans
Foundation Plan
Floor Framing Plan
Roof framing Plan
Cross Sections
Electrical Plans
General Notes to cover entire project
Joist size, beam size, connections and hardware are shown. Materials list is not.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Hello, Covered areas on either side are 12'W X 50'D, the height starts at 8'-2" and slopes to 13'-11" at a 6/12 pitch. We only calculate roof loads, Snow load is 50#, wind load is 90 mph. with a 3 sec. gust. In the front section of the floor plan, the interior plate height starts at 14'-8" and peaks at 18'-3 1/2" at a 3/12 pitch. In the rear of the floor plan, the main level below the loft has the height of 9'H, in the loft area, the plate height is 4'-7" and peaks at 8'-2 1/2" at a 3/12 pitch. Foundation is footing,stem wall and a poured slab. Thank you!
A: 7'-9" from bottom of the eaves to grade. The overhang is 24".
A: The height is just under 7'-9" from grade to the bottom of the eaves. Yes, this height can increase with a change in roof slope or by increasing the height of the structure.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

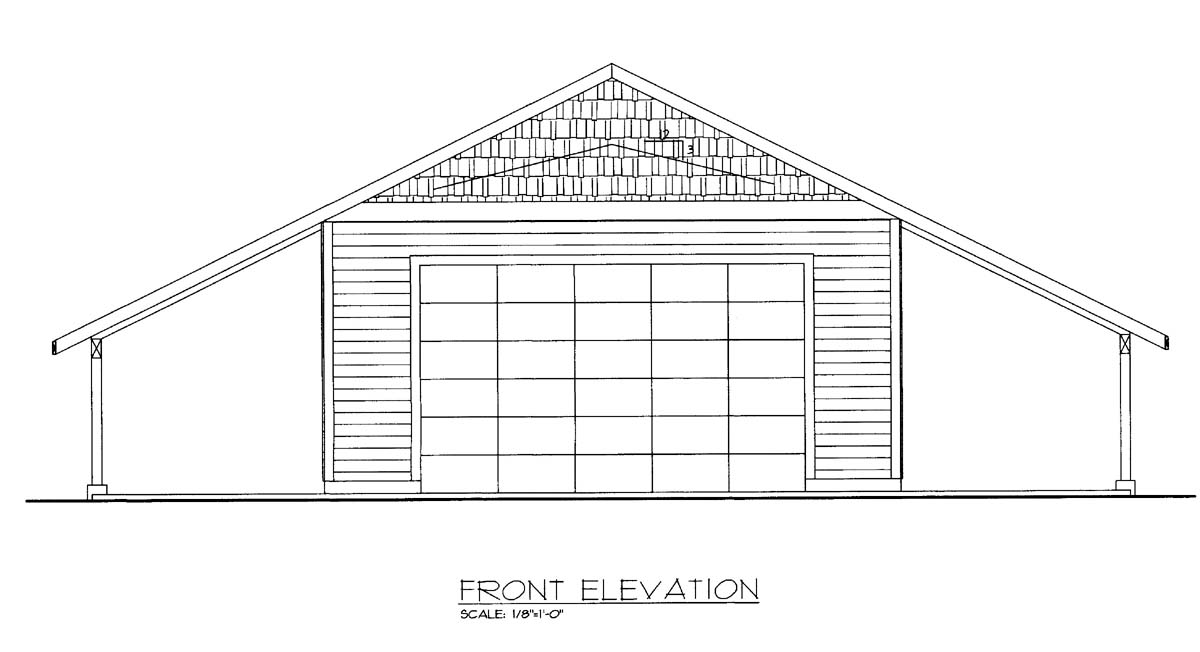

Elevation

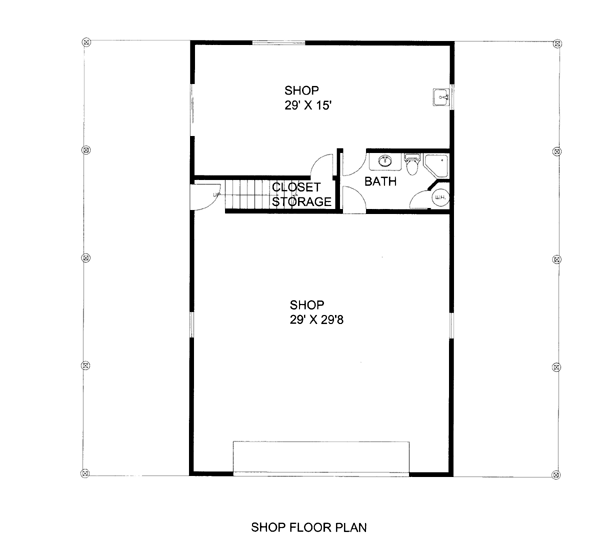

Level One

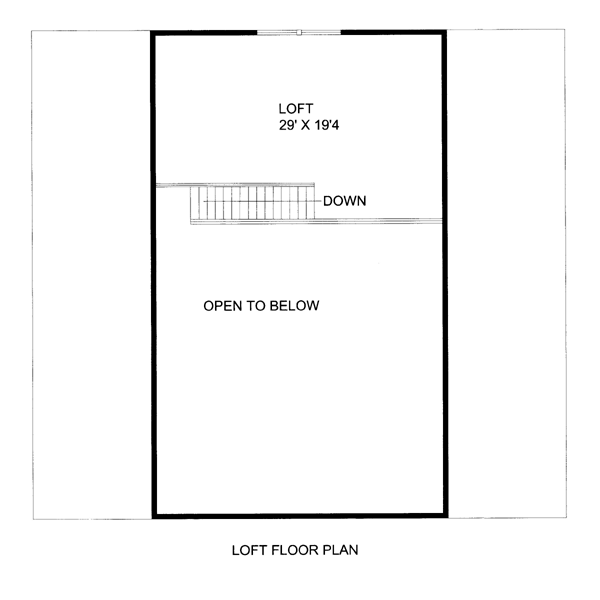

Level Two
Quick Specs
531 Lower Level531 Bonus Area
2 Car Garage
30' W x 50' D
Quick Specs
531 Bonus Area2 Car Garage
30' W x 50' D

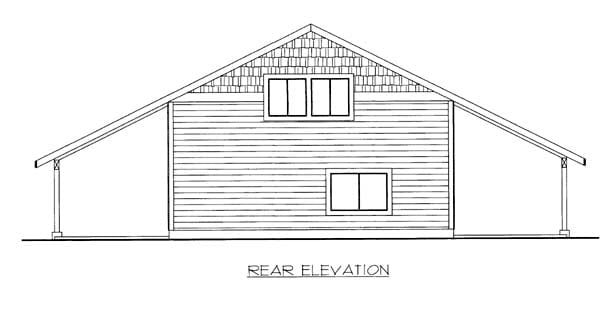

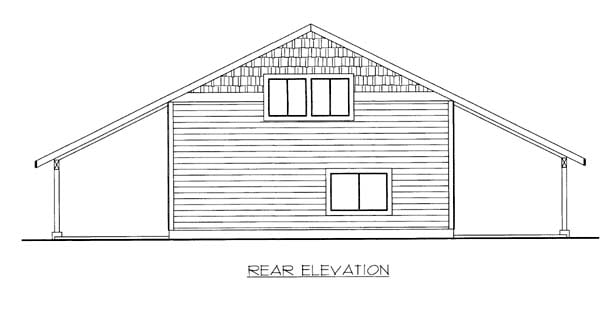

Rear Elevation
Photographs may show modified designs.
