2 Car Garage Plan 86864
Garage Plan 86864 with 2 Car Garage & 951 Sq Ft, 2 Bed, 2 Bath
Click Any Image For Gallery
Plan Pricing from $990.00
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 951 sq ft |
| Main Living Area: | 427 sq ft |
| Upper Living Area: | 524 sq ft |
| Garage Type: | Drive Under |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | |
| House Width: | 28' |
| House Depth: | 34' |
| Number of Stories: | 2 |
| Bedrooms: | 2 |
| Full Baths: | 1 |
| Half Baths: | 1 |
| Max Ridge Height: | 22'7 from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Framing: | Truss |
| Porch: | 24 sq ft |
| FirePlace: | Yes |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 9' |
Plan Description
Garage Apartment House Plan 86864 with 951 Sq Ft, 2 Bed, 1.5 Bath, 2 Car Garage
Discover versatile living with Garage Apartment House Plan 86864, offering a smart combination of comfort and functionality in 951 square feet. This unique garage apartment plan seamlessly blends a spacious two-car drive-under garage with a perfectly appointed two-bedroom living space, ideal for a guest suite, rental opportunity, downsizing, or multigenerational living.The exterior features a classic, compact design measuring 28 feet wide by 34 feet deep, topped by a striking 12:12 pitched truss roof and highlighted by a charming 24-square-foot front porch. Crisp elevation lines and thoughtful window placements add curb appeal while maximizing natural light throughout the home.

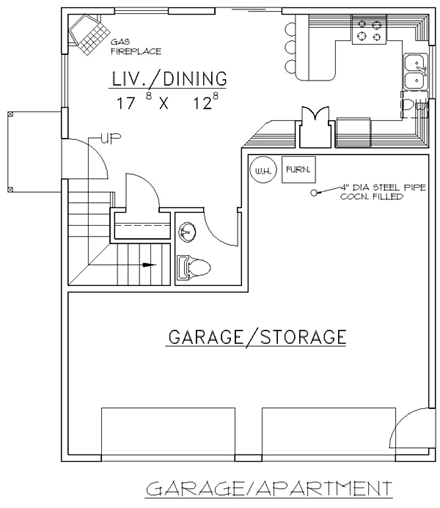

Step inside to a main living area with soaring 9-foot ceilings, designed for open-concept living. The first floor offers a welcoming foyer and convenient half bath, with stairs leading to the upper level where the heart of the home unfolds. The upper living area is thoughtfully arranged to promote easy flow between the living room, dining, and kitchen, creating a warm, inviting atmosphere for relaxing or entertaining.

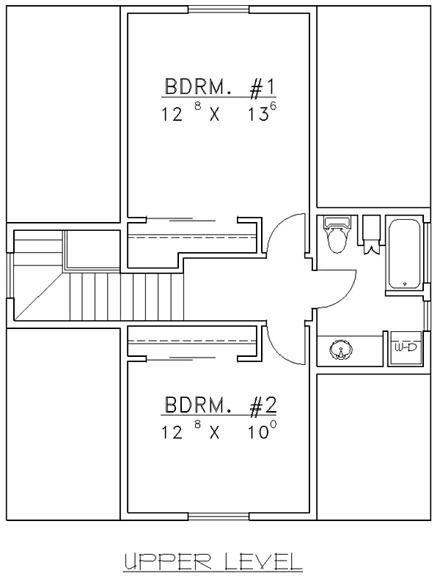

The primary suite and second bedroom are both located upstairs, each enjoying the privacy and quiet of the upper level. The full bathroom is stylishly appointed and easily accessible from both bedrooms, making everyday routines effortless.
This garage apartment plan includes bonus features like a cozy fireplace in the main living area, enhancing comfort year-round. Ample garage space below provides secure parking and storage, while the slab foundation ensures durability and easy access. Truss roof framing allows for efficient construction and long-term value.
Outdoor living is elevated by the inviting front porch—perfect for morning coffee or greeting guests. The compact footprint and efficient layout make this plan an excellent choice for urban lots, guest houses, or those seeking an accessory dwelling unit (ADU) for rental income or family needs.
Garage Apartment House Plan 86864 is designed for those who appreciate flexible living, low maintenance, and the opportunity to expand their lifestyle options. Whether you're seeking a private retreat or an income-generating property, this plan delivers style, convenience, and enduring value.
What's Included?
Our Plans include:
Detailed Elevations
Detailed Floor Plans
Foundation Plan
Floor Framing Plan
Roof framing Plan
Cross Sections
Electrical Plans
General Notes to cover entire project
Joist size, beam size, connections and hardware are shown. Materials list is not.
