3 Car Garage Apartment Plan 87186
Traditional Style 3 Car Garage Apartment with 3 Bed, 2 Bath, RV Storage | Plan 87186
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2500 sq ft |
| Upper Living Area: | 2500 sq ft |
| Garage Area: | 2500 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | |
| House Width: | 50' |
| House Depth: | 50' |
| Number of Stories: | 2 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Max Ridge Height: | 30'2 from Front Door Floor Level |
| Primary Roof Pitch: | 4:12 |
| Roof Framing: | Truss |
| Porch: | 160 sq ft |
| FirePlace: | Yes |
| 2nd Floor Laundry: | Yes |
| Main Ceiling Height: | 11'-13' |
| Upper Ceiling Height: | 9' |
What's Included?
Detailed Elevations
Detailed Floor Plans
Foundation Plan
Floor Framing Plan
Roof framing Plan
Cross Sections
Electrical Plans
General Notes to cover entire project
Joist size, beam size, connections and hardware are shown. Materials list is not.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Hello, The ceiling height of the deep side of the garage is 11', to change the ceiling height please fill out a modification request form. Thank you!
A: This plan is 2x6 wall framing.
A: There are posts that can be removed and in place, a larger beam.
A: In the middle bay, the back 15'-10" goes back down to an 11' plate height.
A: Garage door sizes left to right are: 12'X9', 12'X12', 9'X9'. Man door is 3'X6'-8"
A: 11' on left and right side, 13' in middle bay.
A: 2X6 studs.
A: No, these areas have a flat ceiling, plate height @ 9'. Thank you!
A: 15'-6 wide x 49' deep... the wall you see is just a partition wall and can be removed, or moved... that wall is shown @ 24' back... Thank you!
A: Hello
Your height is 13' the width of the middle bay is 15'-6" the depth is 49' the interior middle bay wall is not bearing and can be removed...
Thank you,
A: THE MIDDLE ON IS 12' WIDE X 12' HIGH THE REST ARE 9' HIGH
A: The two side garage doors are 9' high and the middle door is 12' high.. I have at least a dozen of these built...I will try to get same pictures for you... but it may take a while...
A: As your looking at the front... left side 12' wide x 9' high middle 12'x12' right side 9'x9' rear 12' wide x 9' high..
A: HELLO LEFT BAY AND RIGHT BAY ARE 11' HIGH, MIDDLE BAY 13' HIGH MIDDLE BA DEPTH IS 24' BUT CAN BE EXTENDED TO 33'
A: My client originally built this house... with an unfinished lower level @ $40.00 a sq' and a better than average upper level @ $95.00 a square'... sorry I am just the Architect... you would have to find your own builder...
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
Photographs may show modified designs.
Elevation

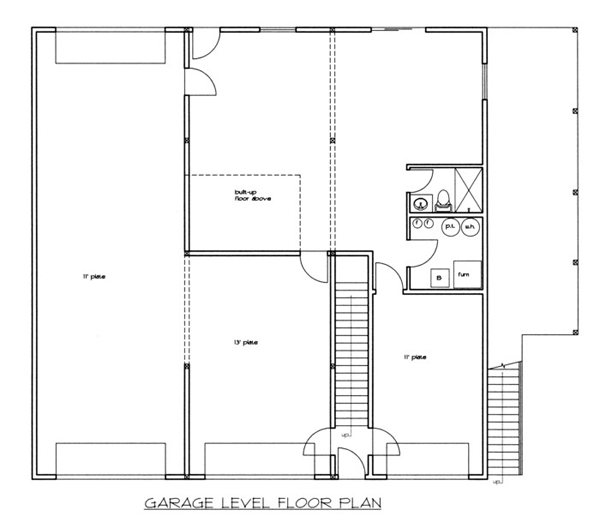

Level One

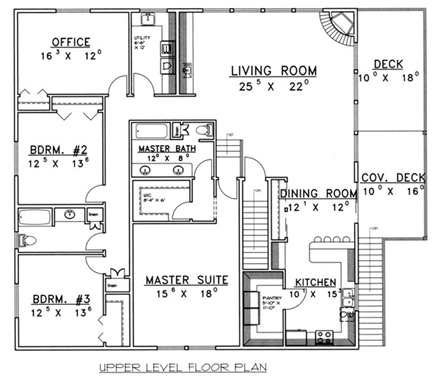

Level Two
