2 Car Garage Apartment Plan 87403
Craftsman Style 2 Car Garage Apartment with 1 Bed, 1 Bath
click for more images
Plan Pricing
This particular designer's plans cannot be purchased if they are to be built in Washington State.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 565 sq ft |
| Main Living Area: | 80 sq ft |
| Upper Living Area: | 485 sq ft |
| Garage Area: | 576 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 2 |
| Foundation Types: | Basement Slab |
| Exterior Walls: | 2x6 |
| House Width: | 28 |
| House Depth: | 24 |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 22'1 from Front Door Floor Level |
| Primary Roof Pitch: | 3.5:12 |
| Roof Load: | 25 psf |
| Roof Framing: | Truss |
| Main Ceiling Height: | 9'1 |
| Upper Ceiling Height: | 8'1 |
What's Included?
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Previous Q & A
A: From the main floor to the ridge is 22’-1-3/16”. They are going to frame the garage floor with joists?
I am not sure what they are referring to here. Main Floor to the Upper Floor Plate: 18’-0”
Upper Floor Plate to Top of Ridge: 4’-1-3/16
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.
Elevation

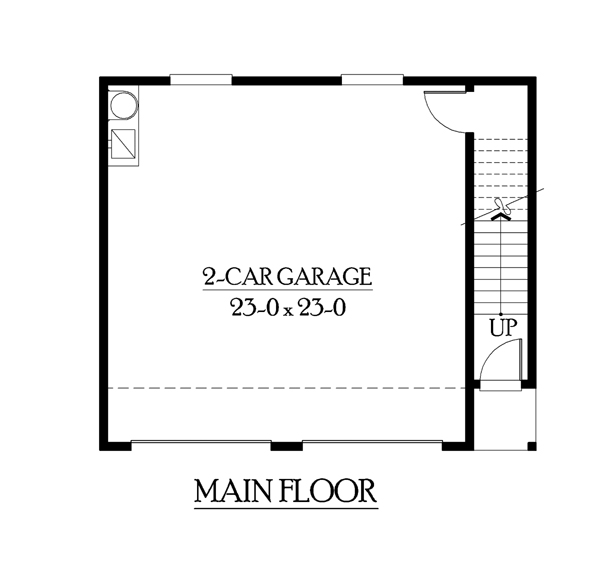

Level One
Level Two
Quick Specs
565 Total Living Area80 Main Level
485 Upper Level
1 Bedrooms
1 Full Baths
2 Car Garage
28 W x 24 D
Quick Specs
565 Total Living Area1 Bedrooms
1 Full Baths
2 Car Garage
28 W x 24 D
