House Plan 87669
Craftsman Style with 4 Bed, 4 Bath, 4 Car Garage | Plan 87669
sq ft
4300beds
4baths
3.5bays
4width
106'depth
53'
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.This particular designer's plans cannot be purchased if they are to be built in Washington State.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 4300 sq ft |
| Main Living Area: | 2360 sq ft |
| Upper Living Area: | 1940 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 4 |
| Foundation Types: | Crawlspace |
| Exterior Walls: | 2x6 |
| House Width: | 106' |
| House Depth: | 53' |
| Number of Stories: | 2 |
| Bedrooms: | 4 |
| Full Baths: | 3 |
| Half Baths: | 1 |
| Max Ridge Height: | 31' from Front Door Floor Level |
| Primary Roof Pitch: | 8:12 |
| Roof Load: | 25 psf |
| Roof Framing: | Truss |
| Porch: | 777 sq ft |
| FirePlace: | Yes |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 8' |
What's Included?
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Previous Q & A
A: Sorry for the delay in my response, I was out of the office on Friday.
Here is what included in with the plans.
A1- Coversheet
A2- Schedule Page
A3-General Details
A4-Foundation/Main Floor Framing
A5-Main Floor/Upper Floor Framing
A6-Upper Floor
A7-Roof Framing
A8-Front and Rear Elevation
A9-Left and Right Elevation
A10-Sections
The plans do not include electrical , mechanical, or plumbing plans.
If you are ordering the CAD files I could have them emailed over right after I receive the order.
A: 1. Each porch column has 4’-0” of stone work, the garage has 30”. 2. The plate of the front porch is 9’-1”
A: The roof pitch for the shed dormer is 4:12.
A: Hello, The porch/garage roof pitch is 4:12. The typical upper roof pitch on this house is 8:12. The front main floor guest room has a bay with four separate windows. The two angled windows are 2'-0" w x 6'-0"h single-hung (the bottom half slides up) and the two center windows are 3'-0" w x 6'-0"h single-hung.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464

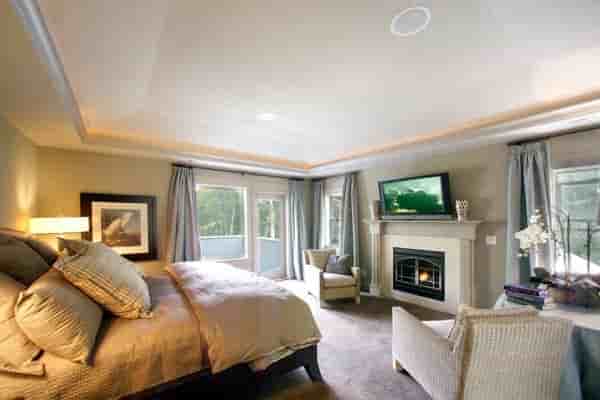

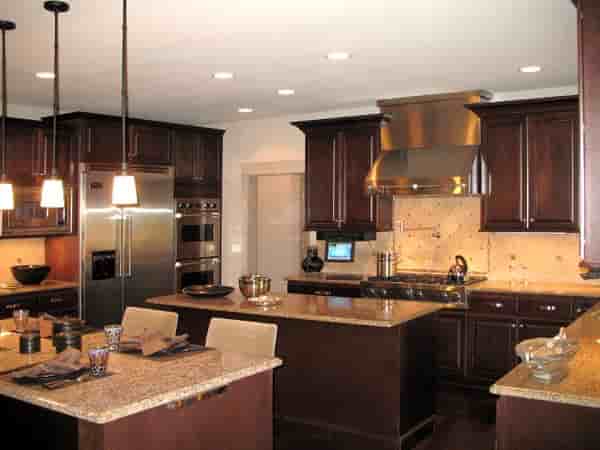

Photographs may show modified designs.

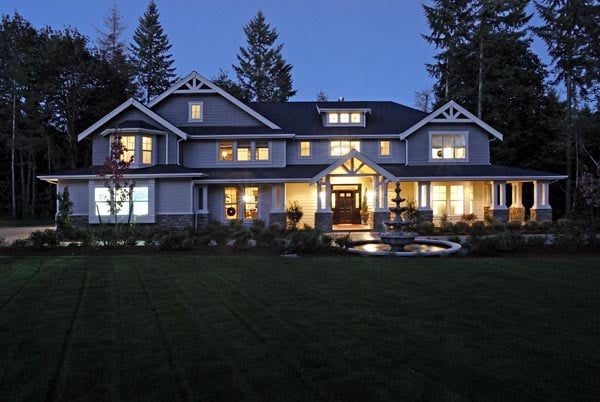

Elevation

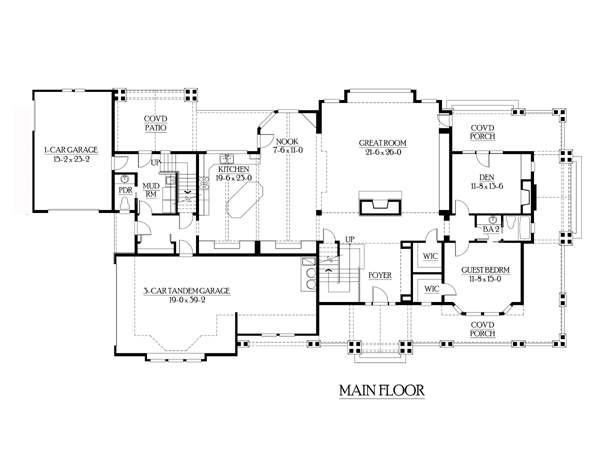

Level One

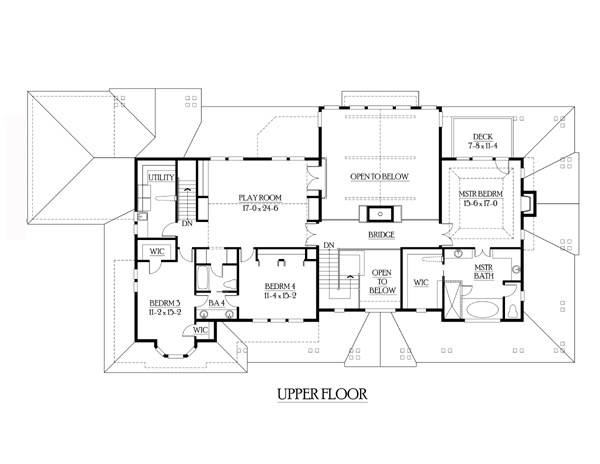

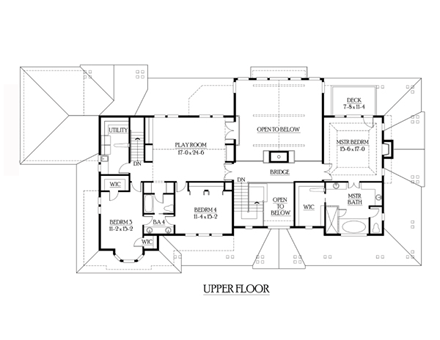

Level Two
Quick Specs
4300 Total Living Area2360 Main Level
1940 Upper Level
4 Bedrooms
3 Full Baths, 1 Half Baths
4 Car Garage
106' W x 53' D
Quick Specs
4300 Total Living Area4 Bedrooms
3 Full Baths, 1 Half Baths
4 Car Garage
106' W x 53' D
