3 Car Garage Plan 87870
Garage Plan 87870 with 3 Car Garage
Click Any Image For Gallery
Plan Pricing from $350.00
Plan Pricing
** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.
The ceiling height on the second floo is 9'8". The width of the usable space is about 22'.
Additional Notes
Floor Structure: 2X10's @ 16"o.c. with beam down the middle.The ceiling height on the second floo is 9'8". The width of the usable space is about 22'.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Garage Area: | 864 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 3 |
| Foundation Types: | Stem Wall Slab |
| Exterior Walls: | 2x4 |
| House Width: | 24' |
| House Depth: | 36' |
| Number of Stories: | 1 |
| Max Ridge Height: | 24' from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Load: | 30 psf |
| Roof Framing: | Truss |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 9'8 |
Plan Description
Garage Plan 87870 with 864 Sq Ft, 3 Car Garage
Discover the ultimate in versatile storage and vehicle protection with Garage Plan 87870. This expertly designed detached garage offers a generous 864 square feet of space, providing ample room for up to three vehicles, workshop needs, or additional storage solutions. With its classic proportions—24 feet wide by 36 feet deep—this garage plan is an ideal fit for a variety of lot sizes and property layouts.The exterior of Garage Plan 87870 showcases clean lines and a functional design, making it a seamless addition to both modern and traditional homes. The elevation image reveals a welcoming and balanced façade, while the truss roof framing ensures long-lasting durability. With a maximum ridge height of 24 feet, this detached garage stands tall, adding a substantial presence without overwhelming your landscape.

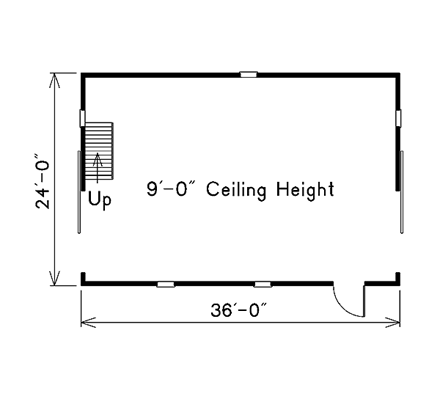

Step inside to experience an open, unobstructed floor plan, perfect for maneuvering vehicles or setting up a workshop. The main ceiling height of 9 feet creates a spacious and accessible interior, while the upper ceiling height of 9 feet 8 inches maximizes usable storage space. Quality construction is assured with 2x10 floor joists set 16 inches on center and a central beam for robust support.
This garage plan features three generously sized bays, accommodating cars, trucks, recreational vehicles, or lawn equipment with ease. The stem wall slab foundation option provides a solid and straightforward base, ensuring lasting performance and ease of construction.
Whether you're an auto enthusiast, hobbyist, or simply in need of extra storage, Garage Plan 87870 is the perfect solution. The detached layout offers flexibility for placement on your property, while the thoughtful design allows for future modifications to suit your evolving needs.
Add value and function to your home with this 3 car garage plan, designed for convenience, organization, and long-term satisfaction. Ideal for homeowners seeking secure vehicle storage, hobby space, or a versatile detached structure to complement their main residence.
What's Included?
Foundation: This shows the layout of the basement, crawl space, or slab foundation.
Floor Plans: Placement of walls, windows, doors, plumbing fixtures, electrical outlets, beams, etc..
Exterior Elevations: Illustrates the front, rear, and sides of the house, in detail, including instructional notes such as materials, roof pitch, ceiling heights, etc.
Interior Elevations: Views of special interior elements such as kitchen & bath cabinets, fireplaces, etc.
Cross Section: Views of areas such as load-bearing walls, stairs, trusses, or other structural elements.
Details: How to construct certain parts of your home, such as the roof system, stairs, or deck.
Floor Plans: Placement of walls, windows, doors, plumbing fixtures, electrical outlets, beams, etc..
Exterior Elevations: Illustrates the front, rear, and sides of the house, in detail, including instructional notes such as materials, roof pitch, ceiling heights, etc.
Interior Elevations: Views of special interior elements such as kitchen & bath cabinets, fireplaces, etc.
Cross Section: Views of areas such as load-bearing walls, stairs, trusses, or other structural elements.
Details: How to construct certain parts of your home, such as the roof system, stairs, or deck.
