Plan Pricing from $995.00

Plan Pricing

PDF File: $995.00
5 Sets: $1,145.00
5 Sets plus PDF File: $1,245.00
CAD File Unlimited Build: $1,995.00
Unlimited Build License issued on CAD File Unlimited Build orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $150.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $50.00

Available Foundation Types:

Walkout Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	1183 sq ft

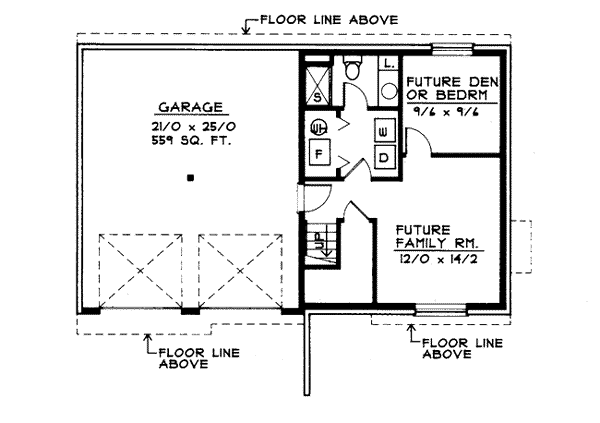

Lower Living Area:	533 sq ft

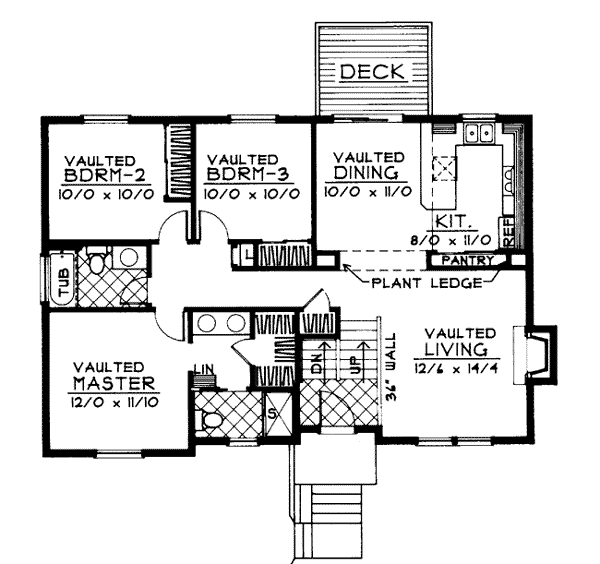

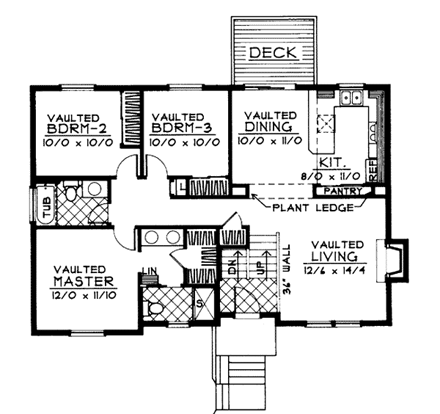

Main Living Area:	1183 sq ft
Garage Area:	559 sq ft
Garage Type:	Drive Under
Garage Bays:	2
Foundation Types:	Walkout Basement
Exterior Walls:	2x6
House Width:	42'
House Depth:	29'
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Max Ridge Height:	22'4 from Front Door Floor Level
Primary Roof Pitch:	4:12
Roof Load:	35 psf
Roof Framing:	Truss
Porch:	27 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	8'

* May require additional drawing time.

What's Included?

ELEVATIONS: Drawn @ 1/4" = 1'-0" include: Material labels, Floor to floor heights, Roof slope indicators, Attic ventilation notes

FLOOR PLANS: Drawn @ 1/4" = 1'-0" scale, include: All post and beam sizes and locations, Door and window sizes, Complete and accurate dimensions, Room labels and interior room sizes Electrical layout, All code related notes, Building Section markers, Floor joist size, spacing and direction

FOUNDATION or BASEMENT PLAN: Drawn @ 1/4" = 1'-0" scale, include: All post and beam sizes and locations, All foundation wall and footing sizes, Complete and accurate dimensions, All code related notes, Building Section markers, Floor and deck joist size, spacing and direction, Rough-in bath location (if applicable), Mechanical equipment location, Electrical layout, Door and window sizes

ROOF FRAMING PLAN Drawn @ 1/4" = 1'-0", includes: All Beam and header sizes and locations, Individual rafter and/or roof truss locations, Special truss locations (i.e. hip-masters, girder trusses, etc.), Beam or truss hangers indicated, Point load locations indicated, Building Section markers, All code related notes, All necessary notes pertaining to the structural system

BUILDING SECTIONS Drawn @ 1/4" = 1'-0" scale, include: Beam sizes, connections, and locations, Floor joist size and spacing, Roof trusses/rafters sizes and spacing, Floor to floor heights, Non-typical plate heights indicated

TYPICAL WALL SECTIONS Drawn @ 1/2" = 1'-0" scale, include: All labels indicating wall construction, Foundation wall thickness and reinforcing, Insulation type and thickness

MISCELLANEOUS NOTES AND DETAILS Miscellaneous framing details, Stairway details, Miscellaneous framing details, General Notes page covering all current UBC requirements for homes

Modifications

Want to make changes to a house plan at Family Home Plans?

We cannot provide modification estimates for this plan. Sorry for the inconvenience. Your builder may be able to "redline" in the changes you would like to make to the printed sets.

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.

FHP Low Price Guarantee

If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
