Multi-Family Plan 90888

• PDF File: $1,750.00
• 5 Sets plus PDF File: $2,000.00
• CAD File: $2,245.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $125.00
• Right Reading Reverse: $200.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $55.00

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : No Additional Fee
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	4456 sq ft
Lower Living Area:	874 sq ft
Main Living Area:	1354 sq ft
Unfinished Basement Area:	895 sq ft
Garage Area:	496 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Basement Crawlspace Slab
Exterior Walls:	2x6
House Width:	64'
House Depth:	52'
Number of Stories:	2
Bedrooms:	10
Full Baths:	6
Max Ridge Height:	30'6 from Front Door Floor Level
Primary Roof Pitch:	5:12
Roof Framing:	Unknown
Porch:	118 sq ft
Deck:	154 sq ft
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Excellent Family Duplex

The features in this classic duplex make for an excellent family home with all the amenities. Each side features unique layout options that can easily be incorporated in either unit. The area per unit is as follows: Lower Floor - 874 sq.ft.; Upper Floor – 1354 sq.ft.; Garage – 496 sq.ft.; Covered Porch – 118 sq.ft.; Covered Deck – 154 sq.ft.; Optional Basement: 895 sq.ft.

Square footage calculations are based on total heated space only and will NOT include garages, porches or exterior storage areas. These plans will include ALL of the following:

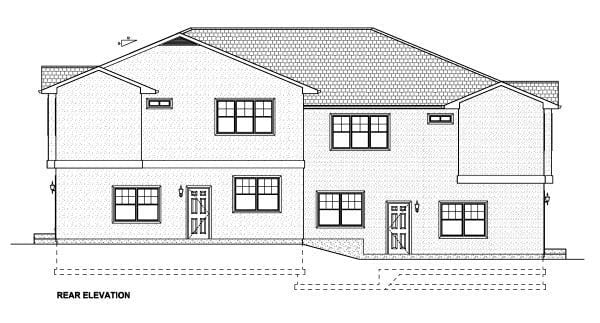

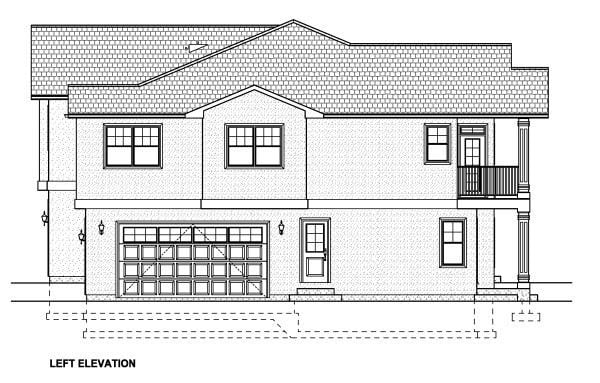

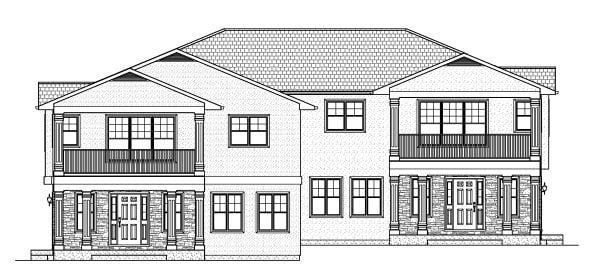

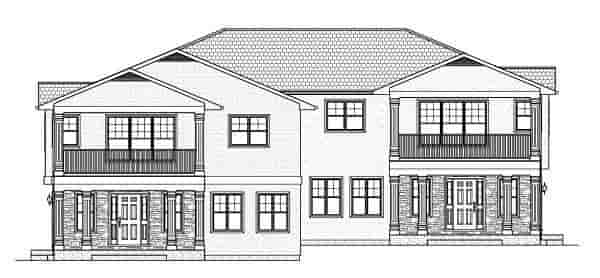

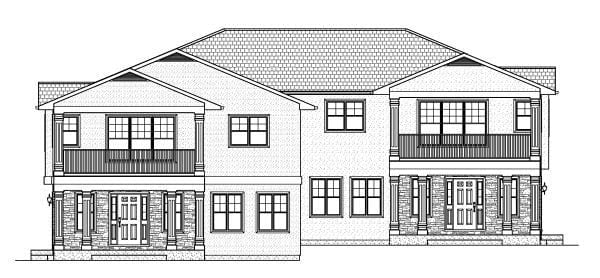

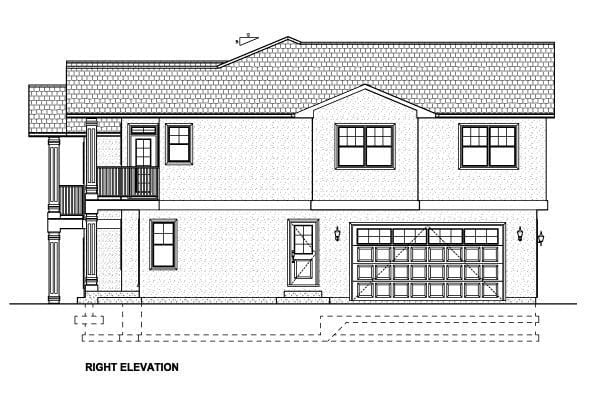

Exterior Elevation

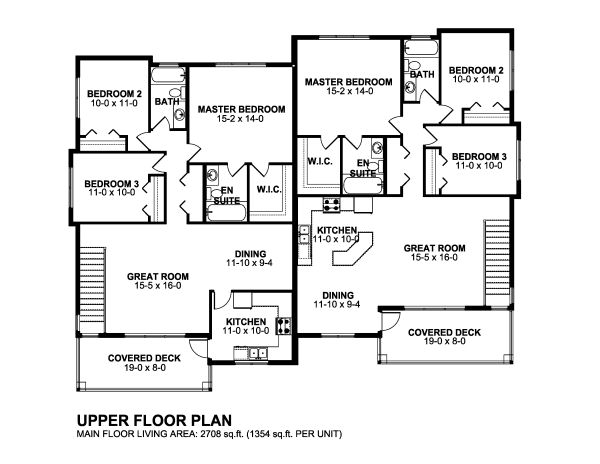

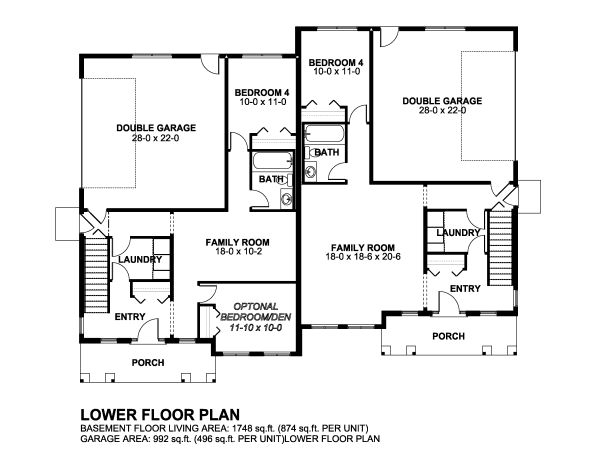

Detailed Floor Plans

Foundation Plan

Stair Details

Location of Electrical, Plumbing and Heating Fixtures

Cover Sheet

Full Cross Section showing ceiling height and wall details

Roof Plan

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!
