3 Car Garage Apartment Plan 90941
3 Car Garage Apartment with 2 Bed, 1 Bath
click for more images
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 880 sq ft |
| Upper Living Area: | 880 sq ft |
| Garage Area: | 988 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 38' |
| House Depth: | 26' |
| Number of Stories: | 2 |
| Bedrooms: | 2 |
| Full Baths: | 1 |
| Max Ridge Height: | 25'5 from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Framing: | Unknown |
| 2nd Floor Laundry: | Yes |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 8' |
Plan Description

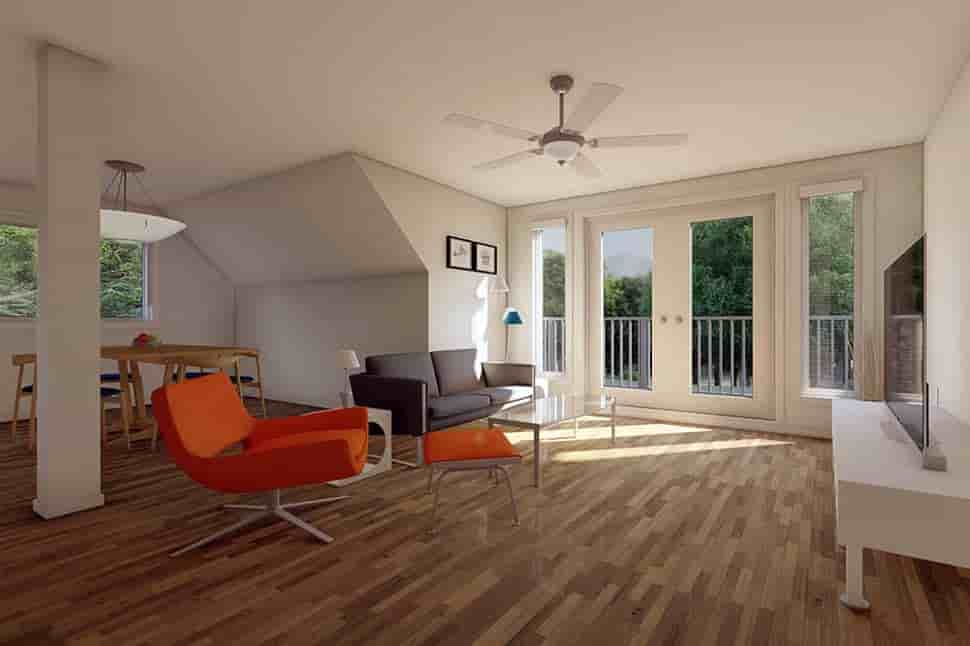

The two bedroom suite over this three car garage is excellent for year round living or for use as guest accommodations. The exterior staircase allows access to the suite without entry through garage for the option of renting. The deck off the front of the loft gives the living area a sunny open feeling.
What's Included?
Exterior Elevation
Detailed Floor Plans
Foundation Plan
Stair Details
Location of Electrical, Plumbing and Heating Fixtures
Cover Sheet
Full Cross Section showing ceiling height and wall details
Roof Plan
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: The plan was first built in 2006. As with all stock plans, these plans are designed to meet the general requirements of all building codes, however each state, province or municipality may have it’s own unique requirements, so there may be a need to have a local designer review the plans. We do not check our plans to see which states they do or do not comply with, however they are check against the IRC, which is the building code standard in most of the United States.
A: Bedroom closets are not required in all building codes in North America, these plans were designed without closets in the bedrooms. Closets would need to be added to the design either by the home owner or we could add them but there would be a modification fee.
A: The plans are designed to meet most of the requirements of the IRC (US) and the NBCC (Canada), however each state, province, and territory has its own specific requirements and it is not possible to design the plans to meet all requirements. Therefore, as with all stock plans, you may be required to have a local design professional review the plans and add any extra notes or details prior to submitting for permit.
The plans are not stamped by an engineer.
The plans have been designed for a 50lb roof snow load.
A: The plans are full structural plans ready to be submitted for permits, however, depending where you live you may or may not require a local professional review, this is not included.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.
Elevation

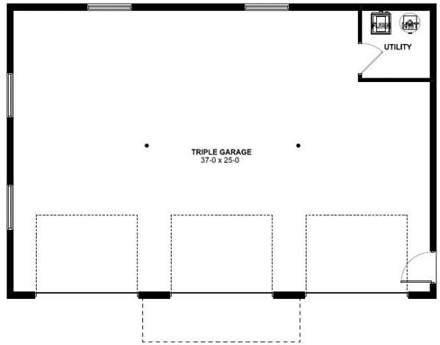

Level One

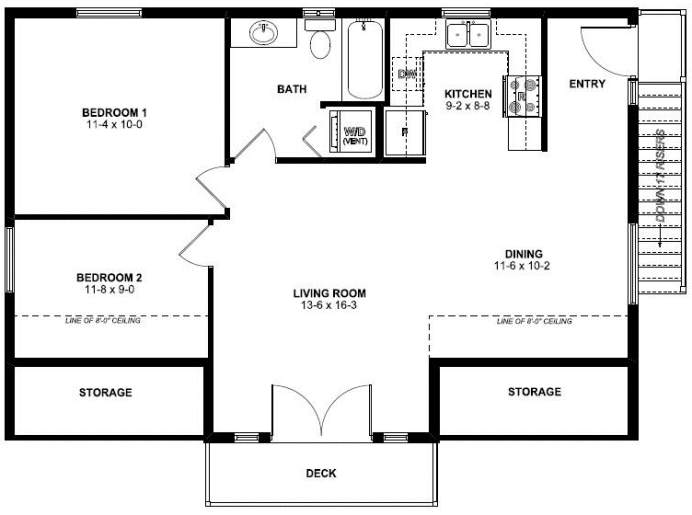

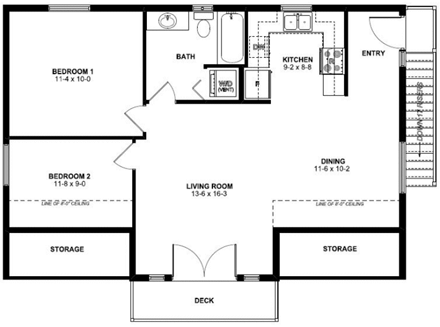

Level Two
Quick Specs
880 Total Living Area880 Upper Level
2 Bedrooms
1 Full Baths
3 Car Garage
38' W x 26' D
Quick Specs
880 Total Living Area2 Bedrooms
1 Full Baths
3 Car Garage
38' W x 26' D
Rear Elevation
Photographs may show modified designs.
