Total Living Area:	1377 sq ft
Main Living Area:	981 sq ft
Upper Living Area:	396 sq ft
Garage Type:	None
See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.
Foundation Types:	Basement
Exterior Walls:	2x4 2x6
House Width:	40'
House Depth:	50'
Number of Stories:	2
Bedrooms:	3
Full Baths:	2
Primary Roof Pitch:	0
Roof Load:	40 psf
Roof Framing:	Truss
Porch:	151 sq ft
FirePlace:	Yes
Main Ceiling Height:	8'
Upper Ceiling Height:	8'

* May require additional drawing time.

Plan Description

A roof garden is the highlight of this Southwestern design. The large living room has a corner fireplace and accesses the rear patio, which has a fire pit for barbecues. The kitchen is almost completely surrounded by counters and easily accesses the dining room. Separating the two is a convenient snack bar. For more quiet times, the secondary bedrooms share the main-level right wing, while the master suite rests on the upper level, connected to the garden. This home is designed with a basement foundation.

What's Included?

Foundation plan - Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

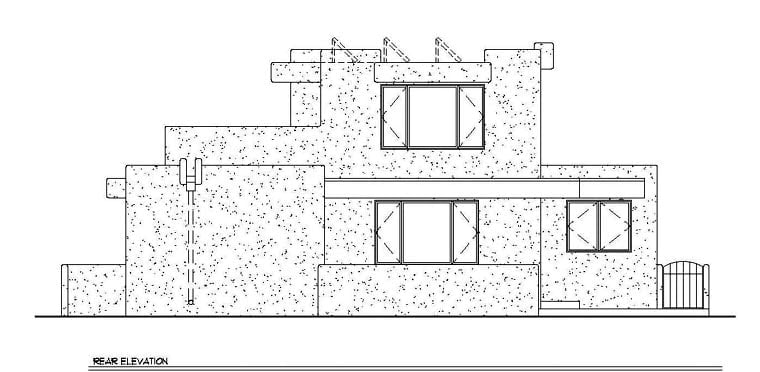

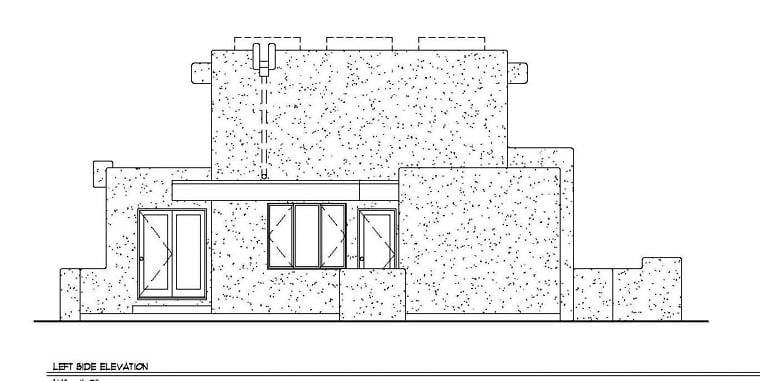

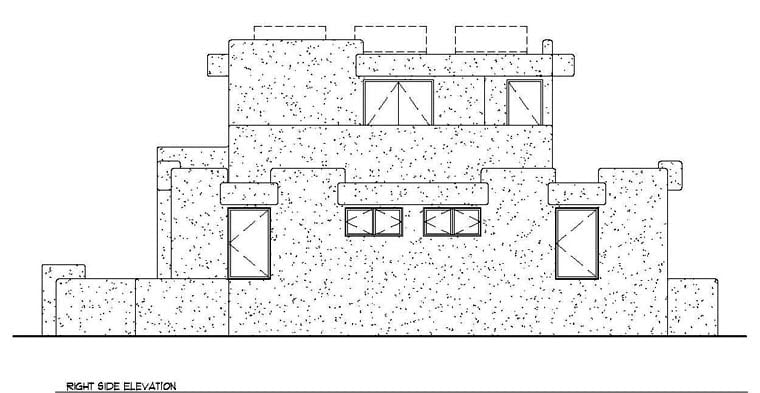

Exterior Elevations - A blueprint picture of all four sides showing exterior materials and measurements.

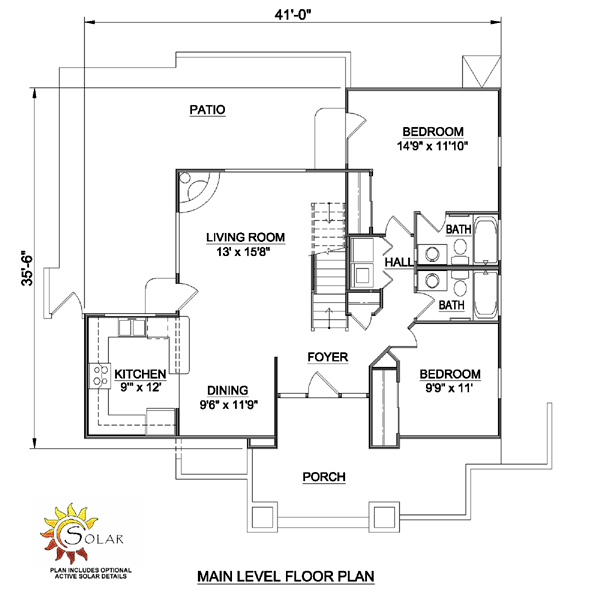

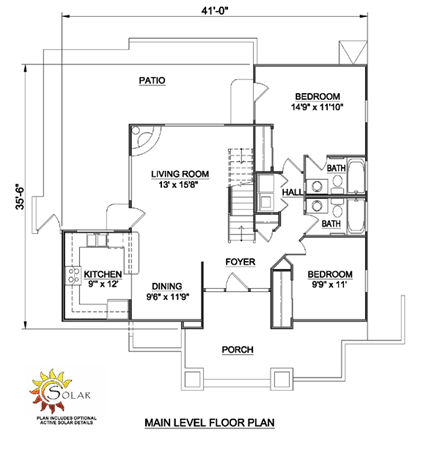

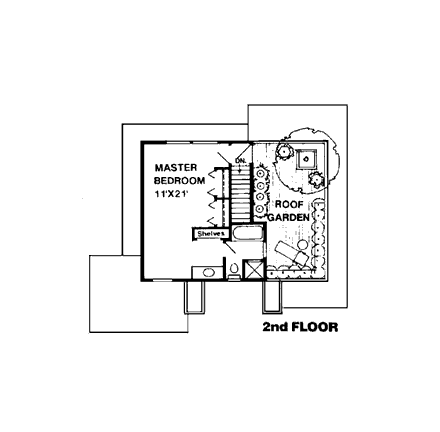

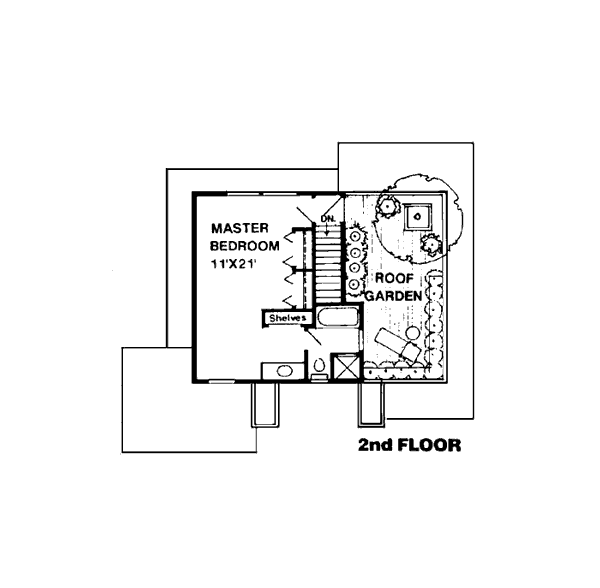

Floor plans - Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.

Cross Section - A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

Interior Elevations - Detailed drawings of kitchen cabinet elevations and other elements as required.
