2 Car Garage Apartment Plan 94343
2 Car Garage Apartment with 1 Bed, 1 Bath | Plan 94343
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 422 sq ft |
| Upper Living Area: | 422 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 2x6 |
| House Width: | 26' |
| House Depth: | 22' |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 20' from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Stick |
| Main Ceiling Height: | 8' |
What's Included?
Exterior Elevations - A blueprint picture of all four sides showing exterior materials and measurements.

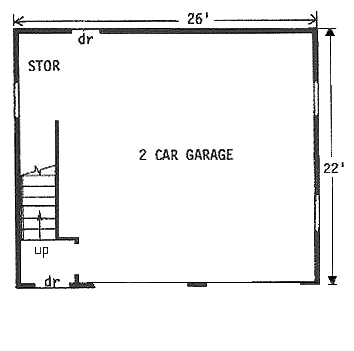

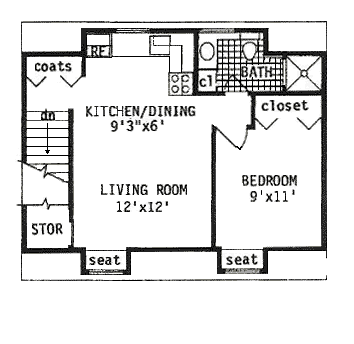

Floor plans - Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section - A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations - Detailed drawings of kitchen cabinet elevations and other elements as required.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: snow load: 30 psf ground loft without apartment is available.
A: The garage doors are 8'x7'
A: Upper Level - 449 SF. Lower Level - 572 SF.
A: Depending on the location of the project and quality of materials the cost for the apartment only would be around $60.00 – $90.00 per S.F.
A: The drawing set consists of six sheets containing the general notes, foundation plan, foundation details, floor plan, optional upper level floor plan, exterior elevations, interior elevations cross section, framing details, floor and roof framing plans, electrical plans, and optional solar details. Yes you can purchase a material list for this plan, and you can buy a study plan for this project.
A: The height of the main garage level is 8' from the top of the foundation. The floor joists are 2x12 douglas fir spaced 12" o.c., you can use TJI/210 11 7/8" spaced 16" o.c. The foundation is designed as a monolithic slab.
A: The rear elevation has a shed dormer with windows in the kitchen and the bath. The lower level has two windows on the right side.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
