3 Car Garage Apartment Plan 94348
3 Car Garage Apartment with 1 Bed, 1 Bath | Plan 94348
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 554 sq ft |
| Upper Living Area: | 554 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 |
| House Width: | 32' |
| House Depth: | 22' |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 19'6 from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Unknown |
What's Included?

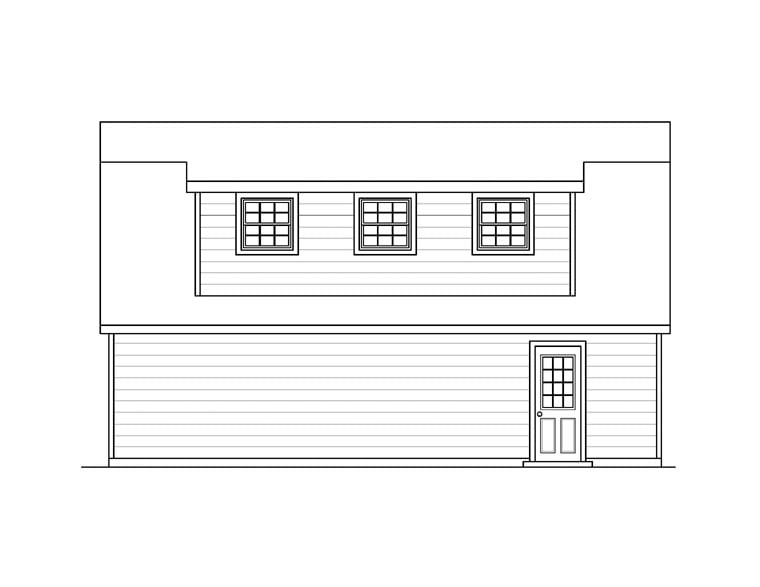

Exterior Elevations - A blueprint picture of all four sides showing exterior materials and measurements.

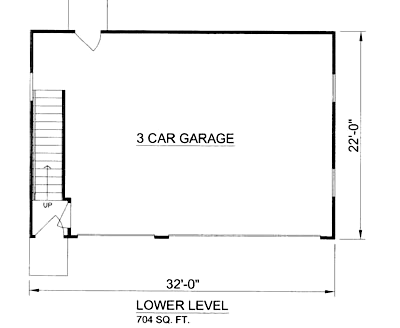

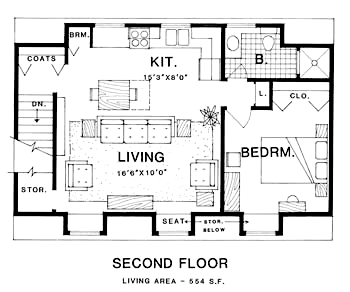

Floor plans - Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section - A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations - Detailed drawings of kitchen cabinet elevations and other elements as required.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: YES
A: The ceiling does have a slight vault. There is a small attic area but it is not suitable for storage.
A: This plan has a standard unfinished upper floor & an OPTIONAL finished upper floor. The finished upper foor plan can be crossed out or otherwise noted not to be constructed.
A: The ceiling height is 8'-0"
A: The storage space would not be large enough for a stacked washer/dryer, the water heater and water softner should be on the first floor.
A: There is no pantry in the kitchen, you can place a stacked unit where the broom closet is. The plans should indicate this when they are submmited for permit.
A: The furnace and water heater would be placed behind the stairs on the lower level next to the rear door.
A: You can put a stacked washer/dryer in the area tagged as a broom closet.
A: No, the plans indicate size of framing members and direction of span; also there are framing details and cross section.
A: The ridge height is 19’-6” from the top of the foundation, and you can install over head doors in the rear wall for vehicles.
A: The upper level floor is clear span framed with 11 7/8" TJI/360 joists at 12" o.c.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
