Multi-Family Plan 94480
Traditional Style with 4 Bed, 2 Bath | Plan 94480
sq ft
1768beds
4baths
2bays
0width
52'depth
34'
Plan Pricing from $1,090.00
Plan Pricing
Additional Notes
This traditional duplex features two bedrooms and a full bath in each unit. The covered front porch is partitioned fr a sense of privacy for each unit. the large living room flwos into the seperate dining area. A U-shaped kitchen with snack bar overlooks the dining area. The laundry is conviently locatd in the bedroom area. The two large bedrooms feature generous closet space.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1768 sq ft |
| Main Living Area: | 884 sq ft |
| Garage Type: | None |
| Foundation Types: | Crawlspace Slab |
| Exterior Walls: | 2x4 2x6 |
| House Width: | 52'0 |
| House Depth: | 34'0 |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 2 |
| Max Ridge Height: | 19'0 from Front Door Floor Level |
| Primary Roof Pitch: | 6:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Truss |
| Porch: | 81 sq ft |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 8'0 |
What's Included?
Foundation plan - Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations - A blueprint picture of all four sides showing exterior materials and measurements.
Floor plans - Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section - A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations - Detailed drawings of kitchen cabinet elevations and other elements as required.
Exterior Elevations - A blueprint picture of all four sides showing exterior materials and measurements.
Floor plans - Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section - A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations - Detailed drawings of kitchen cabinet elevations and other elements as required.
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
Q: Does the wall assembly between the dwelling units meet/exceed a 1-hour fire resistance rating where tested in accordance with ASTM E119 or UL 263?
A: Yes
Q: Do you have a floor plan of this same style which would have 3 bedrooms for each side and do you have one of the same style which would include a backdoor?
A: The one I could suggest is plan 94482
Common Q & A
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
Photographs may show modified designs.

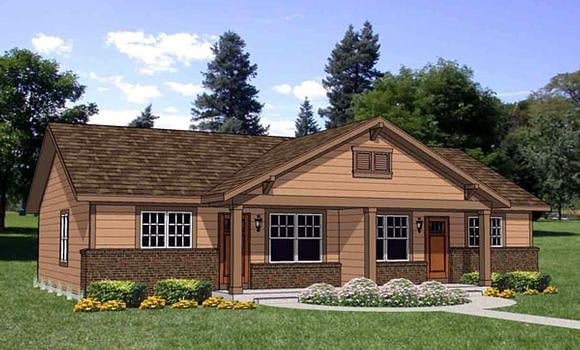

Elevation

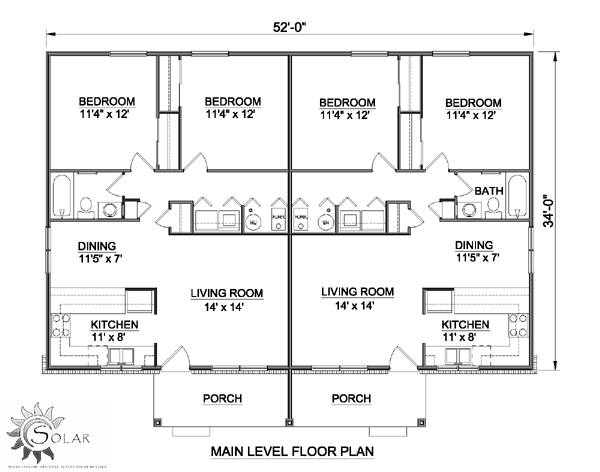

Level One
Quick Specs
1768 Total Living Area884 Main Level
4 Bedrooms
2 Full Baths
52'0 W x 34'0 D
Quick Specs
1768 Total Living Area4 Bedrooms
2 Full Baths
52'0 W x 34'0 D
