Plan Pricing from $1,270.00

Plan Pricing

PDF File: $1,270.00
5 Sets: $1,110.00
5 Sets plus PDF File: $1,520.00
CAD File: $1,670.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $250.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $50.00

Additional Notes

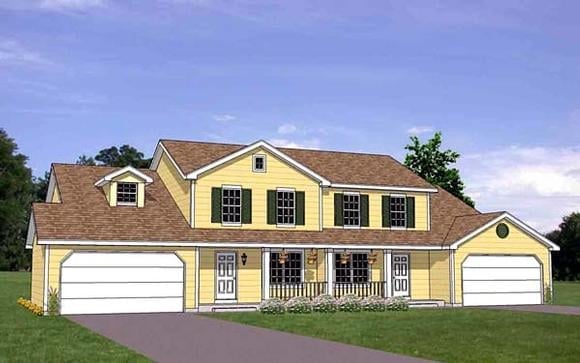

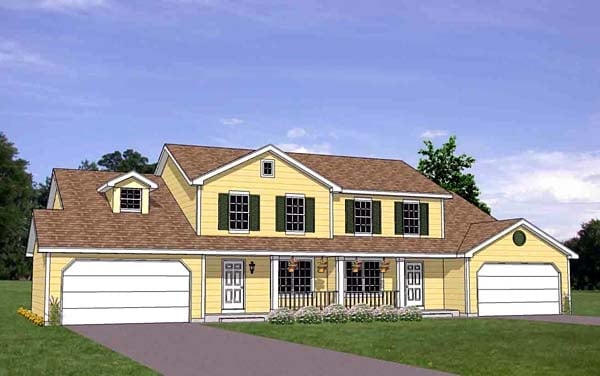

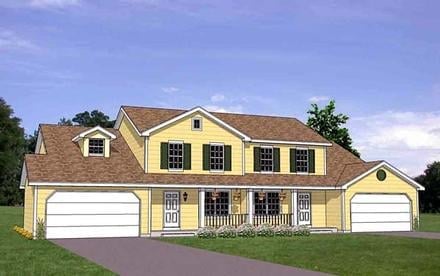

2nd unit is 1611 sq. ft. and garage is 419 sq ft. Unit A features four bedrooms, two full baths and one half bath. Unit B features four bedrooms, two full baths and one half bath. the large living room flows into the separate dining area. The large country kitchen is complete with a breakfast nook for informal meals. Laundry closet is conveniently located int he kitchen area. Large master bedroom complete with private bath and walk-in closet

Available Foundation Types:

Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.
Crawlspace : No Additional Fee
Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee
2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	3253 sq ft
Main Living Area:	1642 sq ft
Garage Area:	380 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Basement Crawlspace Slab
Exterior Walls:	2x4 2x6
House Width:	80'0
House Depth:	34'0
Number of Stories:	2
Bedrooms:	8
Full Baths:	2
3/4 Baths:	2
Half Baths:	2
Max Ridge Height:	26'0 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Load:	30 psf
Roof Framing:	Truss
Porch:	80 sq ft
Main Ceiling Height:	8'
Upper Ceiling Height:	8'

* May require additional drawing time.

Plan Description

This designer offers solar energy options with their plans

What's Included?

Foundation plan - Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

Exterior Elevations - A blueprint picture of all four sides showing exterior materials and measurements.

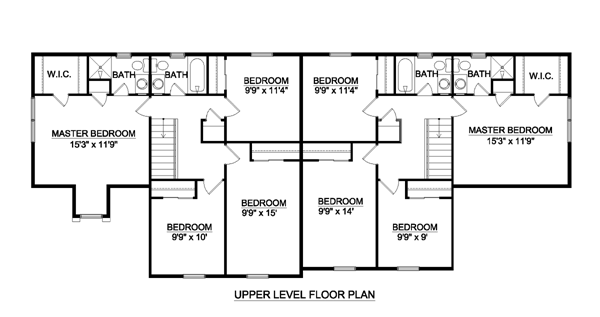

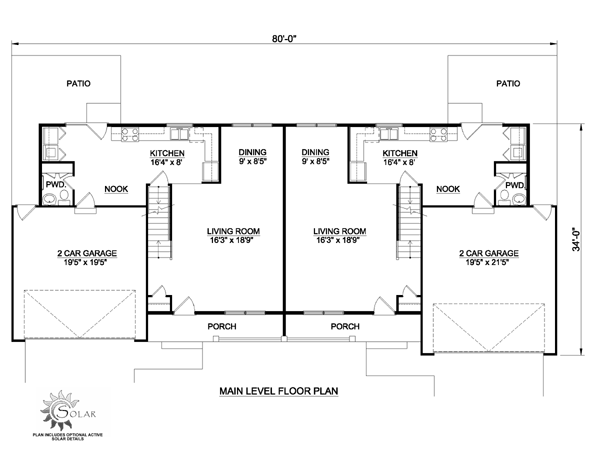

Floor plans - Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.

Cross Section - A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

Interior Elevations - Detailed drawings of kitchen cabinet elevations and other elements as required.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Q & A

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
