Multi-Family Plan 94484
Traditional Style with 10 Bed, 6 Bath
sq ft
4694beds
10baths
6bays
0width
115'depth
37'
click for more images
Plan Pricing
Additional Notes
Units B,C,D, and E are 864 sq ft. Units A and F have one bedroom and one full bath. Units B,C,D and E have two bedrooms and one full bath. The large living room flows into the dining area. The kitchen with snack bar opens to the dining area. Laundry closet is conveniently located in the kitchen area. Large bedrooms with ample closet space.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 4694 sq ft |
| Main Living Area: | 619 sq ft |
| Garage Type: | None |
| Foundation Types: | Crawlspace Slab |
| Exterior Walls: | 2x4 2x6 |
| House Width: | 114'8 |
| House Depth: | 37'0 |
| Number of Stories: | 2 |
| Bedrooms: | 10 |
| Full Baths: | 6 |
| Max Ridge Height: | 25'10 from Front Door Floor Level |
| Primary Roof Pitch: | 6:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Truss |
| Porch: | 53 sq ft |
| Main Ceiling Height: | 8' |
| Upper Ceiling Height: | 8' |
What's Included?
Exterior Elevations - A blueprint picture of all four sides showing exterior materials and measurements.
Floor plans - Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section - A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations - Detailed drawings of kitchen cabinet elevations and other elements as required.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Previous Q & A
A: Upper level: 1853 SF. Lower level: 3168 SF. Porches: 281 SF. Patios: 134 SF.
A: The square footage is as follows:
Unit A, & F: 637 s.f.
Unit B: 893 s.f.
Unit C: 999 s.f.
Unit D: 888 s.f.
Unit E: 935 s.f.
A: Yes the design has egress windows and the heat system is forced air
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

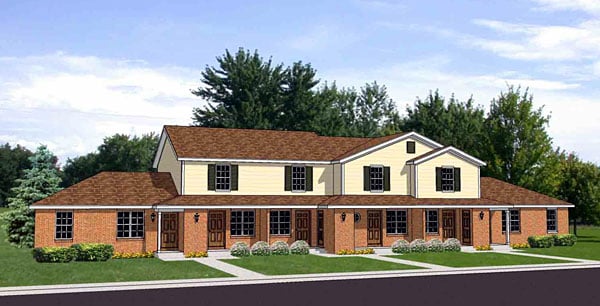

Elevation

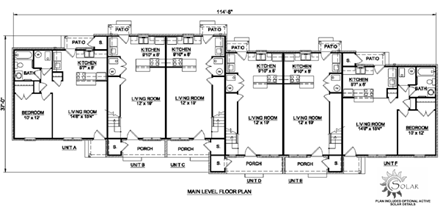

Level One

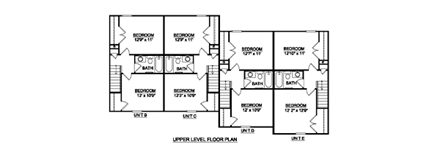

Level Two
Quick Specs
4694 Total Living Area619 Main Level
10 Bedrooms
6 Full Baths
114'8 W x 37'0 D
Quick Specs
4694 Total Living Area10 Bedrooms
6 Full Baths
114'8 W x 37'0 D
Pricing
PDF File: $1,330.005 Sets: $1,170.00
5 Sets plus PDF File: $1,580.00
CAD File: $1,730.00
more info
Buy This Plan
Have any Questions? Please Call 800-482-0464 and our Sales Staff will be able to answer most questions and take your order over the phone. If you prefer to order online click the button below.
Add to cart
