Plan Pricing from $575.00

Plan Pricing

PDF File: $575.00
1 Set: $575.00 **
5 Sets: $625.00
8 Sets: $665.00
Reproducible Set: $625.00
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
Materials List: $125.00
Right Reading Reverse: $150.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $50.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Additional Notes

CAD file, if ordered, will take 7-10 business days to fulfill.

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	713 sq ft
Main Living Area:	362 sq ft
Upper Living Area:	351 sq ft
Garage Area:	497 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	38'8
House Depth:	40'4
Number of Stories:	2
Bedrooms:	1
Full Baths:	1
Half Baths:	1
Max Ridge Height:	25' from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Load:	30 psf
Roof Framing:	Truss
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

What's Included?

Foundation: This shows the layout of the basement, crawl space, or slab foundation.

Floor Plans: Placement of walls, windows, doors, plumbing fixtures, electrical outlets, beams, etc..

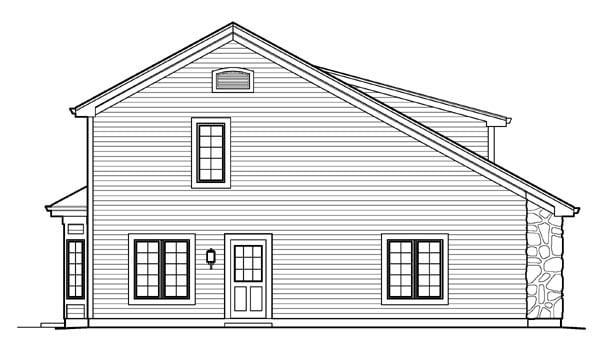

Exterior Elevations: Illustrates the front, rear, and sides of the house, in detail, including instructional notes such as materials, roof pitch, ceiling heights, etc.

Interior Elevations: Views of special interior elements such as kitchen & bath cabinets, fireplaces, etc.

Cross Section: Views of areas such as load-bearing walls, stairs, trusses, or other structural elements.

Details: How to construct certain parts of your home, such as the roof system, stairs, or deck.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: Is there a possibility to make either attic space useable?

A: The attic space is done with trusses. This can be turned into usable space but they customer will have to have the plans engineered locally to a useable space.

Q: Do you have a CAD file for this plan, and what is the cost?

A: Yes, there is a CAD file available for this plan, but there will be a 48 hour delay due to updates done to the plan. The price for the CAD File is $1,100

Q: What is the ceiling height of the rv garage? What is the height of the rv garage opening?

A: What is the ceiling height of the rv garage? 13’ – 4” What is the height of the rv garage opening? 12 x 12

Q: Is there room for a second bedroom over garage?

A: Thank you for your inquiry. Our designer looked at the plan and did not see how that could be done without sacrificing the upper portion of the high bay garage space to the right of the living quarters. However, if you would like to make modifications, I can refer you to our modification department at [email protected] or by calling 1-888-355-5728.

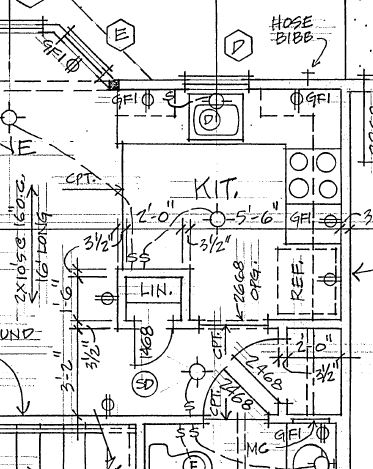

Q: In the kitchen area, what is the squared off area marked L? It is for laundry? If so, it would have to be stackable. thank you

A: The L is indicating a Linen closet.

View Attached File

Q: What is the garage door opening dimensions for both sides?

A: RV Attached, Front Entry Overall Size: 16'-2" x 31'-2" Door Size: 12x10 2-Car Attached, Front Entry Overall Size: 21'-4" x 23'-8" Door Size: 18x8

Q: Could a portion of the attic space be turned in living space? Will the ceiling height allow? Windows in the front upper level offer light to the attic space it appears...correct? Thank you

A: Yes, dormer will allow light into the attic space. There should be an 11’-0” deep space by 21 feet long with an 8’-0”+/- ceiling in the attic above 2 car garage.

Q: what is the height of the RV side?

A: The ceiling height on the RV side is 13’-4”.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
