Plan Pricing from $1,270.00

Plan Pricing

PDF File: $1,270.00
5 Sets plus PDF File: $1,520.00
CAD File: $1,765.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
Materials List: $125.00
Right Reading Reverse: $200.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $55.00

Available Foundation Types:

Crawlspace : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	2212 sq ft
Main Living Area:	547 sq ft
Upper Living Area:	559 sq ft
Garage Type:	None
Foundation Types:	Crawlspace
Exterior Walls:	2x6
House Width:	20'
House Depth:	56'
Number of Stories:	2
Bedrooms:	6
Full Baths:	4
Max Ridge Height:	22'8 from Front Door Floor Level
Primary Roof Pitch:	0
Roof Framing:	Unknown
Main Ceiling Height:	9'
Upper Ceiling Height:	9'

Plan Description

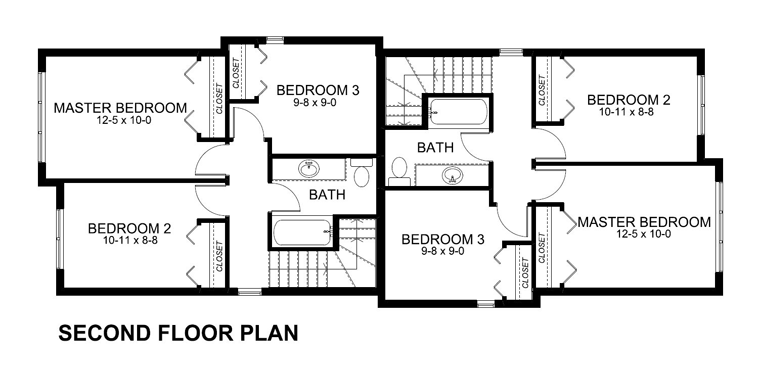

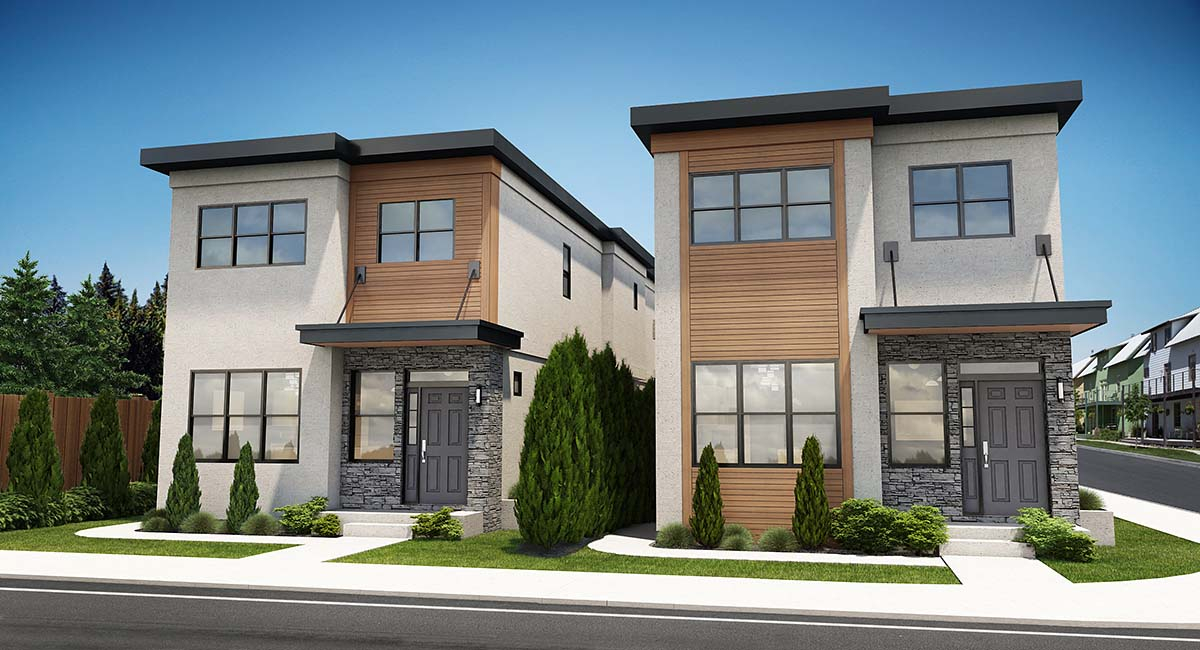

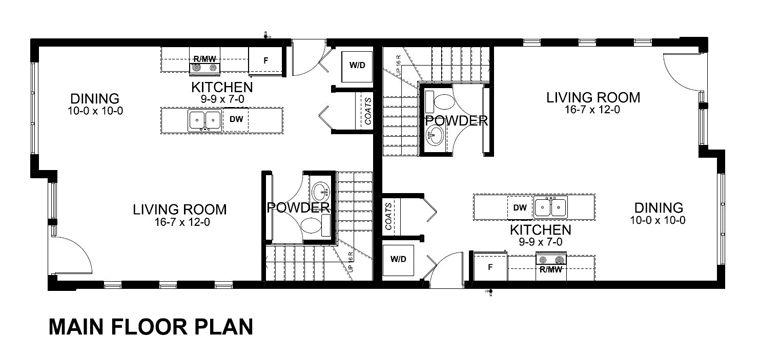

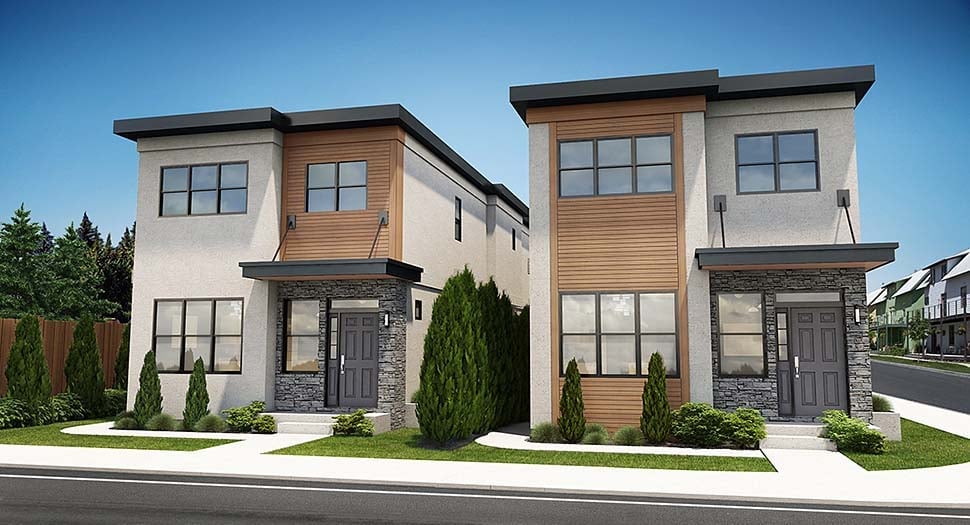

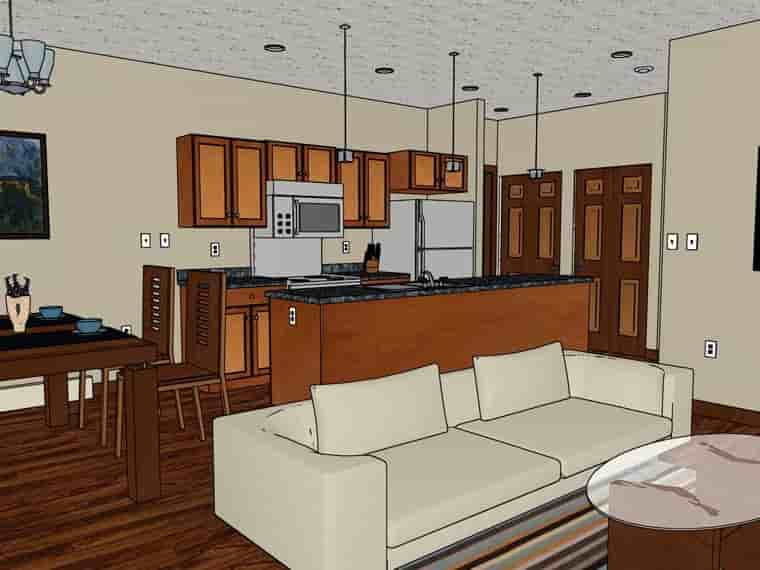

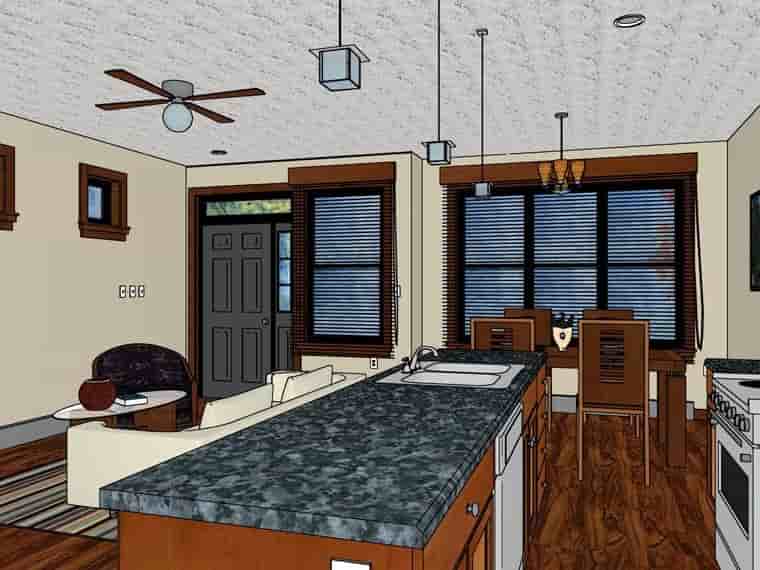

This contemporary narrow lot duplex features an open living area and three bedrooms all in a compact design. The width of the building is 20’-0” at the foundation with two 1’-0” cantilevers on the second floor for a width of 22’-0”. For multiple duplex projects an alternate exterior plan is available. Main Floor Area per unit is 546.5 sq.ft., Second Floor Area per unit is 559.5 sq. ft. Finished area of entire building is Main Fl. 1093 sq. ft. plus Second Fl. 1119 sq. ft. for a total finished area of 2212 sq. ft.

What's Included?

Square footage calculations are based on total heated space only and will NOT include garages, porches or exterior storage areas. These plans will include ALL of the following:

Exterior Elevation

Detailed Floor Plans

Foundation Plan

Stair Details

Location of Electrical, Plumbing and Heating Fixtures

Cover Sheet

Full Cross Section showing ceiling height and wall details

Roof Plan

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Q & A

Previous Q & A

Q: Wondering if this unit is designed to accommodate a central air system. Thanks!

A: Yes, the mechanical is in the crawlspace with access under the stairs through the powder room. Clients have also installed suspended air handlers in the powder room by dropping the ceiling there and having a heat pump outside.

Q: Will you sell the materials list prior to the plan purchase? I would like to price out the materials to see if it's affordable.

A: Yes, we do. It is emailed to you. Please call Bonnie to place the order. 800-482-0464 ex 405

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
