Multi-Family Plan 98884

• PDF File: $903.00
• 1 Set: $798.00 **
• 5 Sets: $1,008.00
• 8 Sets: $1,113.00
• Reproducible Set: $1,113.00
• CAD File: $1,806.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Additional Sets: $60.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2254 sq ft
Main Living Area:	1127 sq ft
Garage Type:	None
Foundation Types:	Basement
Exterior Walls:	2x6
House Width:	48'
House Depth:	51'
Number of Stories:	1
Bedrooms:	6
Full Baths:	2
3/4 Baths:	2
Max Ridge Height:	25' from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Unknown
1st Floor Master:	Yes
Main Ceiling Height:	8'

* May require additional drawing time.

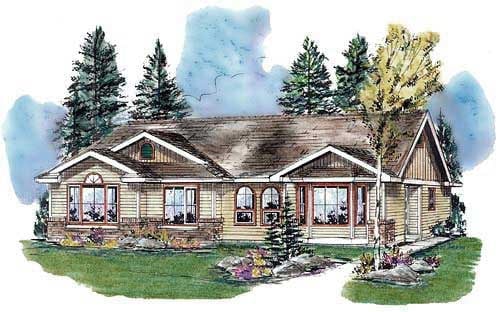

Cover Sheet Landscaped architectural rendering of the exterior help the owner/builder visualize the new home completed.

Foundation Plan 1/4 inch scale basement and foundation plans with all necessary dimensions and notations.

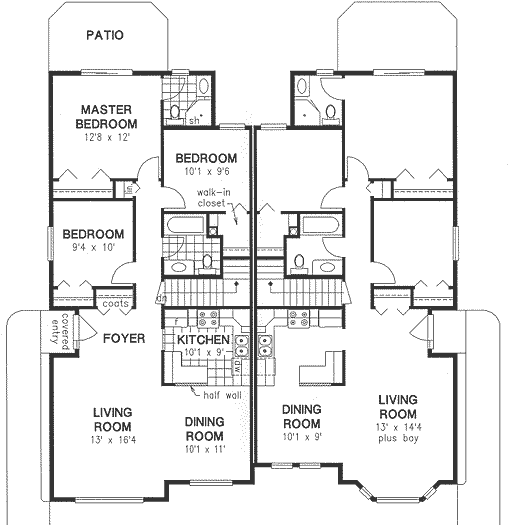

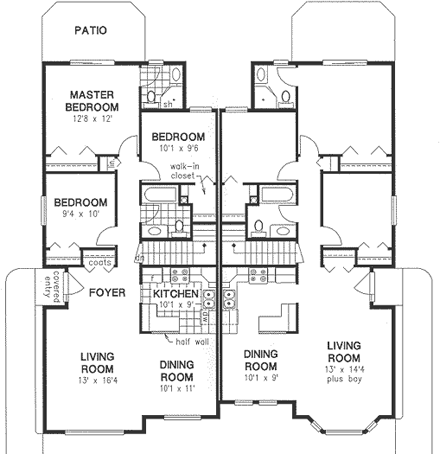

Floor Plans Detailed 1/4 inch scale main and upper story plans with complete dimensions. Floor plans also include room sizes, detail cross section keys and location of plumbing fixtures.

Electrical Schematic Plans 3/16 inch scale electrical plans showing light fixtures, switches and plug locations.

Cross Sections 1/4 inch scaled sections of the foundation, interior and exterior walls, floor and roof details for design and construction methods.

Site Plan A stock plot plan with a detailed aerial view of the home situated on a rectangular lot is provided.

Exterior Elevations 1/4 inch scale exterior elevation drawings of the front, rear and both sides of the house. These drawings show window and door locations as well as general material specifications.

All plans are drawn with 2x6 exterior walls.

Lumber, windows, doors, nails, insulation and trims. No HVAC or electrical wiring included.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
