3 Car Garage Plan 99933

• PDF File: $1,095.00
• 5 Sets plus PDF File: $1,345.00
• CAD File: $1,595.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $125.00
• Right Reading Reverse: $200.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $55.00

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	618 sq ft
Main Living Area:	618 sq ft
Garage Area:	1282 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	50'
House Depth:	38'
Number of Stories:	1
Half Baths:	1
Max Ridge Height:	18'5 from Front Door Floor Level
Primary Roof Pitch:	4:12
Roof Framing:	Unknown
Main Ceiling Height:	10'

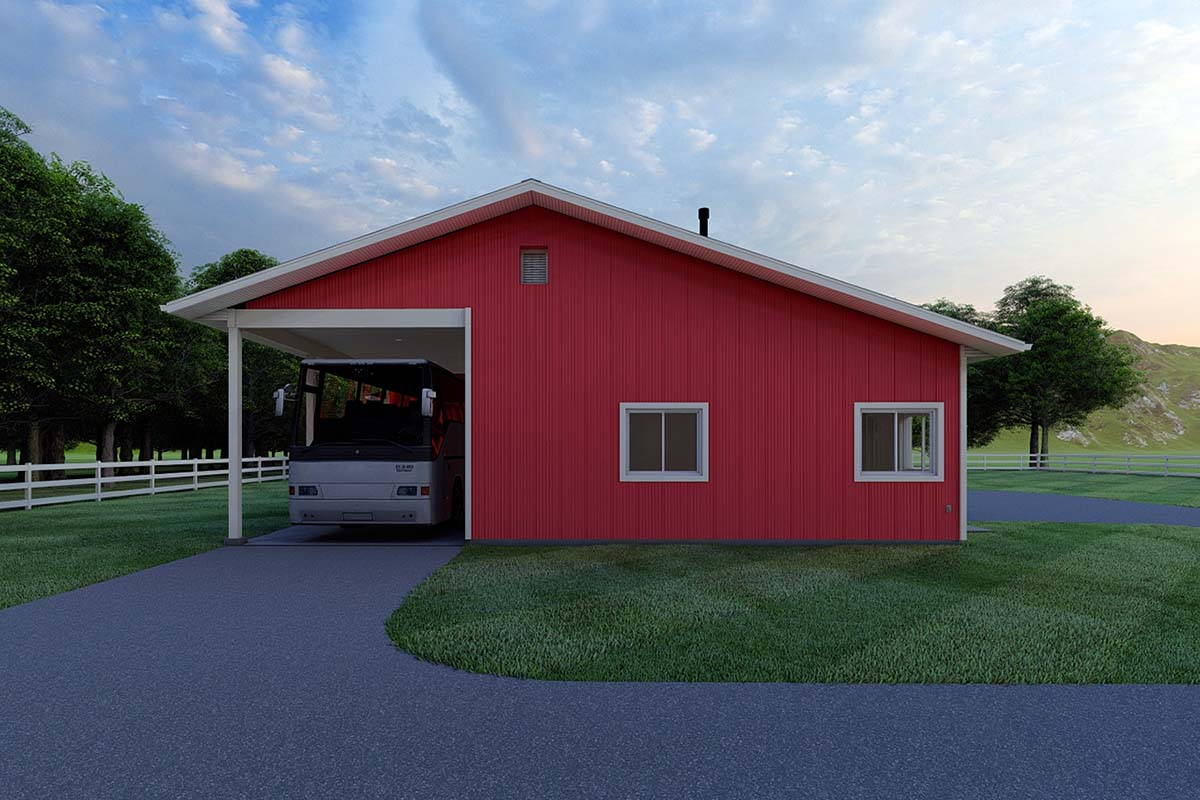

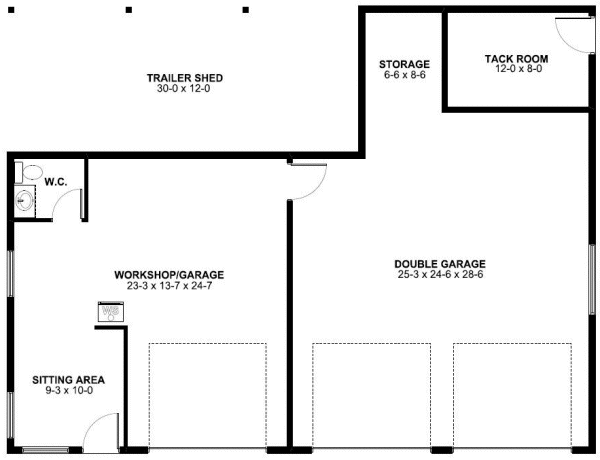

The single bay and workshop in this farm building is perfect for working on and maintaining all your equipment, the two bays in the garage have extended depth for parking as well as a storage area and tack room. The 12’-0” ceiling in the trailer shed at the rear is ideal for parking either trailers, tractors, or boats.. Workshop & Gargae Area: 618 sq. ft. / Double Garage Area: 907 sq. ft. / Carport Area: 375 sq. ft.

Square footage calculations are based on total heated space only and will NOT include garages, porches or exterior storage areas. These plans will include ALL of the following:

Exterior Elevation

Detailed Floor Plans

Foundation Plan

Stair Details

Location of Electrical, Plumbing and Heating Fixtures

Cover Sheet

Full Cross Section showing ceiling height and wall details

Roof Plan

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A
