Multi-Family Plan 99966

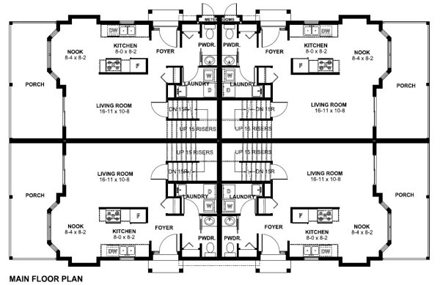

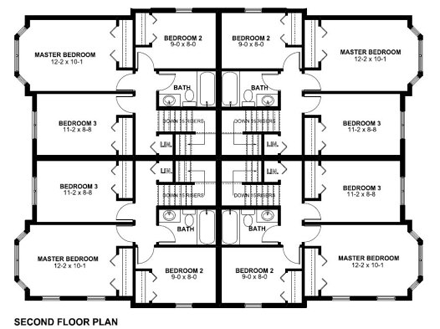

This compact four unit townhouse will fit your needs in many small lot situations while giving all the amenities of larger units. Three bedrooms and a bathroom upstairs and all the living on the main floor with its own powder room and laundry make for a comfortable home. Floor Areas are as follows; Main Floor: 2170 sq. ft. (543 per unit) Second Floor: 2205 sq.ft. (551 per unit) Deck Area: 578 sq.ft. (144 per unit)

• PDF File: $1,750.00
• 5 Sets: $1,875.00
• 5 Sets plus PDF File: $2,000.00
• CAD File: $2,245.00
  Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $105.00
• Right Reading Reverse: $200.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $55.00

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	4375 sq ft
Main Living Area:	543 sq ft
Upper Living Area:	551 sq ft
Garage Type:	None
Foundation Types:	Basement Crawlspace
Exterior Walls:	2x6
House Width:	41'9
House Depth:	70'1
Number of Stories:	2
Bedrooms:	12
Full Baths:	4
Half Baths:	4
Max Ridge Height:	33'3 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Framing:	Unknown
Deck:	144 sq ft
Main Ceiling Height:	8'
Upper Ceiling Height:	8'

* May require additional drawing time.

Square footage calculations are based on total heated space only and will NOT include garages, porches or exterior storage areas. These plans will include ALL of the following:

Exterior Elevation

Detailed Floor Plans

Foundation Plan

Stair Details

Location of Electrical, Plumbing and Heating Fixtures

Cover Sheet

Full Cross Section showing ceiling height and wall details

Roof Plan

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

We are sorry, but an estimated cost build report is not available for this particular plan.

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A
