House Plan 99971
Cottage Style with 1 Bed, 1 Bath
sq ft
598beds
1baths
1bays
0width
23'depth
32'
click for more images
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 598 sq ft |
| Main Living Area: | 598 sq ft |
| Garage Type: | None |
| See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount. | |
| Foundation Types: | Crawlspace Slab |
| Exterior Walls: | 2x6 |
| House Width: | 23' |
| House Depth: | 32' |
| Number of Stories: | 1 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 15'10 from Front Door Floor Level |
| Primary Roof Pitch: | 6:12 |
| Roof Framing: | Truss |
| Porch: | 133 sq ft |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 8' |
Plan Description
This little cabin is just perfect for kicking back and enjoying your relaxation time, either indoors or on the front porch. It has a full Bathroom, a laundry area, and a good-sized Bedroom with a large closet. The combined Livingroom and Kitchen/Dining combination offers plenty of comfortable casual living space and all of this for an affordable price.
What's Included?
Exterior Elevation
Detailed Floor Plans
Foundation Plan
Stair Details
Location of Electrical, Plumbing and Heating Fixtures
Cover Sheet
Full Cross Section showing ceiling height and wall details
Roof Plan
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Currently the plans show a stacking washer and dryer, the dimension of the unit on the plans is 30” wide by 28” deep. If the hot water tank is moved to another location you could put a side by side washer and dryer, with a width of up to 30” each, and a maximum depth of 28”. You will have to look at what size appliances you have available locally. We would recommend purchasing any appliance after the drywall has been installed, that way you can take measurements on site to ensure the appliance will allow for the door to swing without contact, and that you will have adequate room for plumbing and venting behind the appliance. As the wall behind the appliances is a 2x6 plumbing wall you can have your plumber recess your hose bibs into the walls to allow for extra clearance.
A: Yes
A: These plans were designed for electric baseboard heaters, you could install a furnace as desired by moving some of the mechanical equipment and putting some of it in the closets. Currently the hot water tank is in the mudroom, if needed you could put the furnace there instead and move the hot water tank into the linen closet, you could also use a hot water on demand water heater which mounts on the wall. The water pump, depending on it’s dimensions could be put into the bedroom closet. As another option, this plan is available with a crawlspace foundation option, this would allow for the mechanical equipment to be placed in the crawlspace.
A: Plan last updated in 2017 to basic IRC and NBCC requirements. It is the responsibility of the purchaser to make sure the plans are brought up to local codes as there are too many variance in North America to have them meet all codes, energy standards, seismic, hurricane, etc. This plan has been built many time over the last decade in many different states and provinces without problems. Canadian customer can phone the Canadian line for more specific information on Canadian codes. 1-800-361-7526
A: I'm sorry but this home doesn't come with a basement foundation and we have no other plan like this with a basement.
A: The bathroom is 5'9" x 9'8" and the mudroom is 6'4" x 5'3". These dimensions are taken from the middle of the interior walls to the outside of the exterior walls. Actual interior dimensions will be a few inches smaller.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.
Elevation

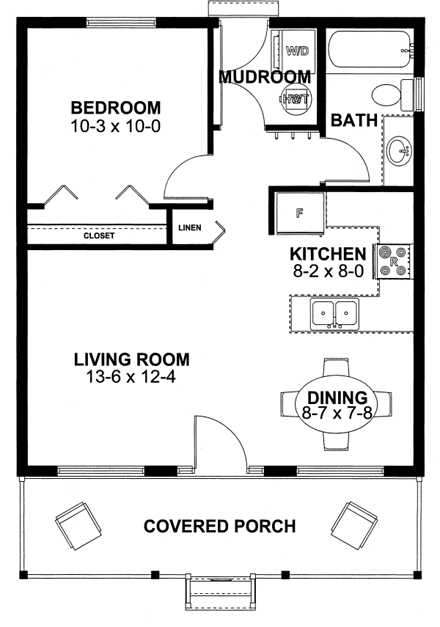

Level One
Quick Specs
598 Total Living Area598 Main Level
1 Bedrooms
1 Full Baths
23' W x 32' D
Quick Specs
598 Total Living Area1 Bedrooms
1 Full Baths
23' W x 32' D
Rear Elevation
Photographs may show modified designs.
