Misc Plan 43748

• PDF File: $945.00
• 1 Set: $370.00 **
• 5 Sets plus PDF File: $605.00
• CAD File: $1,050.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $80.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $25.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: $90.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1134 sq ft
Main Living Area:	1134 sq ft
Garage Type:	None
Foundation Types:	Slab
Exterior Walls:	2x4 - * $90.00 2x6
House Width:	58'0
House Depth:	28'0
Number of Stories:	1
Full Baths:	1
Max Ridge Height:	20'4 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	25 psf
Roof Framing:	Truss and/or Stick
FirePlace:	Yes
Main Ceiling Height:	10'

* May require additional drawing time.

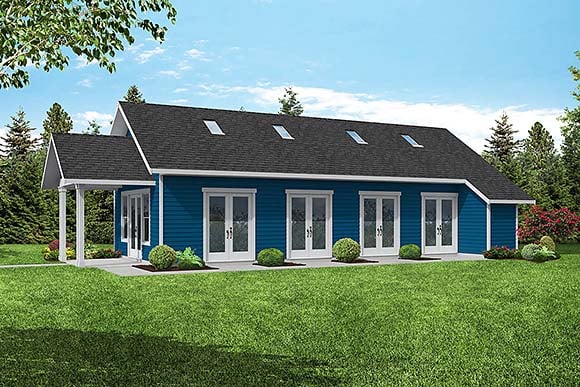

Farmhouse Style Pool Plan with Fireplace

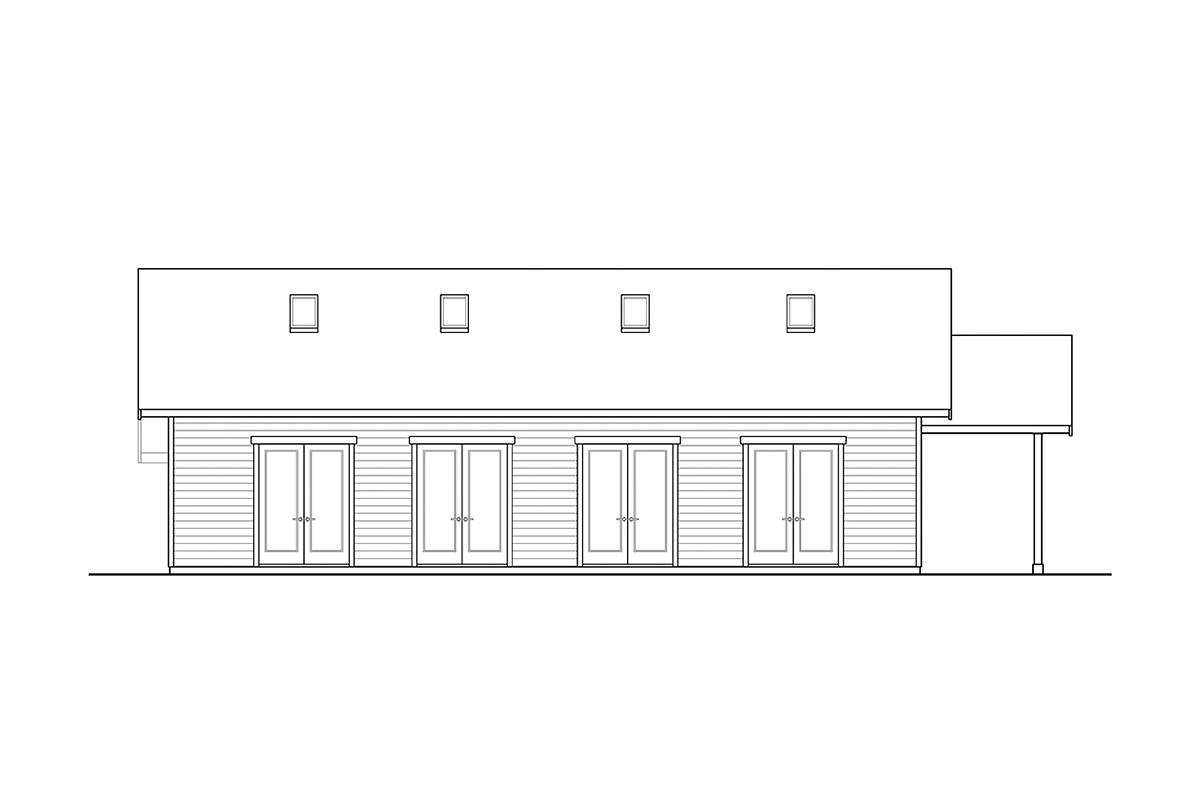

This Farmhouse Style Pool Plan is a wonderful edition to any property looking to up their recreational activities while simultaneously investing in their property value. There are four sets of French doors that flank the Poolhouse on each side. This allows for plenty of ventilation and provides for plenty of viewpoints. The Pool House includes a storage closet as well as a fireplace on those winter days where warmth is paramount. A bathroom with a shower provides the ease of washing any chlorine off before leaving the building.

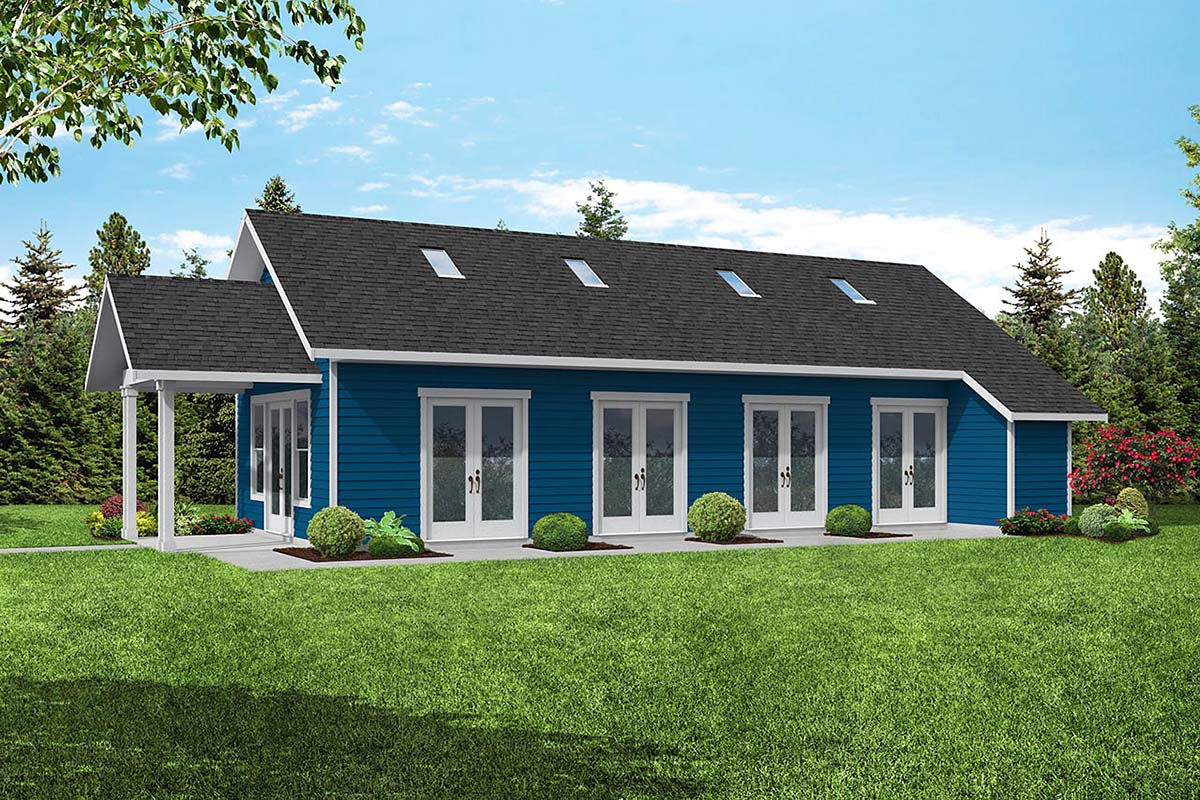

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

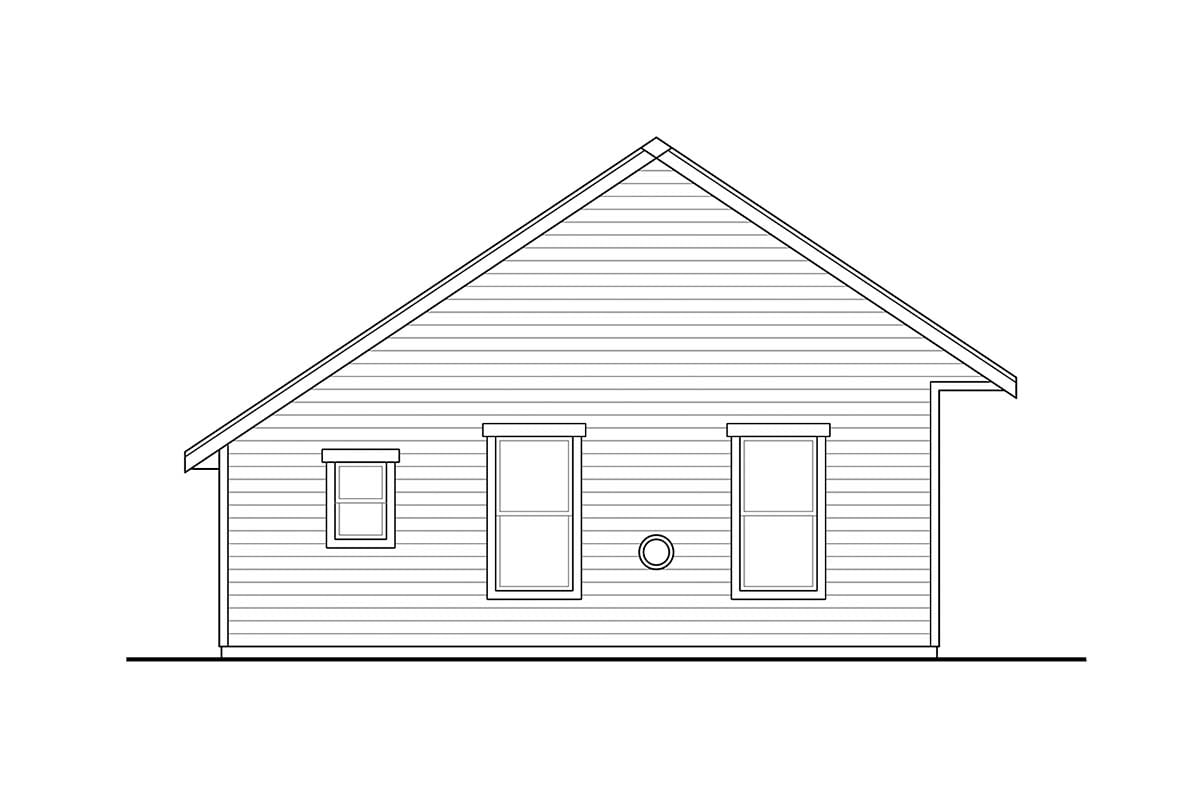

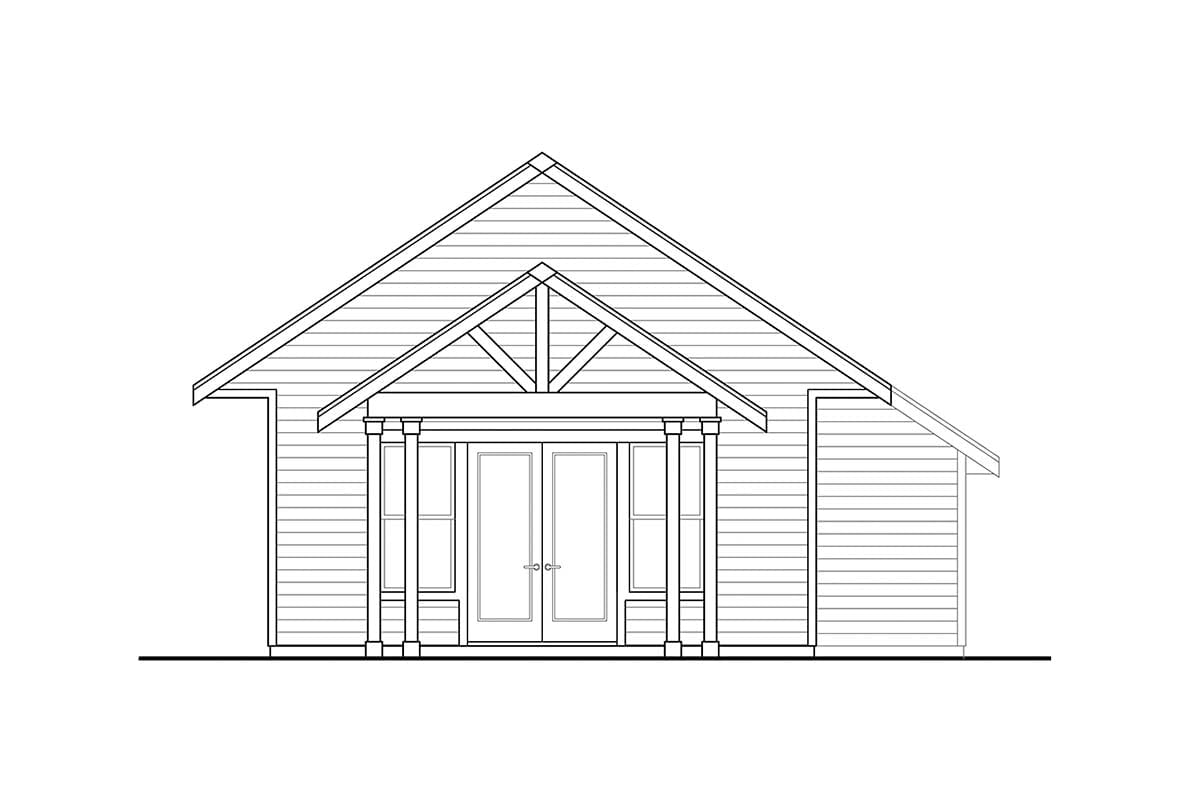

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

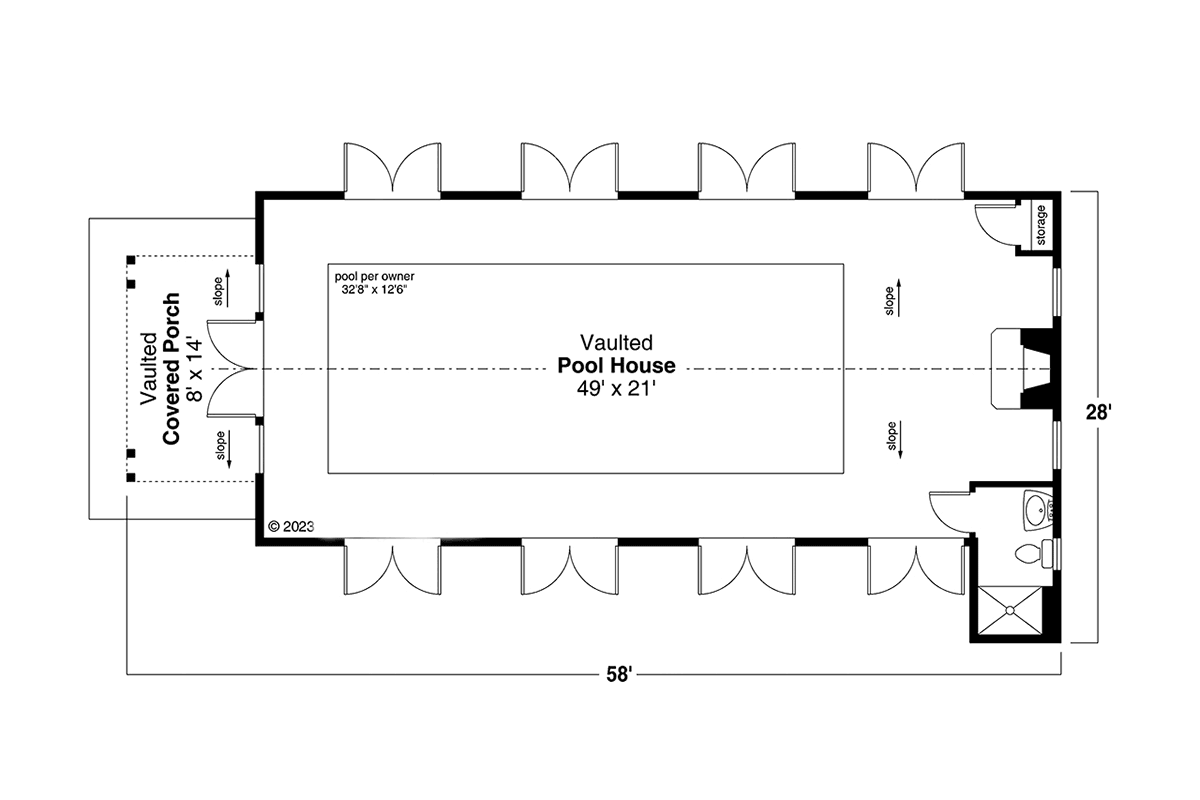

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.
