House Plan 83511

• PDF File: $1,896.00
• 5 Sets plus PDF File: $2,196.00
• CAD File: $3,792.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $250.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $60.00

Available Foundation Types:

• Basement : $557.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : No Additional Fee
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2588 sq ft
Main Living Area:	1812 sq ft
Upper Living Area:	776 sq ft
Garage Area:	1648 sq ft
Garage Type:	Attached
Garage Bays:	6
Foundation Types:	Basement - * $557.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab
Exterior Walls:	2x6
House Width:	62'0
House Depth:	94'0
Number of Stories:	2
Bedrooms:	3
Full Baths:	3
Half Baths:	1
Max Ridge Height:	29'4 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	25 psf
Roof Framing:	Truss
Porch:	877 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Coat Closet
• Entertaining Space
• Front Porch
• Mudroom
• Office
• Open Floor Plan
• Pantry
• Rear Porch
• Screened Porch
• Storage Space

Barndominium with Simple Roofline

Home Plan With 4 Bay Garage 83511 has 2,588 square feet of living space, 3 bedrooms, and 3.5 bathrooms. In addition, the huge garage / shop is 1,648 square feet. Left side of the garage will comfortably park 2 regular-sized vehicles. Right side of the garage will park two taller vehicles like your camper. The recreational vehicle side of the garage measures 26'4 wide by 38'8 deep to give you plenty of space to set up your workshop if desired. Overall, this new construction, barndominium style plan has two levels, and the exterior dimensions are 62' wide by 94' deep.

Home Plan With 4 Bay Garage Including RV Parking

Buyers will choose Home Plan With 4 Bay Garage 83511 because they need lots of room. Firstly, the garage / shop is essential when you live on a big piece of land. At the very least, you need a tractor or mower, and of course you need a place to park it. If you don't have another outbuilding, no problem. Park the mower in the larger side of the garage. This plan will also appeal to the outdoorsman and his family. For example, you can pull in your truck and boat easily under the tall garage doors. When it comes to working on your vehicles, the shop offers plenty of space to store tools and equipment.

Secondly, this plan is great for those who work at home. If you are building on property outside of town, you might want to avoid a long commute to the office. That problem is solved because there is a home office measuring 10' wide by 14'4 deep. Access the office through a double doorway off the foyer. Thirdly, this plan offers lots of functional rooms. The mudroom off the garage is fully-outfitted to serve your family. It includes a coat closet, bench with organizational cubbies, and quick access to the half bathroom. Keep going through the kitchen, and you will find a combination laundry room and walk-in pantry.

Entertain in Style Inside and Outside

When it comes to entertaining, Home Plan With 4 Bay Garage 83511 is a pleasure inside or outside. The living space is very open, and the "Entertainment" room measures 29'4 wide by 16'10 deep. Arrange your furniture around the fireplace and the display shelves, and you even have room for a pool table besides. Cook a fantastic meal in the kitchen, sit down to enjoy it in the dining room, and then move the guests out to the screened porch for evening conversation.

Lastly, we take a look at the bedrooms. Starting off, the plan offers a main floor master suite. It's a spacious room with a walk-in closet. The master bathroom has a double vanity with lots of counter space, private toilet closet, and walk-in shower. There's a nice surprise upstairs because the kids each have a private bathroom and a walk-in closet.

Exterior Elevations
In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices

Foundation Plan
The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s)

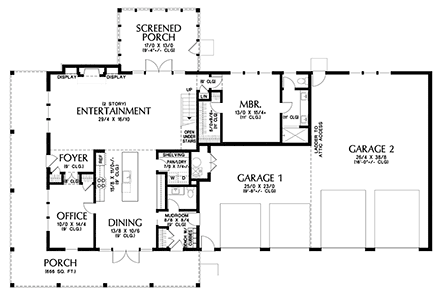

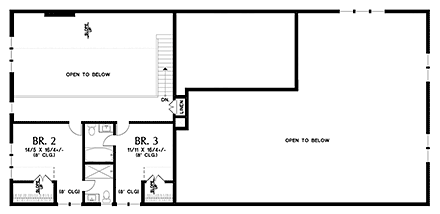

Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices

Roof Plan
Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s)
Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.
