House Plan 83532

• PDF File: $1,601.00
• 5 Sets plus PDF File: $1,901.00
• CAD File: $3,202.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $250.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $60.00

Available Foundation Types:

• Basement : $519.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : No Additional Fee
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2113 sq ft
Main Living Area:	1096 sq ft
Upper Living Area:	1017 sq ft
Garage Area:	364 sq ft
Garage Type:	Attached
Garage Bays:	1
Foundation Types:	Basement - * $519.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab
Exterior Walls:	2x6
House Width:	50'0
House Depth:	48'0
Number of Stories:	2
Bedrooms:	4
Full Baths:	3
Max Ridge Height:	30'6 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	25 psf
Roof Framing:	Truss
FirePlace:	Yes
2nd Floor Laundry:	Yes
Main Ceiling Height:	10'
Upper Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Coat Closet
• Entertaining Space
• Flex Space
• Front Porch
• Guest Room
• Office
• Open Floor Plan
• Pantry
• Rear Porch
• Storage Space

This design stands out with classic lines, great aesthetic and bedroom roof decks!

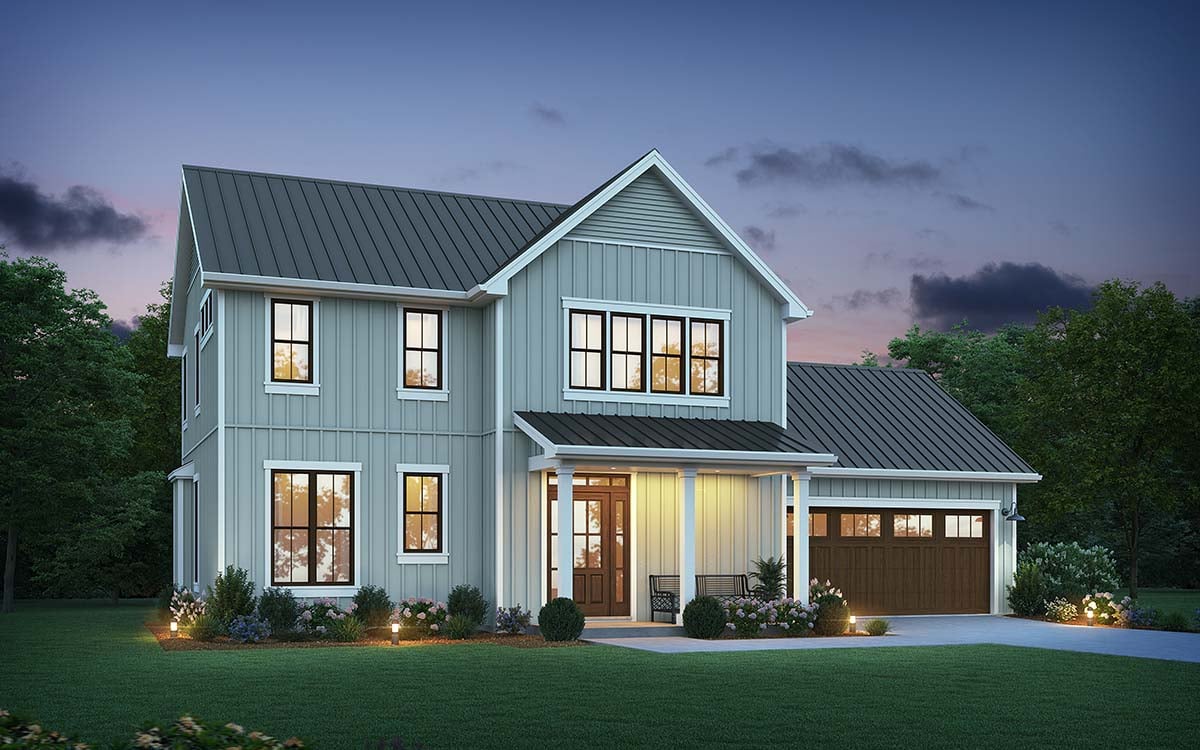

4/3 Traditional Home Plan 83532 has a total of 2,113 square feet of living space in two stories. Arrive to a welcoming covered front porch with three columns and 96 square feet. There is just enough room for a bench beside the glass-surrounded front door. Don't stop there because the back covered porch is much bigger at 320 square feet, 32 feet wide, and 10 feet deep. That porch will be a favorite for you and your whole family when it comes time to fire up the grill for hotdogs and hamburgers. In total, this new construction plan offers 4 bedrooms, 3 bathrooms, and a one-car, front-facing garage.

4/3 Traditional Home Plan With Upper-Level Deck

4/3 Traditional Home Plan 83532 has everything you need for comfortable living, plus a few extras. Firstly, take a look at the rear elevation and note the upper-level deck. This unusual feature spans the back of the house behind three bedrooms! As a result, the master bedroom, bedroom 2, and bedroom 3 each have a set of double doors that open onto that waterproof deck. You won't find this in many of today's home designs. It's a lovely idea to know that you can step right from the bedroom to the deck and gaze up at the stars!

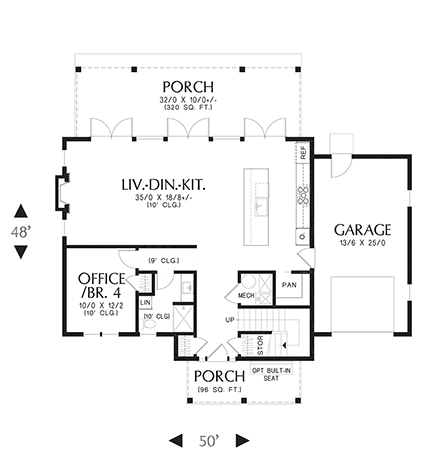

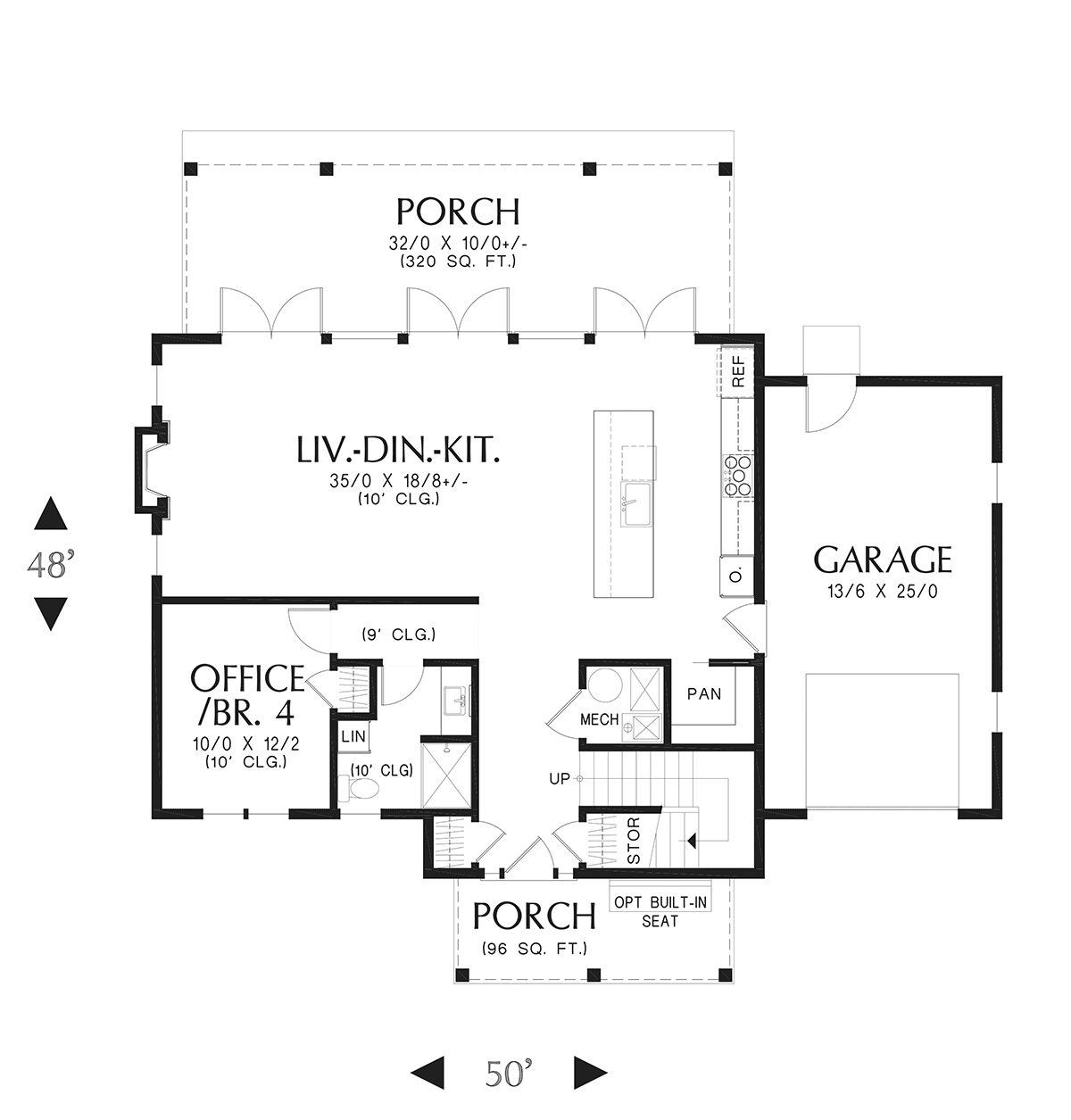

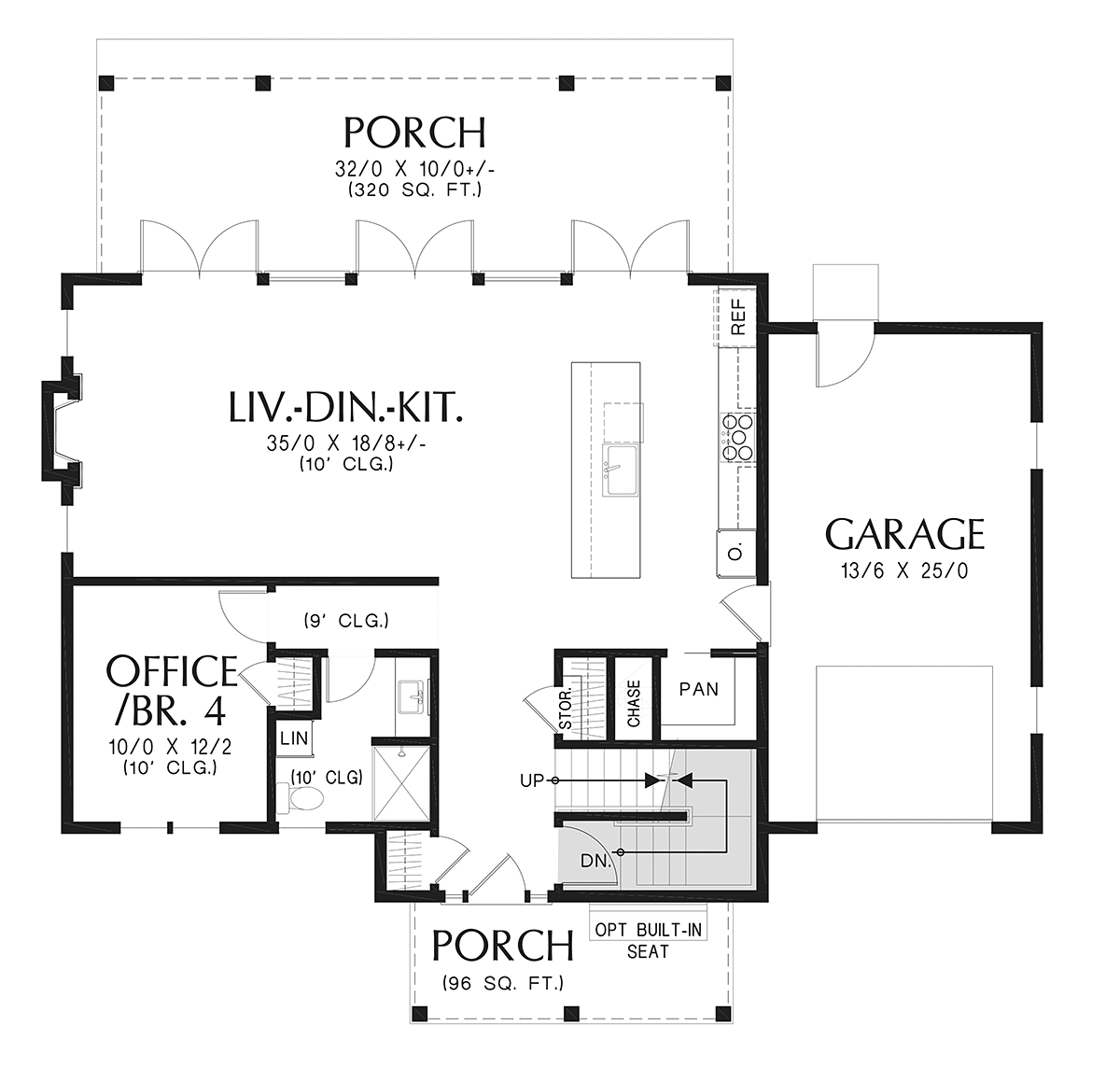

Secondly, the living space downstairs has the same pattern of three sets of double doors. These double doors open to the covered porch which spans the main floor on the back of the house. Not only are the doors attractive, but they also admit lots of natural light. The living space is a simple design with fireplace on one side of the room and range on the other side. In between, you can design your preferred layout of living room furniture and large dining table. When it comes to the kitchen, the oversized island is the perfect place to prep for meals, and the walk-in pantry gives you lots of storage.

Bedroom Number 4 or Office?

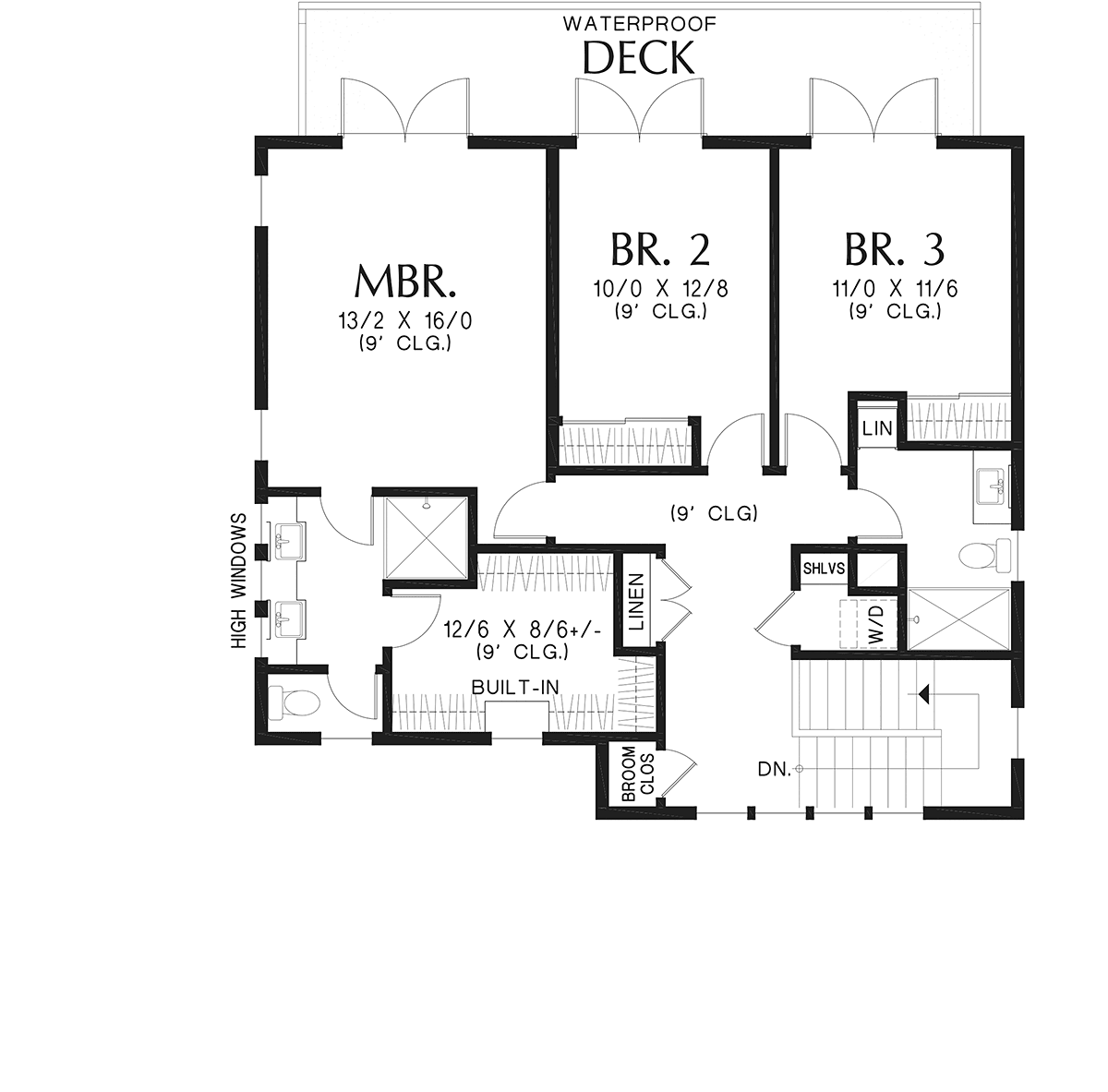

Thirdly, most of the bedrooms are upstairs in 4/3 Traditional Home Plan 83532 so that Mom and Dad can stay close to the kids. This is especially helpful for families with young children. After all, no one wants to run up or down the stairs when the kids need something at night. The master bedroom is arranged with complete function because it has two sinks, walk-in shower, private toilet room, and a very large walk-in closet attached to the bathroom. The closet has a built-in for organization and a window for natural light which is coming from the front of the home.

Occupants of bedrooms 2 and 3 share a nice guest bathroom, and there is a small closet where you can put a stacked washer and dryer on the second floor. Plus, the second level has a linen closet and broom closet. Downstairs, you can choose how to use bedroom 4. Do you have enough family to fill every bedroom, or will you make it an office or guestroom? Note the full bathroom on this level and two more closets for storage.

Exterior Elevations
In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices

Foundation Plan
The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s)
Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices

Roof Plan
Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s)
Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

• No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
• Get more accurate results, quicker! No need to wait for a reliable cost.
• Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
• Cost report for your zip code. (the zip code can be changed after you receive the online report)
• Estimate 1, 1-1/2 or 2 story home plans. **
• Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
• Your estimate is active for 1 FULL YEAR!
