House Plan 85149
New A-Frame House Plan With Huge Deck
sq ft
1607beds
2baths
2bays
0width
33'depth
40'
click for more images
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Plan Pricing
Additional Notes
First Floor Ceiling Height: 3'4" (side walls) vaults to 24'6"Second Floor Ceiling Height: Vaults up to 15'7"
Overall Depth with Deck: 68'
Overall Height - Rear: 37'11"
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1607 sq ft |
| Main Living Area: | 1170 sq ft |
| Upper Living Area: | 437 sq ft |
| Unfinished Basement Area: | 1307 sq ft |
| Garage Type: | None |
| See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount. | |
| Foundation Types: | Walkout Basement |
| Exterior Walls: | 2x6 |
| House Width: | 32'8 |
| House Depth: | 40'0 |
| Number of Stories: | 2 |
| Bedrooms: | 2 |
| Full Baths: | 2 |
| Max Ridge Height: | 31'3 from Front Door Floor Level |
| Primary Roof Pitch: | 21:12 |
| Roof Framing: | Unknown |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
Special Features:
Plan Description
New A-Frame House Plan With Huge Deck

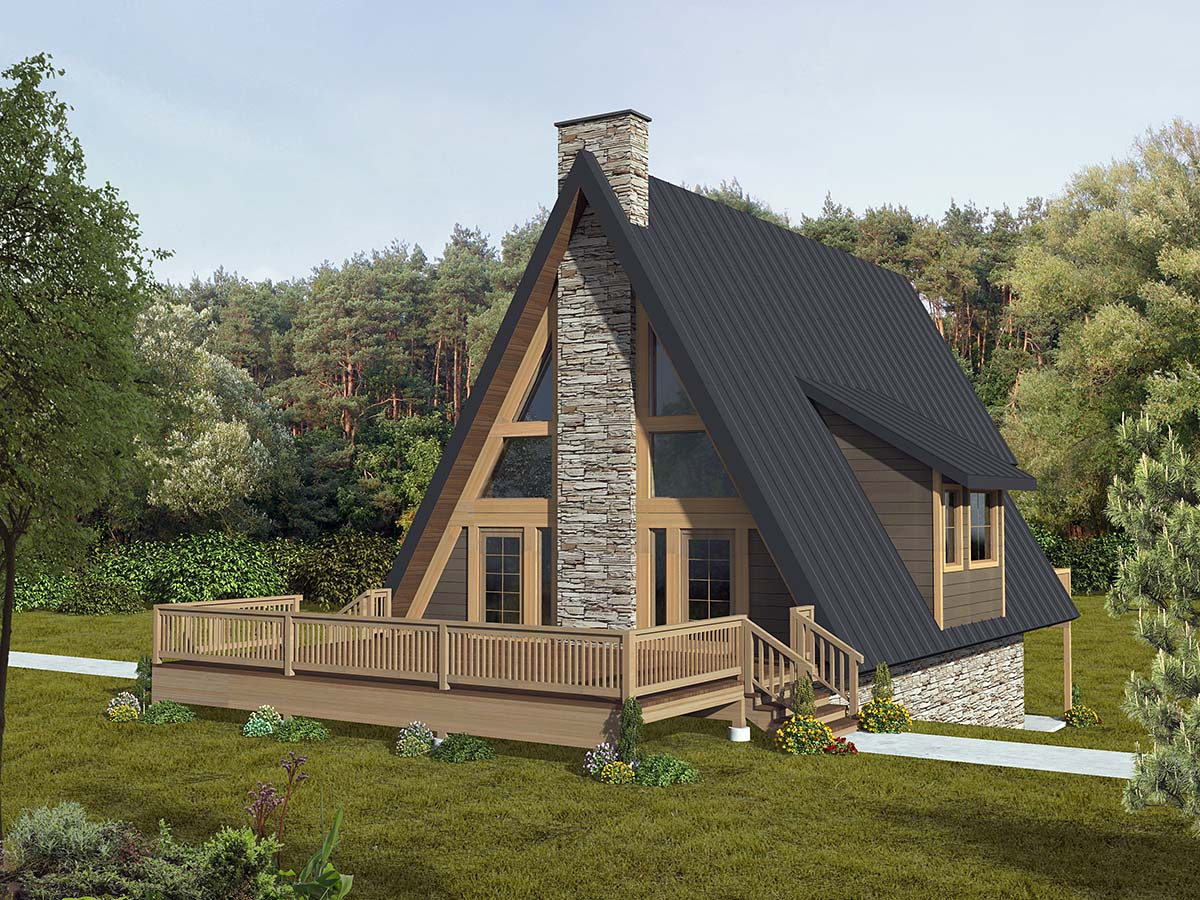

New A-Frame House Plan 85149 is presented with a beautiful window wall rising up from the huge open porch / deck. In total, this narrow-lot house plan has 1,607 square feet of living space, 2 bedrooms and 2 bathrooms. The steeply-pitched roof will shed the snow while you remain cozy and warm inside. Build this A-frame house plan and use it for a vacation getaway. Build by the lake and enjoy the large deck in the summer. Extra sleeping space is available in the loft upstairs, and the open railing of the balcony promises that sunlight will reach deeply into the upper level.
New A-Frame House Plan Great For Vacation Home
New A-Frame House Plan 85149 is the perfect choice for your vacation home. Firstly, the plan offers open living space. While it’s only 1,170 square feet on the main floor, the living space feels spacious. Notice the open floor plan among the living room, dining area, and kitchen. This design makes use of every square foot, and there is no wasted space. Enter the home from the open porch side and arrive directly into the living room. Arrange plush seating and snuggle in on winter evenings. The kitchen includes everything you need for everyday meals, and then you always have the option to move outside and grill on the deck / porch. Likewise, share a meal in the dining area, or set up a picnic bench on the covered patio on the other side of the house.
Secondly, the interior has a great view. If you have a lovely backdrop for your lot, take advantage of it through this wonderful window wall. Now you can gaze at the sunrise over the mountains, or watch the ripples on the lake before you go out fishing. In addition to the view, imagine the flood of natural light that filters through these windows. It can be enjoyed from upstairs or downstairs. Thirdly, you can have a vacation of solitude, or bring more friends. Yes, there is room to expand. Add more cots in the sleeping loft upstairs, and you’re not limited in how many fishing buddies can come along.
2 Bedroom A-Frame Plan
The master suite is located in the back of this A-frame plan. It measures 11' wide by 12' deep and includes a walk-in closet. One bathroom is available on the main floor, and it's right next to a good-sized laundry room. In the bathroom there’s a double sink, toilet, and just enough room for a tub/shower combination. Step outside on the covered patio if you need to find a quiet place to read when you have guests staying with you. We’re sure you will feel refreshed after spending a weekend here on vacation.
Bedroom 2 is upstairs, and it measures 14’9 wide by 9'8 deep. It has a private bathroom with corner shower and linen storage. Occupants of the sleeping loft enjoy natural light flooding inside from the window wall, and the loft is open to the living room below. Notice all of the storage space tucked into the roof area.
What's Included?

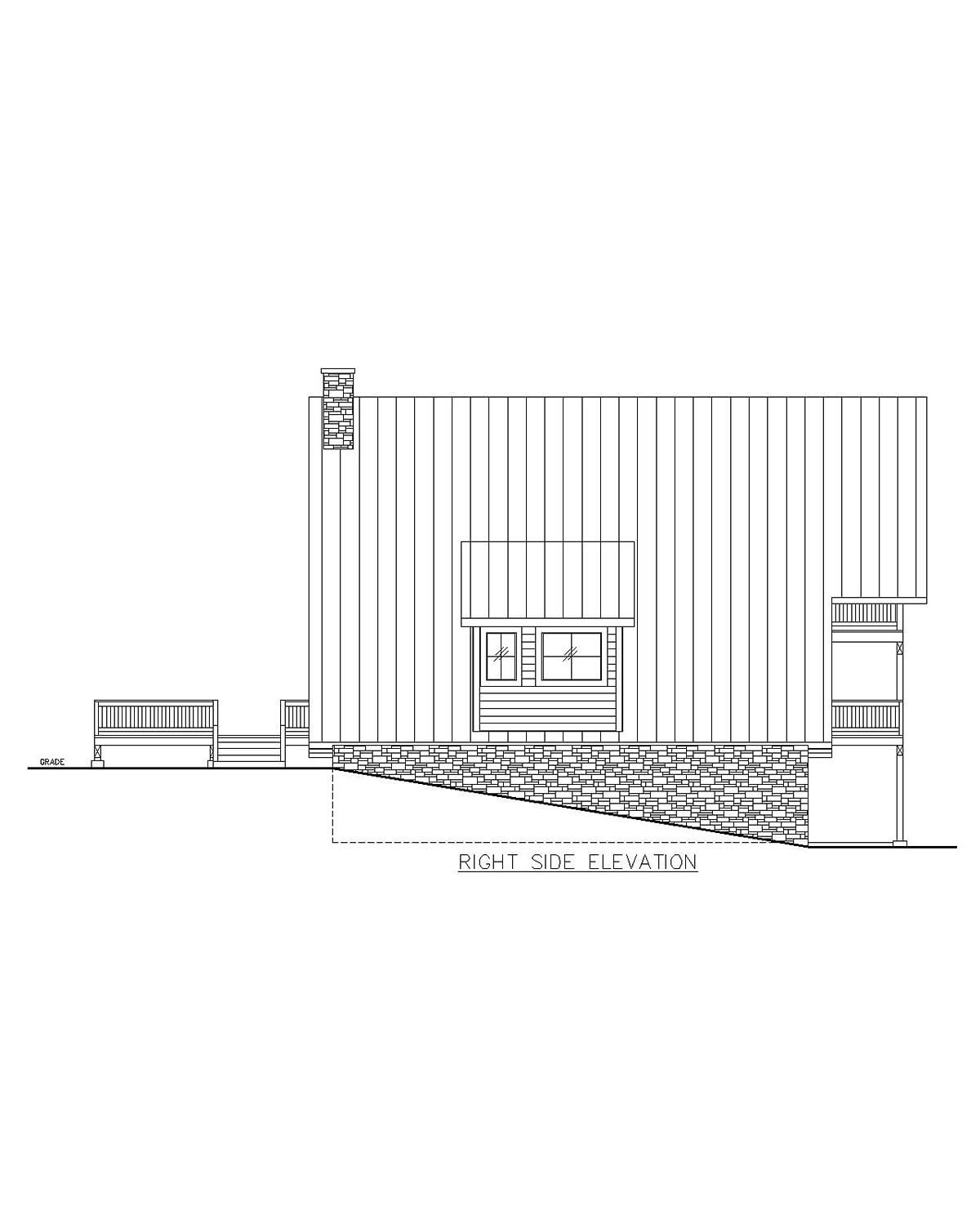

Detailed Elevations
Detailed Floor Plans
Foundation Plan
Floor Framing Plan
Roof framing Plan
Cross Sections
Electrical Plans
General Notes to cover entire project
Joist size, beam size, connections and hardware are shown. Materials list is not.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click image to enlargeInfo Brochure
Photographs may show modified designs.

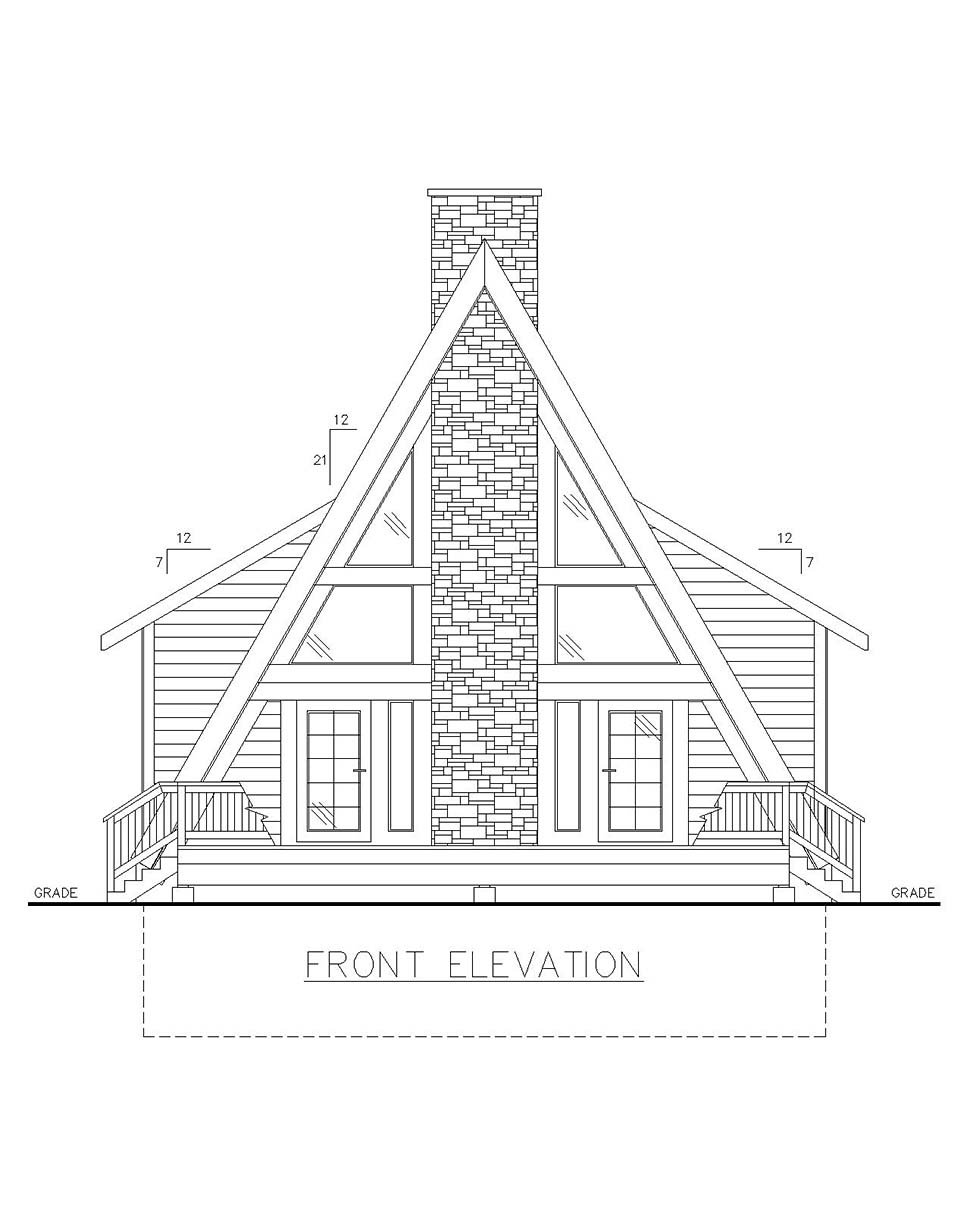

Elevation

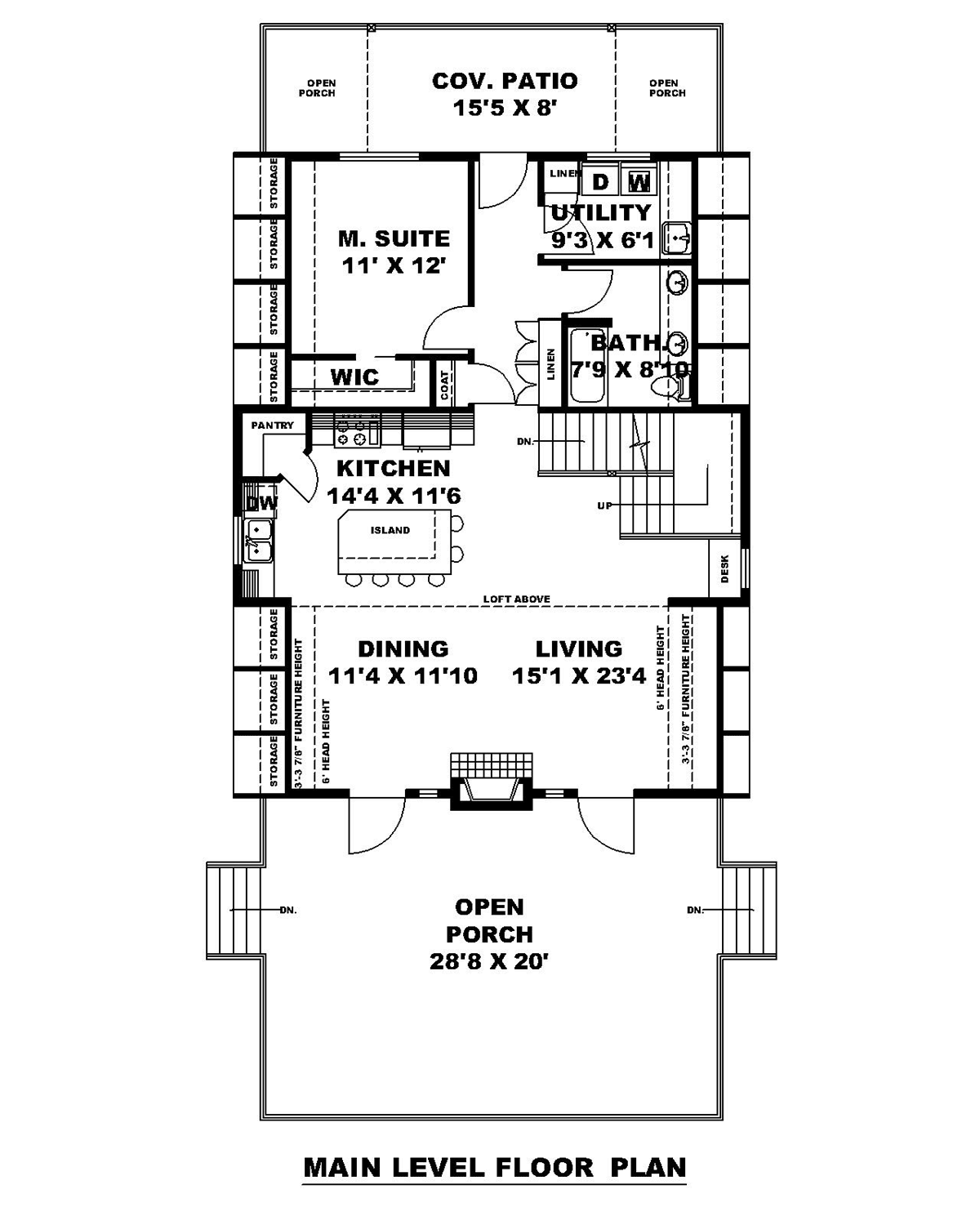

Level One

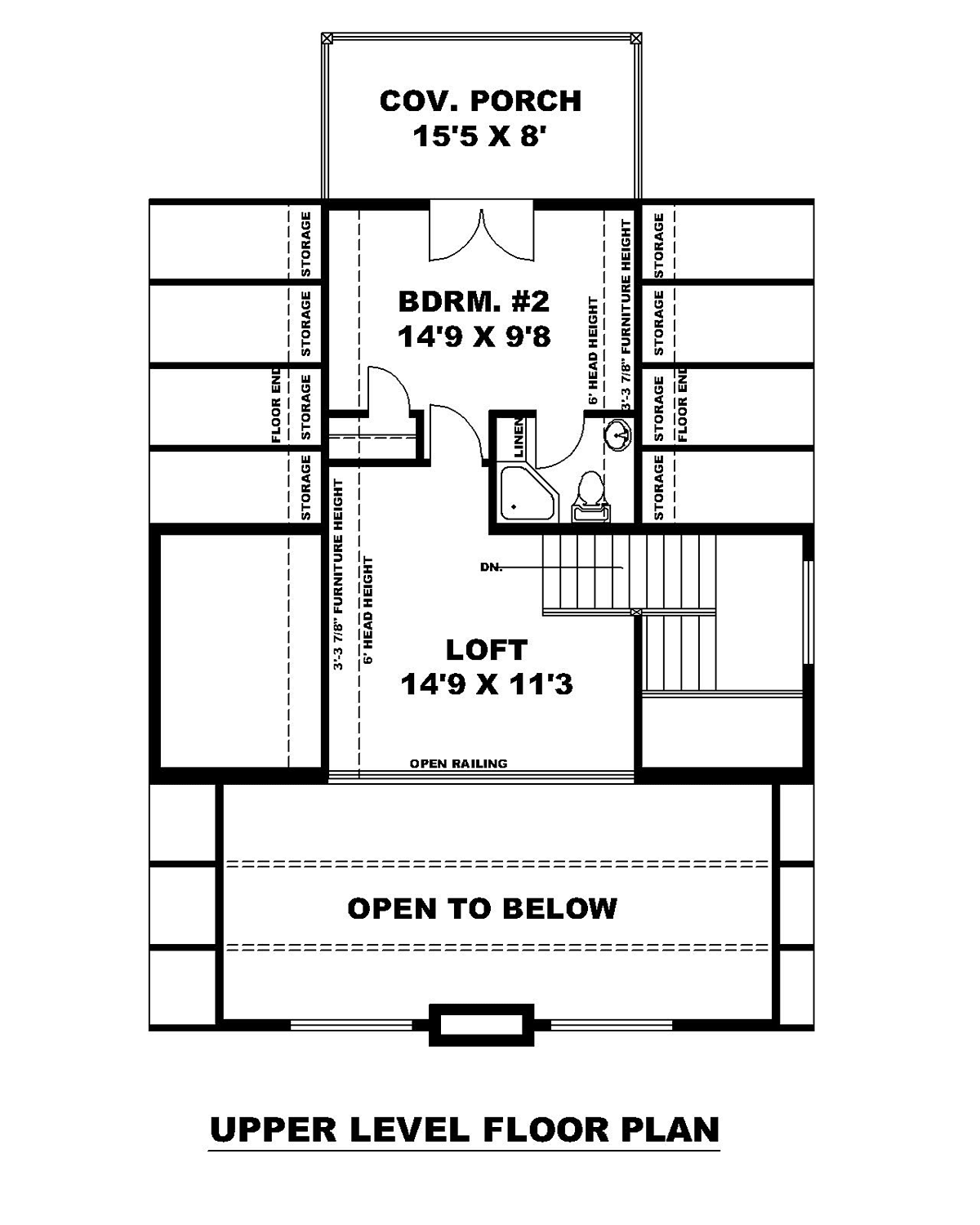

Level Two

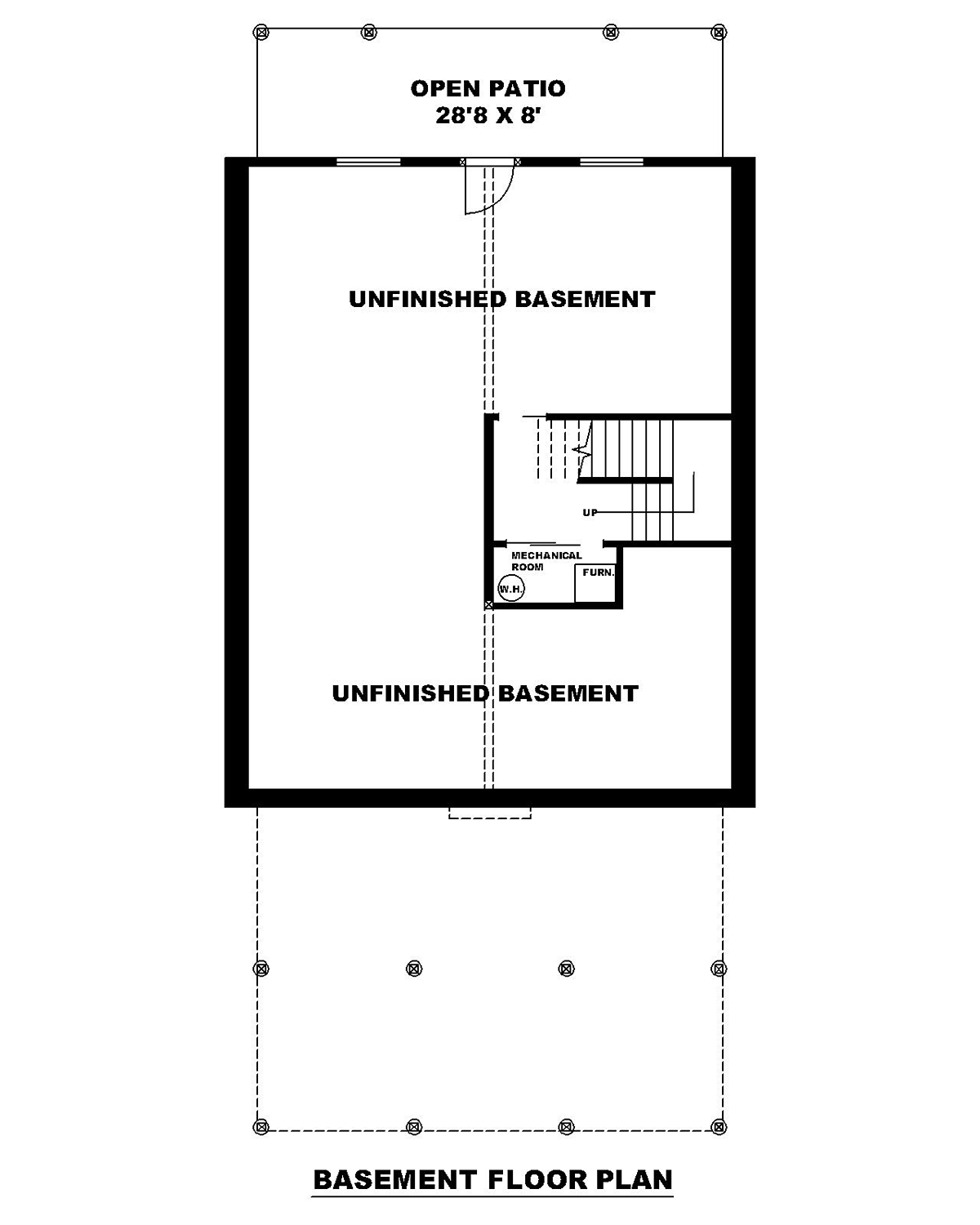

Lower Level
Quick Specs
1607 Total Living Area1170 Main Level
437 Upper Level
2 Bedrooms
2 Full Baths
32'8 W x 40'0 D
Quick Specs
1607 Total Living Area2 Bedrooms
2 Full Baths
32'8 W x 40'0 D
Pricing
PDF File: $1,245.005 Sets: $1,145.00
5 Sets plus PDF File: $1,395.00
CAD File: $1,245.00
more info

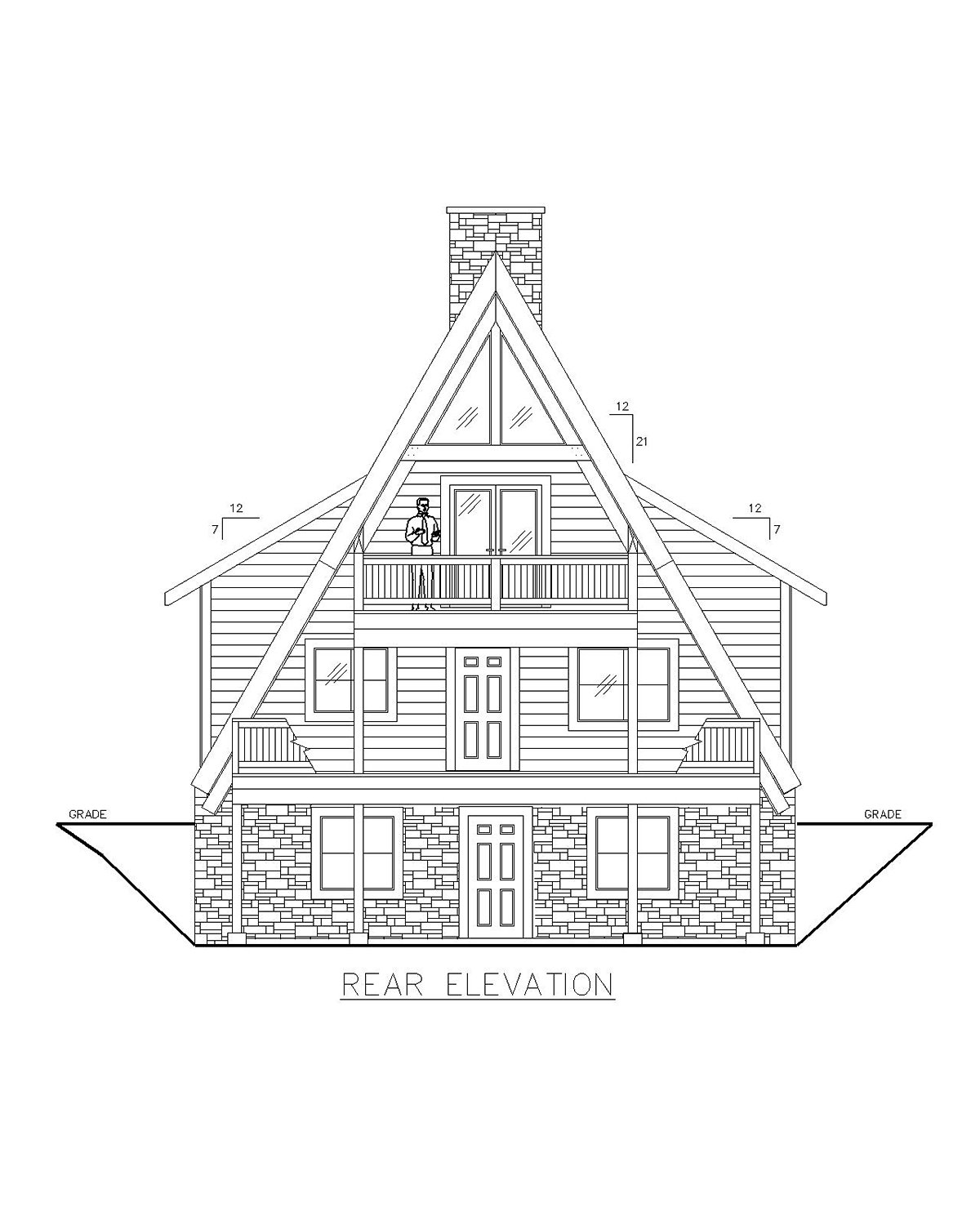

Rear Elevation
Photographs may show modified designs.
Buy This Plan
Have any Questions? Please Call 800-482-0464 and our Sales Staff will be able to answer most questions and take your order over the phone. If you prefer to order online click the button below.
Add to cart
