House Plan 100147
Modern Home Plan With See-Through Windows | Plan 100147
sq ft
3118beds
3baths
3bays
2width
79'depth
76'
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 3118 sq ft |
| Main Living Area: | 3118 sq ft |
| Garage Area: | 700 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab - * $395.00 |
| Exterior Walls: | 2x6 |
| House Width: | 78'9 |
| House Depth: | 75'6 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 3 |
| Max Ridge Height: | 15'3 from Front Door Floor Level |
| Primary Roof Pitch: | 1:12 |
| Roof Framing: | Stick |
| Porch: | 546 sq ft |
| Deck: | 472 sq ft |
| FirePlace: | Yes |
| Main Ceiling Height: | 9' |
Special Features:
Plan Description
Modern Home Plan With See-Through Windows
Modern Home Plan With See-Through Windows is stunning because you can see right through the tall front windows to the back patio. Imagine this home built with a fantastic landscape view! This one-story design is 3,118 sq ft of living space, 3 beds, 3 baths + a 2 bay garage. Entertain around the giant island in the kitchen and never run out of supplies with this big pantry. Don't miss the great laundry room with dog wash station, amazing primary bedroom with skylights, and bedrooms with WICs!What's Included?
What is INCLUDED in the plans:
Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
Building Sections - Overall section of the build to capture ceiling heights, drops, roof profiles, etc.
Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.
What is NOT INCLUDED in the plans:
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Plumbing plans
Electrical plans
Mechanical Drawings (location of heating and air equipment and duct work)
- your subcontractors handle this
Framing layouts - with beam sizes and locations
Material lists
Renderings, photography, or marketing imagery
Energy calculations - handled locally when required
Building Code
Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all the information required by your building department.
If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.
Engineering
Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.
Modifications
Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!
Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.
Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
click image to enlargeInfo Brochure
Photographs may show modified designs.

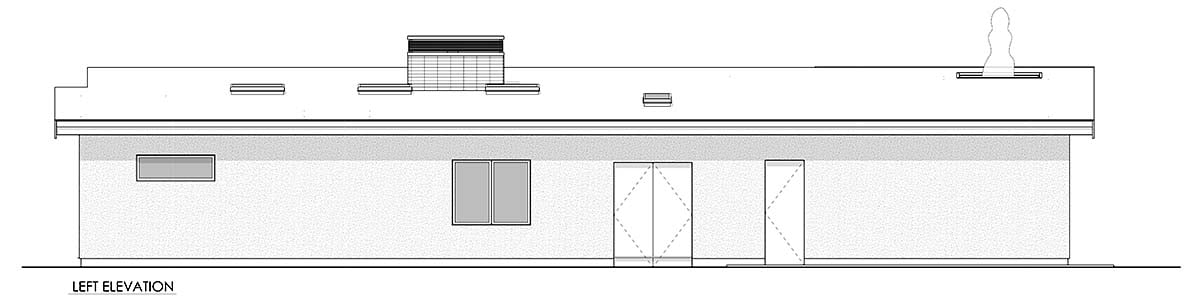

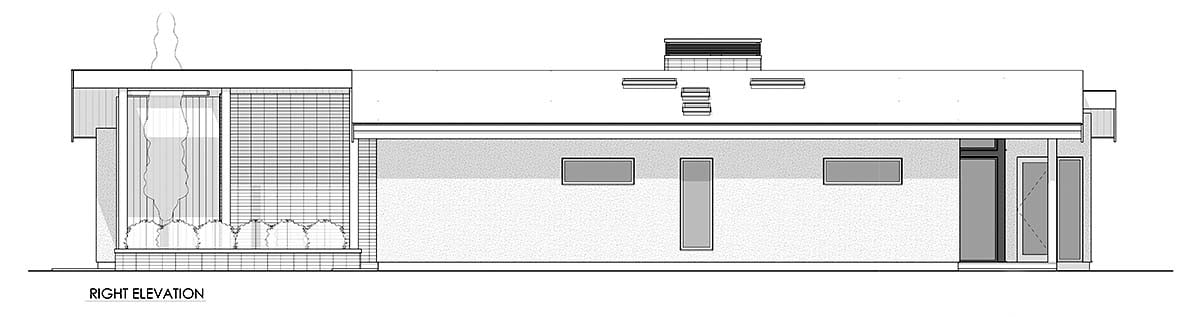

Elevation

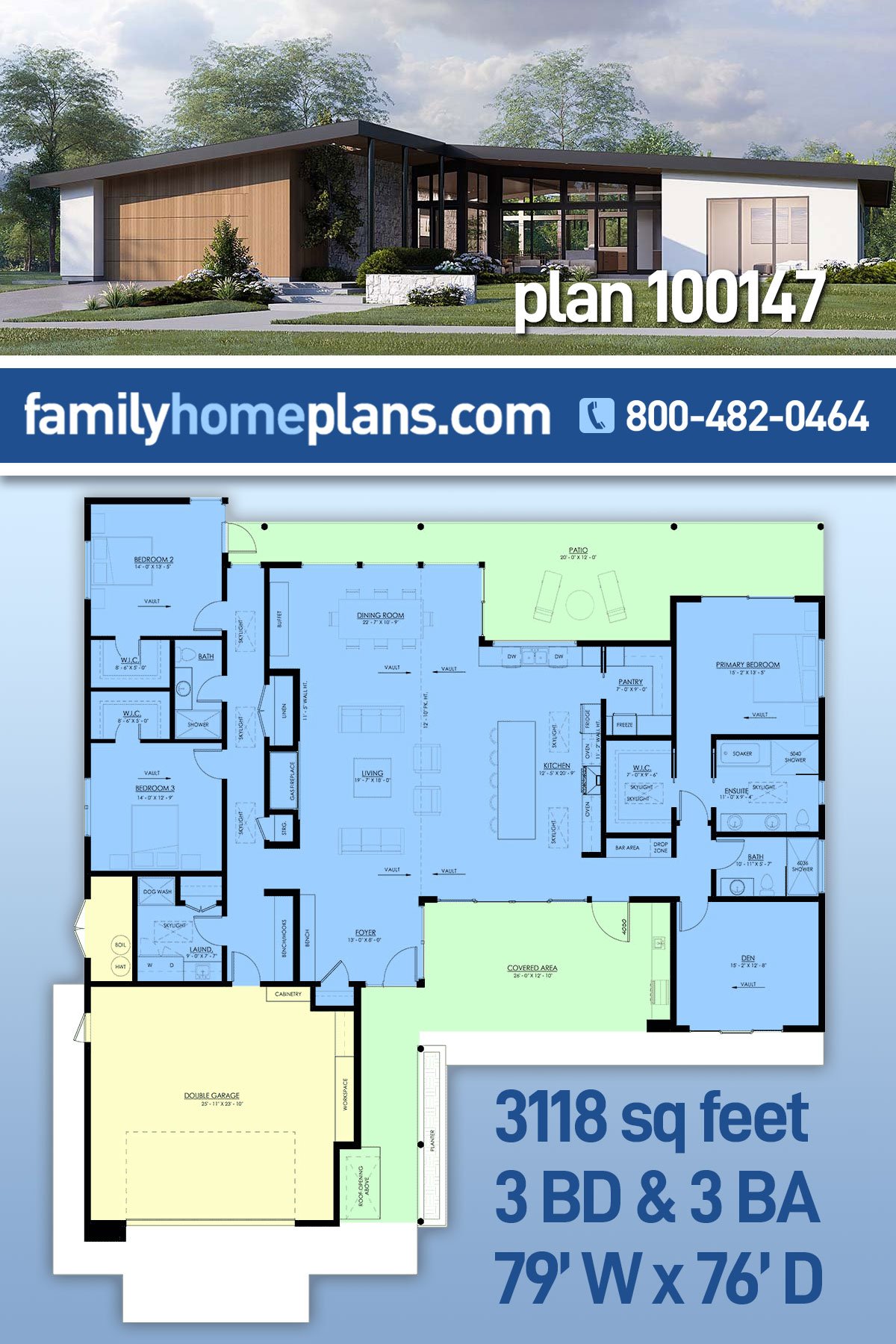

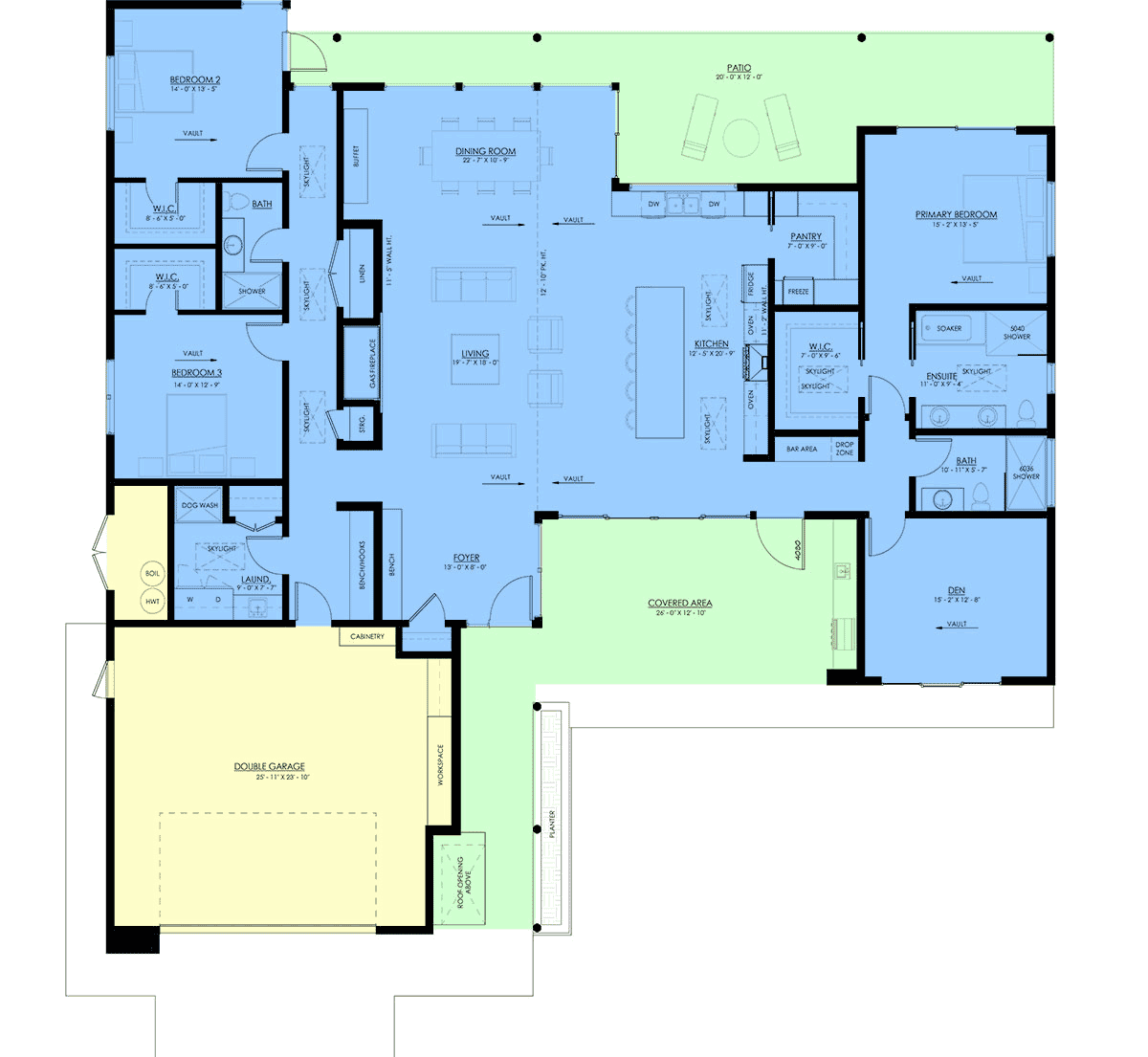

Level One
Quick Specs
3118 Total Living Area3118 Main Level
3 Bedrooms
3 Full Baths
2 Car Garage
78'9 W x 75'6 D
Quick Specs
3118 Total Living Area3 Bedrooms
3 Full Baths
2 Car Garage
78'9 W x 75'6 D
