Garage-Living Plan 101205
Oversized Farmhouse Style Garage Apartment Plan | Plan 101205
sq ft
1628beds
1baths
2bays
4width
70'depth
59'
Plan Pricing from $1,155.00
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1628 sq ft |
| Main Living Area: | 108 sq ft |
| Upper Living Area: | 1520 sq ft |
| Garage Area: | 1995 sq ft |
| Garage Type: | Drive Under |
| Garage Bays: | 4 |
| Foundation Types: | Slab Slab |
| Exterior Walls: | 2x4 2x4 2x6 - * $295.00 2x6 - * $295.00 |
| House Width: | 70'0 |
| House Depth: | 59'0 |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 2 |
| Max Ridge Height: | 31'7 from Front Door Floor Level |
| Primary Roof Pitch: | 10:12 |
| Roof Framing: | Unknown |
| Porch: | 741 sq ft |
| Main Ceiling Height: | 10' |
| Upper Ceiling Height: | 10' |
Special Features:
Plan Description
Oversized Farmhouse Style Garage Apartment Plan

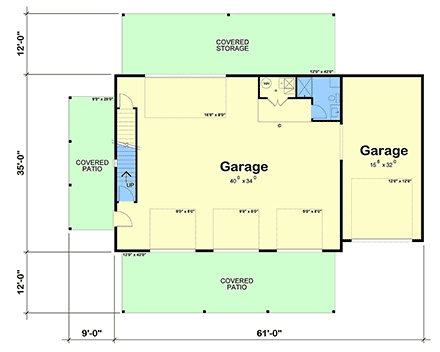

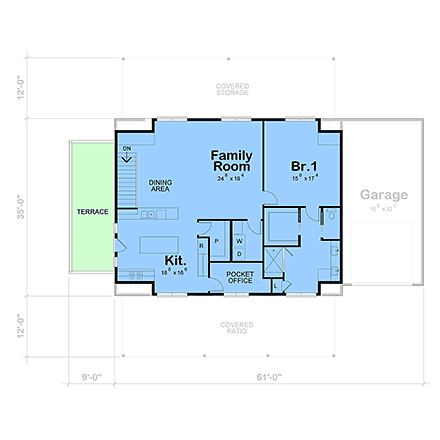

This beautifully designed detached garage apartment blends rustic charm with modern functionality. The main level offers room for up to five vehicles/toys across two garage bays (40’ x 34’ and 15’ x 32’), with plenty of space for a workshop or storage. A covered patio and terrace runs the full depth of the structure, creating an inviting outdoor area for relaxing or entertaining.Upstairs, the living quarters feature a bright and airy layout perfect for guests, extended family, or rental income. The open-concept kitchen and dining area flow seamlessly into a spacious family room, offering access to a private terrace and large windows for natural light. The primary bedroom (15’ x 17’4”) includes ample closet space and is conveniently located near a full bathroom. A pocket office and laundry area add modern conveniences to this compact yet efficient floor plan. Topped with a sleek metal roof and adorned with board-and-batten siding, Plan 101205 is ideal for those seeking a stylish and versatile addition to their property.
What's Included?
Cover Page
Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.
Foundation
Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.
Main Level Floor Plan
1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout
Second Level Floor Plan.
1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
Electrical and Sections
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
Roof Framing Plan.
Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.
Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.
Foundation
Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.
Main Level Floor Plan
1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout
Second Level Floor Plan.
1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
Electrical and Sections
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
Roof Framing Plan.
Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.
Modifications
Receive a FREE modification estimate.
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Designer This is the best and quickest way to get a modification quote!
Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.
It's as simple as that!
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Designer This is the best and quickest way to get a modification quote!
Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.
It's as simple as that!
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Common Q & A
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
