Plan Pricing from $450.00

Plan Pricing

PDF File: $450.00
1 Set: $250.00
3 Sets: $300.00
5 Sets: $350.00
CAD File: $700.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
Materials List: $75.00
Right Reading Reverse: $50.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $25.00

Additional Notes

Plan includes both 8'0" and 9'0" ceiling heights

Plans are not to be sold in New Jersey or Maryland.

Available Foundation Types:

Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

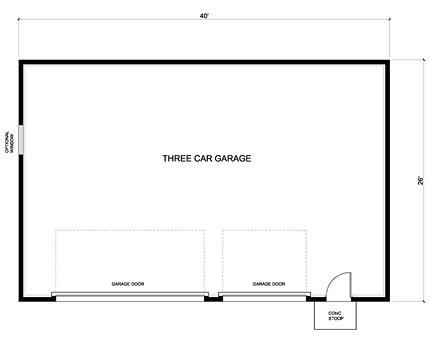

Garage Area:	1040 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Stem Wall Slab
Exterior Walls:	2x4
House Width:	40'0
House Depth:	26'0
Number of Stories:	1
Max Ridge Height:	16'6 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Framing:	Truss
Main Ceiling Height:	8' and 9'

What's Included?

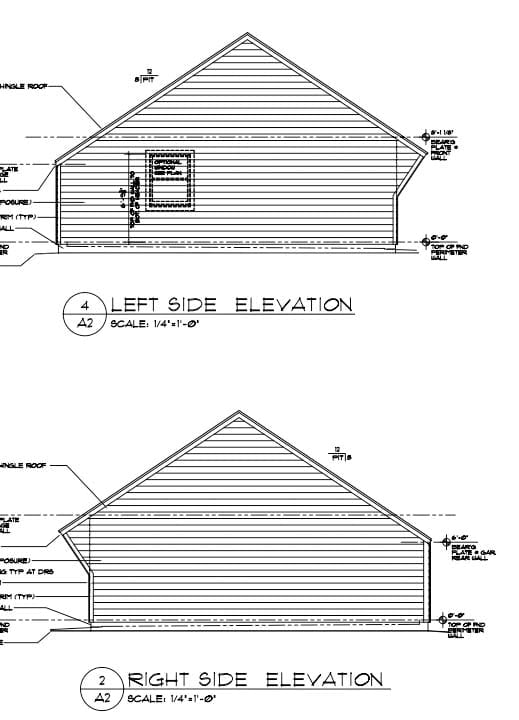

Exterior Elevations Scaled drawings of the front, rear, sides of the home. Information pertaining to the exterior finish materials, roof pitches and exterior height dimensions.

Cabinet Plans These plans, or in some cases elevations, will detail the layout of the kitchen and bathroom cabinets at a larger scale. Available for most plans.

Typical Wall Section This section will address insulation, roof components, and interior and exterior wall finishes. Your plans will be designed with either 2x4 or 2x6 exterior walls, but most professional contractors can easily adapt the plans to the wall thickness you require.

Fireplace Details If the home you have chosen includes a fireplace, the fireplace detail will show typical methods to construct the firebox, hearth and flue chase for masonry units, or a wood frame chase for a zero-clearance unit. Available for most plans.

Foundation Plan These plans will accurately dimension the footprint of your home including load bearing p

Modifications

Want to make changes to a house plan at Family Home Plans?

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: What IRC this plan is this plan designed for? Please advise.

A: It will meet whatever IRC edition is the adopted edition in a particular state or town. The IRC went through a bunch of changes up until about 10 years ago and now the changes are mostly minor tweaks so our plans still meet the current edition. Some jurisdictions are still using the 2015 edition, some the 2018 edition, and some are using the latest, which is the 2021 edition. It updates on a 3-year cycle so the next edition will be the 2024 edition. However, as with anything about building codes, they are written in shades of gray, not black and white. Many times, an inspector may interpret a code edition or code section differently than we have so even though we are confident that our plans comply with all editions of the IRC, it does not mean a plan review for a permit will not bring about comments and changes required by the building department. Additionally, our plans comply with the national version of the IRC. Many states have their own customized versions of the IRC (NC, VA, NY, etc.) so the specific nuances of those codes may contain specific design or construction requirements not contained in the national IRC.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
