3 Car Garage Plan 30023

• PDF File: $450.00
• 1 Set: $250.00
• 3 Sets: $300.00
• 5 Sets: $350.00
• CAD File: $700.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $75.00
• Right Reading Reverse: $50.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $25.00

Additional Notes

Plan includes both 8'0" and 9'0" ceiling heights

Plans are not to be sold in New Jersey or Maryland.

Available Foundation Types:

• Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Garage Area:	1144 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Stem Wall Slab
Exterior Walls:	2x4
House Width:	44'0
House Depth:	26'0
Number of Stories:	1
Max Ridge Height:	16'6 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Framing:	Truss
Main Ceiling Height:	8' and 9'

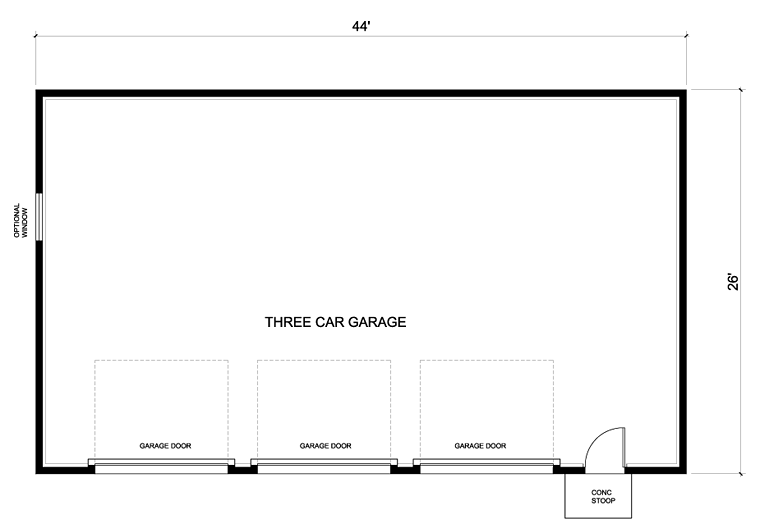

3 Car Garage Plan with Three Garage Doors - 44 Feet Wide X 26 Feet Deep - Detached Model

Contemporary style basic three car garage plan with 3 individual garage doors. A three bay garage design with plenty of space for longer SUVs and pick up trucks. 44x26 feet is a great size for a three stall design. Build a garage, garage building plans, plans to build a garage, garage blueprints, detached garage. Affordable basic three car garage.

Exterior Elevations Scaled drawings of the front, rear, sides of the home. Information pertaining to the exterior finish materials, roof pitches and exterior height dimensions.

Cabinet Plans These plans, or in some cases elevations, will detail the layout of the kitchen and bathroom cabinets at a larger scale. Available for most plans.

Typical Wall Section This section will address insulation, roof components, and interior and exterior wall finishes. Your plans will be designed with either 2x4 or 2x6 exterior walls, but most professional contractors can easily adapt the plans to the wall thickness you require.

Fireplace Details If the home you have chosen includes a fireplace, the fireplace detail will show typical methods to construct the firebox, hearth and flue chase for masonry units, or a wood frame chase for a zero-clearance unit. Available for most plans.

Foundation Plan These plans will accurately dimension the footprint of your home including load bearing p
