House Plan 40041
Split Bedroom Ranch House Plan with Outdoor Fireplace, 1599 Sq Ft, 3 Bed, 2 Bath and a 2 Car Garage
sq ft
1599beds
3baths
2bays
2width
60'depth
55'
click for more images
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1599 sq ft |
| Main Living Area: | 1599 sq ft |
| Garage Area: | 565 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Crawlspace - * $350.00 Slab |
| Exterior Walls: | 2x4 2x6 - * $255.00 |
| House Width: | 59'8 |
| House Depth: | 54'3 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Max Ridge Height: | 27'9 from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Framing: | Stick |
| Porch: | 415 sq ft |
| FirePlace: | Yes |
| Main Ceiling Height: | 10'0 |
Special Features:
Plan Description
Split Bedroom Ranch House Plan with Outdoor Fireplace, 1599 Sq Ft, 3 Bed, 2 Bath and a 2 Car Garage
Ranch House Plan has 1,559 sq ft of living space. 3 beds and 2 baths are all located on one level. At only 59’8 inches wide, this is a great option for narrow lot or corner lot construction. In addition to the open living space, your family will also enjoy 415 sq ft of covered porches. Line up your rocking chairs on the front porch which is 35' wide. Next, plan your cookout on the back porch which includes an outdoor kitchen with ventless fireplace, refrigerator, and built-ins. FamilyHomePlansWhat's Included?
A set of plans includes a cover sheet, all exterior elevations, floor plan (s), your choice of slab, crawlspace or basement foundation plan (on most designs), any necessary cross sections and details, schedules, fireplace details, electrical plan (s), roof plan, and interior elevations.
HVAC, Plumbing and Electrical
Due to regional variations, local availability of materials, local codes, methods of installation, and individual preferences, only the location of fixtures are shown. The duct work, venting and other details will vary depending on the type of heating and cooling system and the type of energy that you use. The details and specifications are easily obtained from your local builder, contractor, and/or suppliers.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: See answers below: What is the height from the top of the ceiling joist to the peak of the roof? (Headroom for attic space) 13-6 Are the ceilings enclosed at 10’ and 12’ or is it vaulted? 10’ everywhere except Great room is 12’. We are wondering about possibly adding a loft or using as storage. Do you have a picture of the back elevation that is not a sketch? Unfortunately we do not have pictures or interior images.. There is room for a small area upstairs. The house has 10’ ceilings everywhere except the great room is 12’. No vaulted ceilings.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click for galleryInfo Brochure
Photographs may show modified designs.
Elevation

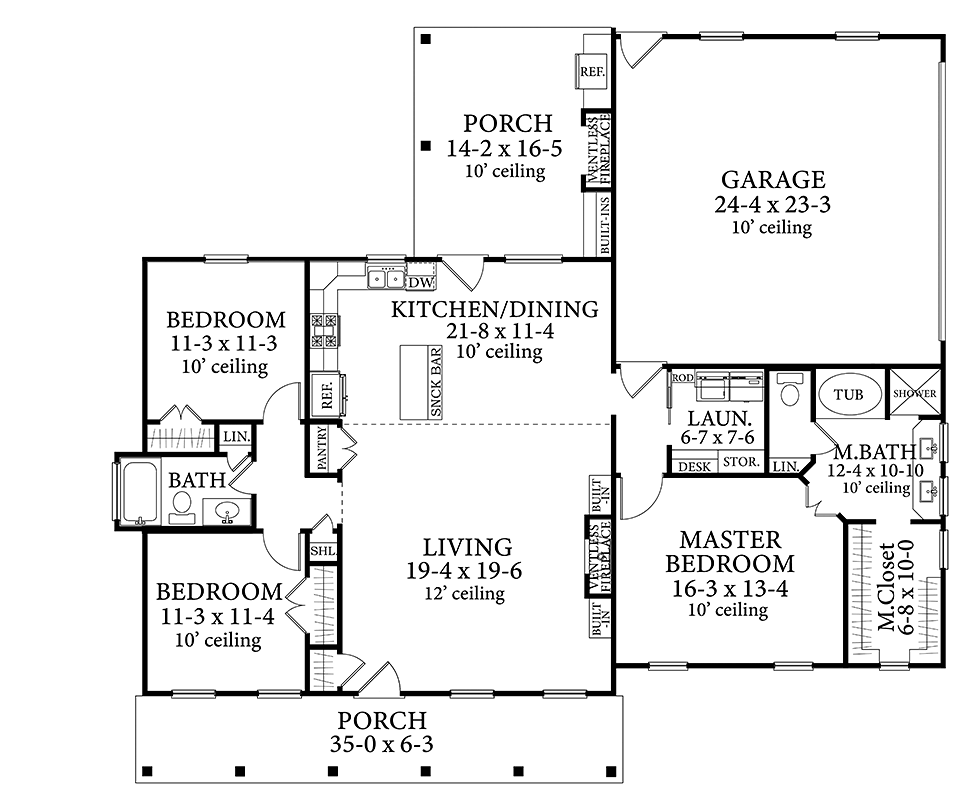

Level One
Quick Specs
1599 Total Living Area1599 Main Level
3 Bedrooms
2 Full Baths
2 Car Garage
59'8 W x 54'3 D
Quick Specs
1599 Total Living Area3 Bedrooms
2 Full Baths
2 Car Garage
59'8 W x 54'3 D
Pricing
PDF File: $1,140.005 Sets: $1,290.00
5 Sets plus PDF File: $1,465.00
CAD File: $2,045.00
more info

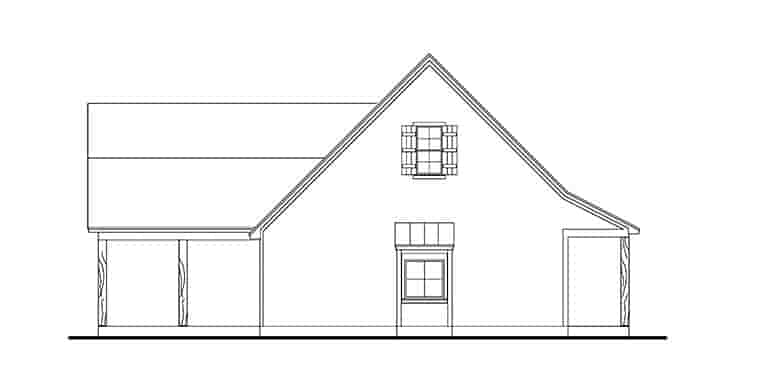

Rear Elevation
Photographs may show modified designs.
