Plan Pricing from $945.00

Plan Pricing

PDF File: $945.00
1 Set: $700.00 **
5 Sets: $800.00
8 Sets: $900.00
Reproducible Set: $945.00
CAD File: $1,700.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $150.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $75.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Additional Notes

If you want vaulted ceilings, make a note in the order notes or call to place the order with a sales rep and tell them you want the vaulted ceiling option. The vault will be as high as the pitch of the roof.

Available Foundation Types:

Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.
Crawlspace : No Additional Fee
Slab : No Additional Fee

Available Exterior Wall Types:

2x4: $150.00
(Please call for drawing time.)
2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	1381 sq ft
Main Living Area:	1381 sq ft
Garage Type:	N/A or Unknown
Foundation Types:	Basement Crawlspace Slab
Exterior Walls:	2x4 - * $150.00 2x6
House Width:	50'4
House Depth:	27'6
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Max Ridge Height:	20'1 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	30 psf
Roof Framing:	Stick
Porch:	675 sq ft
Main Ceiling Height:	8'0

* May require additional drawing time.

Special Features:

Deck or Patio
Front Porch

Plan Description

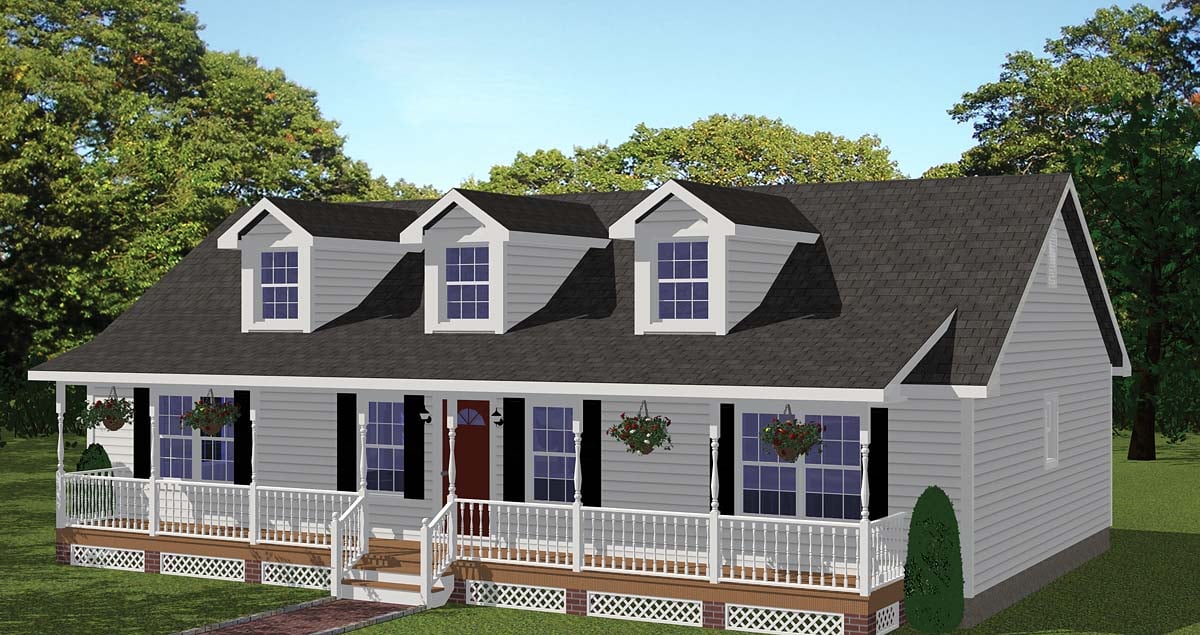

Country Ranch House Plan with Ornamental Dormers

Country Ranch House Plan 40683 is a great choice for your starter home or rental investment because it has 1,381 square feet of living space. The wide front covered porch and decorative spindles add country appeal along with three doghouse dormer windows on the roof. With 3 bedrooms and 2 full bathrooms, it has everything you need. Plus, homeowners like the huge back deck that measures 45' wide by 10' deep. Expertly designed, this floor plan offers open living space and functional rooms in a small footprint.

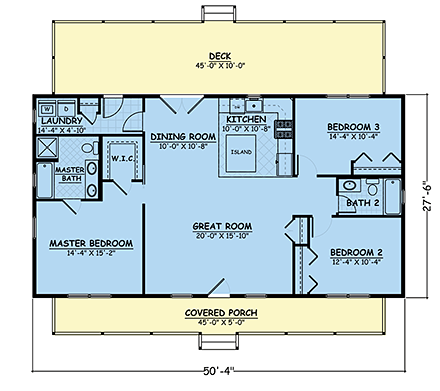

Country Ranch House Plan with Open Floor Plan

This ranch style house is ideal if you love family life but still treasure your privacy. You’ll truly appreciate the lay-out of this home. Let's take a look at a tour of the rooms. Firstly, the great room: step directly into this grand room from the covered front porch, a space that is certain to be the gathering spot for all. The room is open to both the kitchen and dining room allowing for a seamless transition from one room to the next. Secondly, the dining room: we love the sunlight coming in from the French doors to the ample sized rear deck. Open to both the kitchen and the great room, the dining area will not only serve as a spot for the weekday family meals but also for the occasional dinner party.

Thirdly, the kitchen: the center island in this kitchen provides the chef with additional counter space making meal preparations a joy. Open to both the great room and the kitchen allows the chef to interact with the rest of the family. Young families benefit because parents can keep an eye on the kids from any part of the living space. In total, the kitchen measures 10' wide by 10'8 deep, and it will be a joy for Mom and Dad to share learning new recipes together while chatting with the kids who are perched at the island.

3 BD, 2 BA Ranch Style Home Plan

Master Suite: set apart from the secondary bedrooms in the home, is this generous sized master suite. The suite features a large walk-in closet, and a private bath thus providing you with the perfect place to relax after a long day. The bath features a tub, separate shower, and dual vanities adding to the privacy and comfort of the suite. Next, we find the secondary bedrooms on the opposite side of the home. The children's bedrooms share the full guest bathroom. With only two bathrooms, it's easy to clean and maintain the home.

When it comes to getting daily chores done, the utility room is designed for convenience. This utility room is large enough for the washer and dryer and also features a storage closet to help you remain organized. In conclusion, the generous layout of Country Ranch House Plan 40683 is perfect for the young family. It is affordable to build, and the attractive design will fit into any new home development.

What's Included?

Our Plans contain the following pages: C-1 - Color Cover A-1 - Foundation Plan A-2 - Main Level Floor Plan A-2.1 - Upper Level Floor Plan (if applicable) A-3 - Exterior Elevations A-4 - Exterior Elevations A-5 - Roof Plan A-6 - Building Sections D-1 - Construction Details S-1 - Main Level Structural Framing Plan S-2.1 - Upper Level Structural Framing Plan (if applicable) S-2 - Ceiling Structural Framing Plan S-3 - Roof Structural Framing Plan E-1 - Lighting Fixture and Outlet Plan

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Previous Q & A

Q: Do these plans meet 2015 IRC? Do you have a 2x4 wall option? If so, what is the cost? Do you have a walkout basement? Is there an additional cost?

A: This plan meets 2018 IRC. The 2X4 conversion is $150.00. We don’t have a walkout version of this plan.

Q: Will you share the location of the basement staircase?

A: Here you go.

View Attached File

Q: What are the door sizes? Front door and French door?

A: 3068 and 3068-2

Q: What are the sizes of the windows?

A: Most are 3050

Q: How tall will the vaulted ceilings be from floor to peak?

A: It is 14'6".

Q: Does the plan show the footer dimensions for the crawlspace? Do you have a more detailed list of what's included with the plans? The list on the website isn't really enough information.

A: The plan shows complete footing dimensions, locations and details. Our Plans contain the following pages: C-1 - Color Cover A-1 - Foundation Plan A-2 - Main Level Floor Plan A-2.1 - Upper Level Floor Plan (if applicable) A-3 - Exterior Elevations A-4 - Exterior Elevations A-5 - Roof Plan A-6 - Building Sections D-1 - Construction Details S-1 - Main Level Structural Framing Plan S-2.1 - Upper Level Structural Framing Plan (if applicable) S-2 - Ceiling Structural Framing Plan S-3 - Roof Structural Framing Plan E-1 - Lighting Fixture and Outlet Plan

Q: are these rolled blueprints or are they colored copies, what are the dimensions of the hard copy of the plans. I couldnt find in the descriptions how large they are

A: Rolled prints. Page size = 24" H X 36" W. Typically 11 pages per plan set.

Q: What size are the prints? Are the dormers decorative, or do they allow light into the house?

A: The prints are on D-sized (24" X 36") bond grade paper. The dormers are decorative.

Q: Do you have tis floor plan with an attached garage? And reversed.

A: We have a reverse option for this plan but no attached garage version.

Q: I’m having a full basement put in wonder where the stairs would be located keeping everything like drawn

A: Please find plan attached showing basement stairs location.

Q: How big is the island in this house?

A: It is 4'-0" X 4'-6" but the size can be modified by your kitchen designer if required.

Q: What kind of floor joists does this plan come with?

A: The standard plan uses 2X10 floor joists @ 16" O/C.

Q: What are the dimensions of bedroom 2 & 3 closets?

A: Both are 1'-8" deep by 6'-6" wide with a 12" shelf and pole.

Q: What are the closet sizes of bedroom 2 & 3?

A: Both are 1'-8" deep by 6'-6" wide with a 12" shelf and pole.

Q: How Big is the island in the kitchen area?

A: It is drawn as 4'-0" X 4'-6" but you can have it any standard size you want.

Q: Do y’all have the sizes of the bathrooms and walk in closet. Once we see how big they are that will determines which house we pick to order. Thanks

A: The Master Bath is 8'-6" X 8'-6". The W.I.C. is 5'-6" X 5'-10". Bath 2 is 8'-6" X 5'-0".

Q: Where are the mechanicals located?

A: That is up to the HVAC contractor and the builder / owner and generally depends on the foundation type chosen as well as the actual HVAC system itself. With a full Basement most of the units will be in the basement. With a Crawlspace or Slab foundation most will go in the attic.

Q: Is the Living area vaulted? Plan just says 8' ceilings. If not vaulted what are Dormer's for? Thanks,

A: The dormers are decorative. You can eliminate them if you prefer.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
