Plan Pricing from $945.00

Plan Pricing

1 Set: $370.00 **
5 Sets plus PDF File: $605.00
PDF File Unlimited Build: $945.00
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File Unlimited Build: $1,050.00
Unlimited Build License issued on CAD File Unlimited Build orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $80.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $25.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Garage Area:	1078 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	28'0
House Depth:	40'0
Number of Stories:	1
Max Ridge Height:	24'5 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	25 psf
Roof Framing:	Truss and/or Stick
Main Ceiling Height:	14'0

Special Features:

Breezeway

Plan Description

Garage with RV Space for your Motor Home

This traditional garage plan can house either two cars or one car and one RV. The recessed bay has a door that is 10' wide and 10' tall while the RV door is 10' wide and 13' tall. This garage design can be constructed as a free standing garage or can be attached to your existing home with an optional covered breezeway.

What's Included?

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

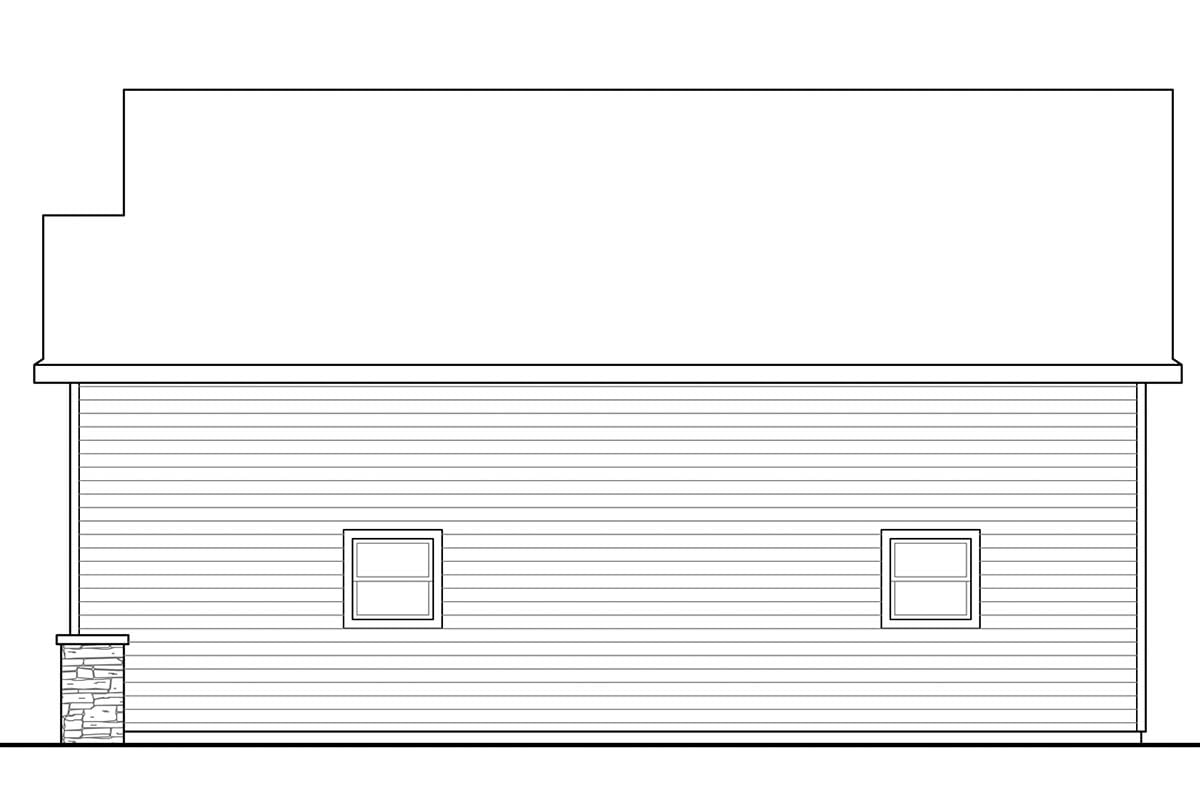

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

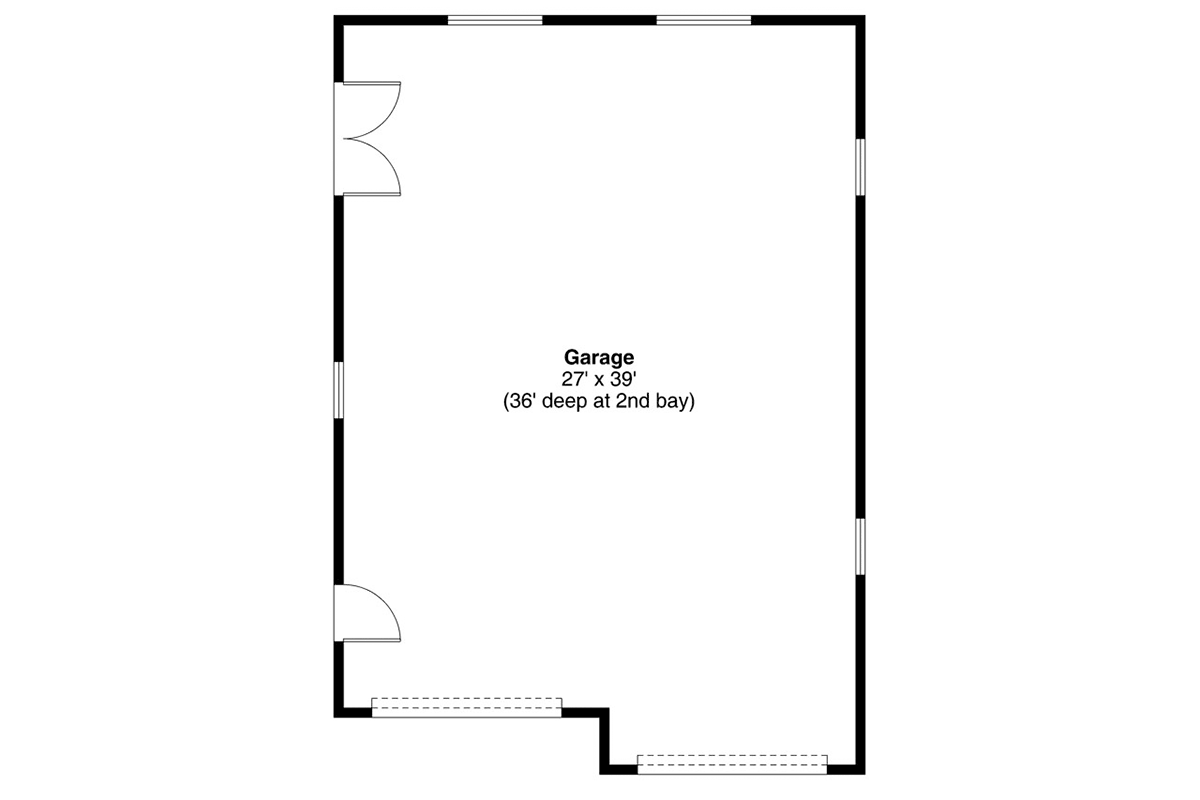

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate:

1) Please Email Us your changes. (Itemized list of changes with details)

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: garage door height for rv?

A: The RV garage door is 10’ wide by 13’ tall.

Q: What is the mid line ridge height?

A: The peak of the garage is 24’ 5” high. Thank you!

Q: Does the slab also come with a footer plan? Garage door dimensions for both overhead doors? Does the breezeway come with the plan? Thank you

A: Thank you for your interest in plan 41248. • The foundation plan for this plan will show an 8” concrete stem wall and an 18” concrete footing. • The RV garage door is 10’ wide x 13’ tall and the recessed garage door is 10’ wide x 10’ tall. • The construction drawings will show a concrete stoop that transitions into the breezeway. Since the breezeway is optional and site dependent the construction of that will need to be verified by your contractor and truss manufacturer. The section of covered stoop that is provided with the plans is approximately 8’ x 7’ and is centered on the man door. Please let us know if you have any other questions on this design.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
