House Plan 43322

Single Level Modern Home Plan with 22' Stacking Door | Plan 43322

sq ft

3264

beds

baths

3.5

bays

width

100'

depth

88'

Turn ON Image Gallery

Add to cart

Plan Pricing from $1,995.00

Plan Pricing

PDF File: $1,995.00
1 Set: $995.00 **
5 Sets: $2,145.00
8 Sets: $2,245.00
Reproducible Set: $2,195.00
CAD File: $2,595.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $150.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $75.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

Crawlspace : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	3264 sq ft
Main Living Area:	3264 sq ft
Garage Area:	996 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Crawlspace
Exterior Walls:	2x6
House Width:	99'4"
House Depth:	87'10"
Number of Stories:	1
Bedrooms:	3
Full Baths:	3
Half Baths:	1
Max Ridge Height:	19'8" from Front Door Floor Level
Primary Roof Pitch:	0
Roof Framing:	Stick
Porch:	320 sq ft
FirePlace:	Yes
1st Floor Master:	Yes

Special Features:

Front Porch
Outdoor Kitchen
Pantry
Rear Porch
Study

Plan Description

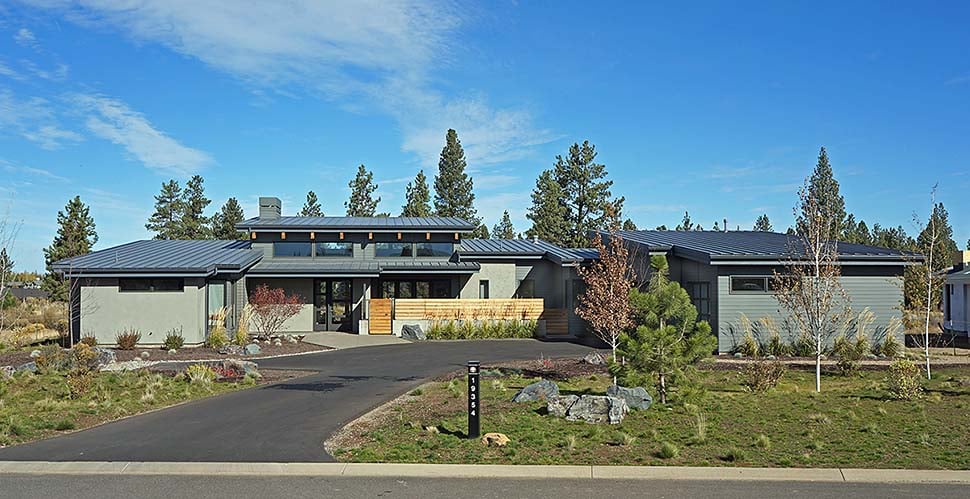

Single Level Modern Home Plan with 22' Stacking Door

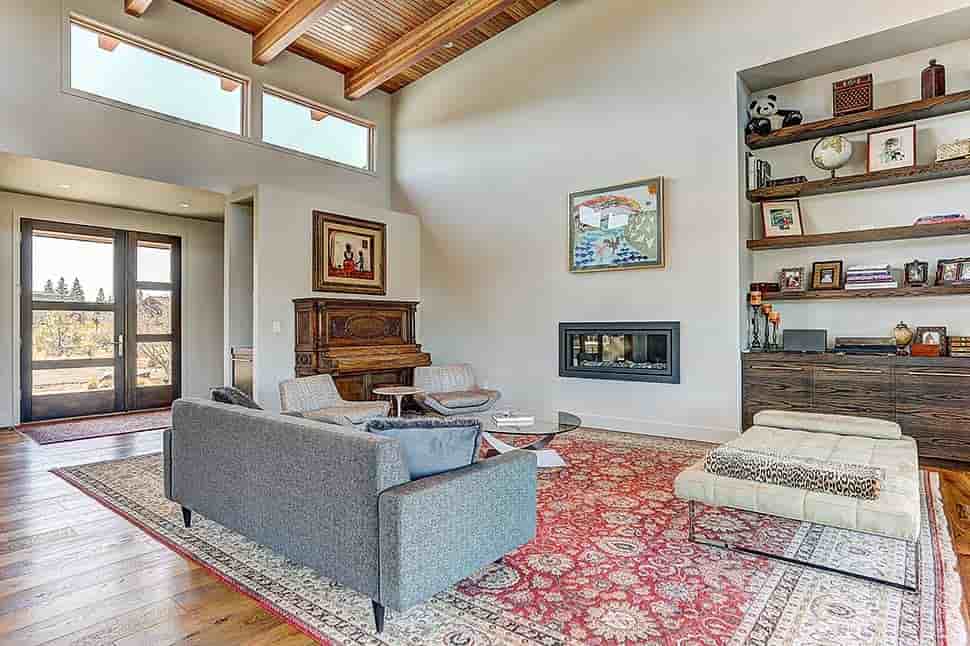

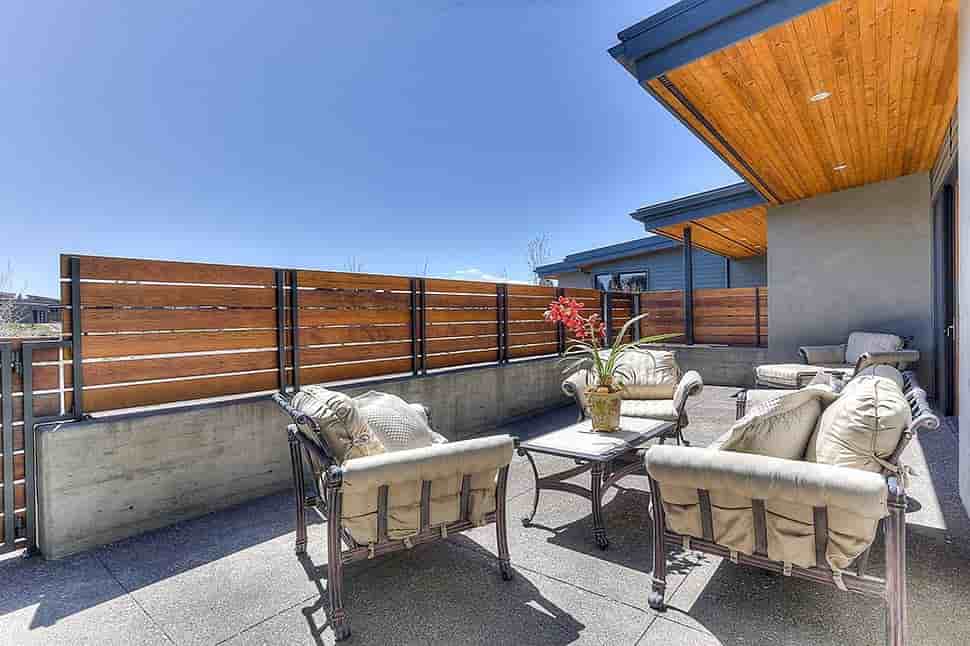

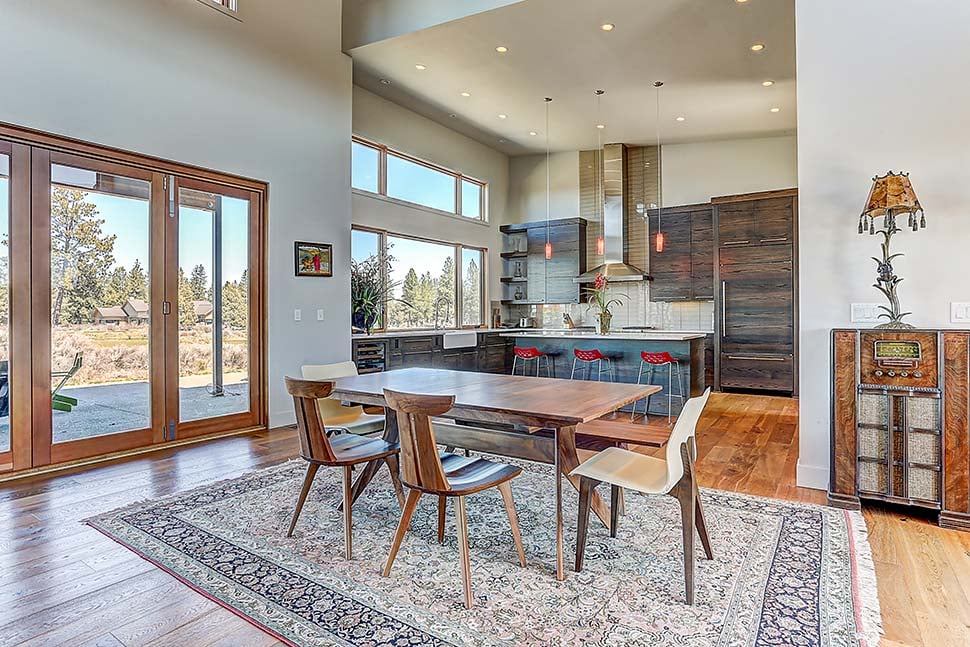

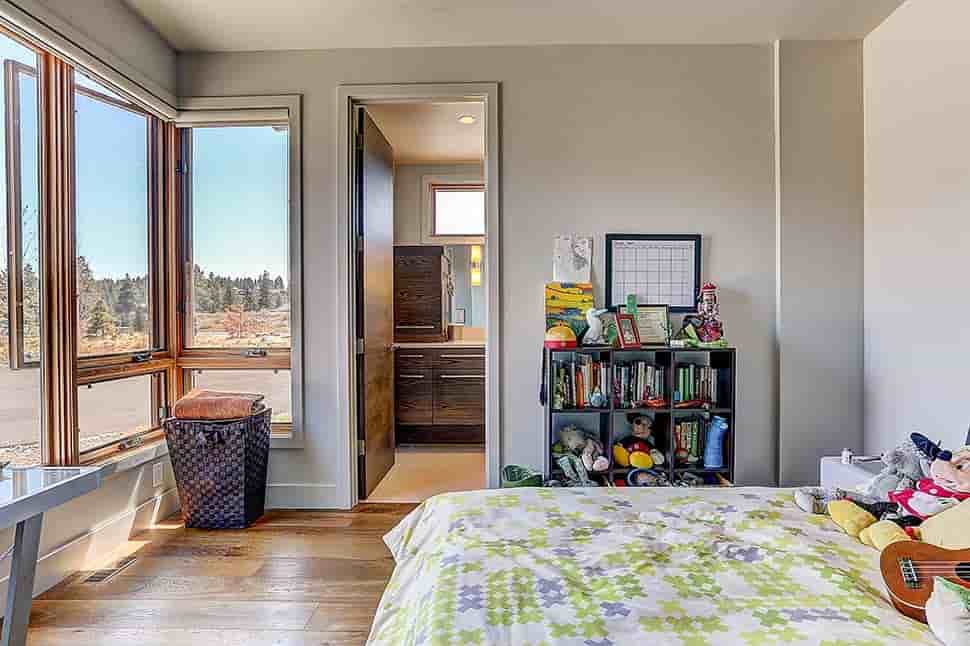

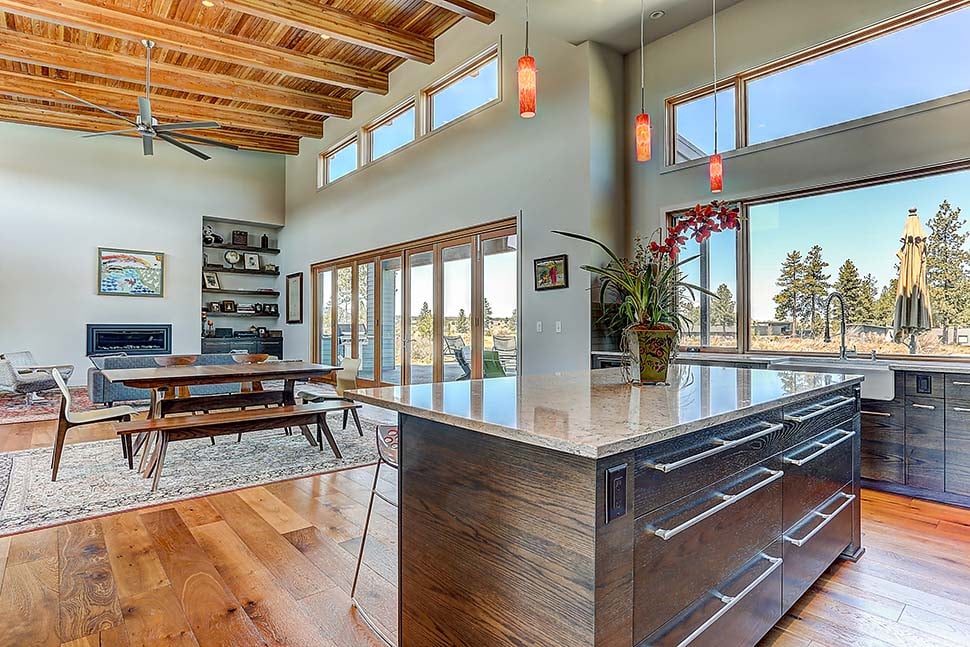

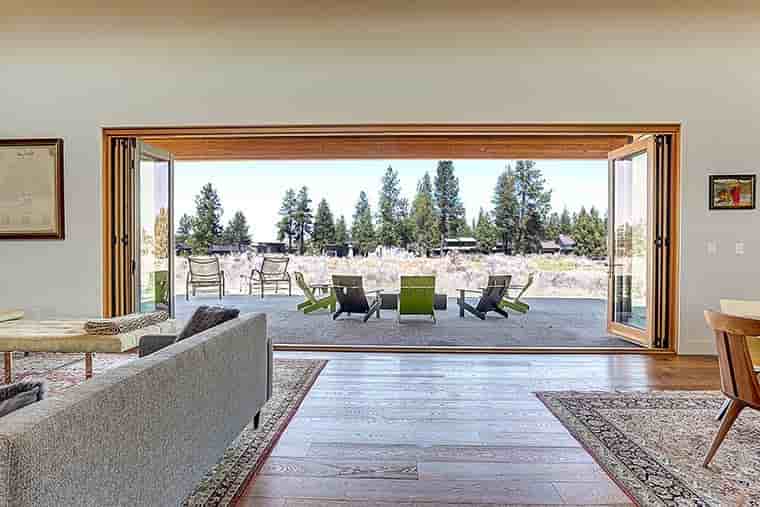

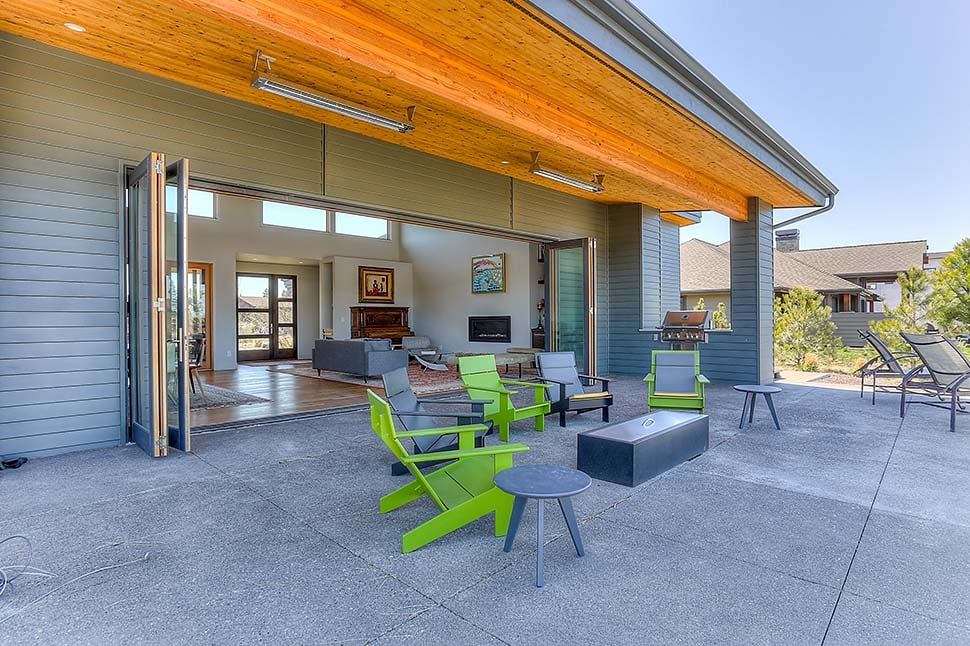

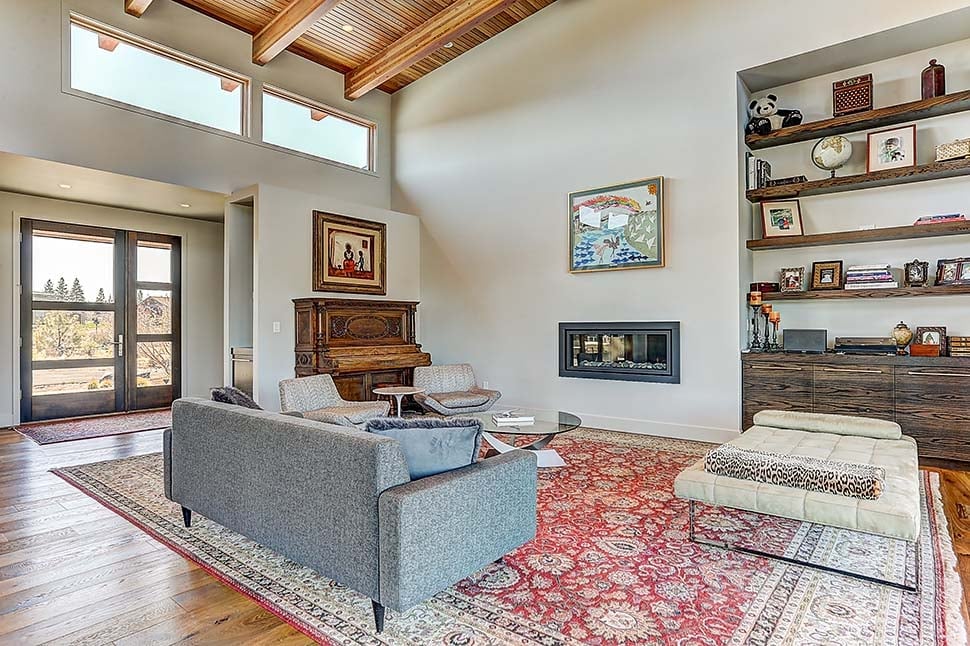

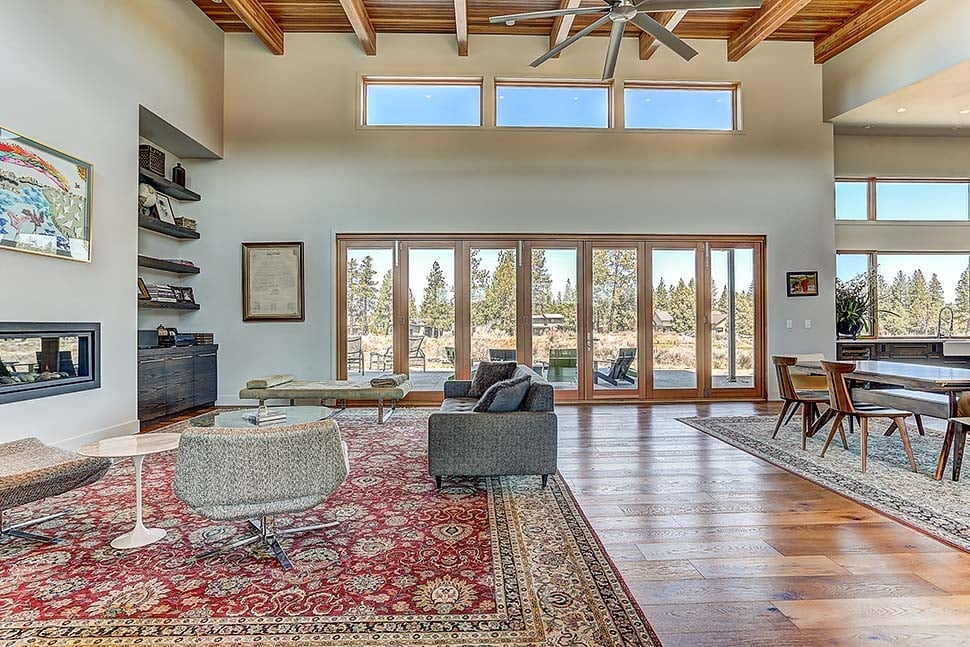

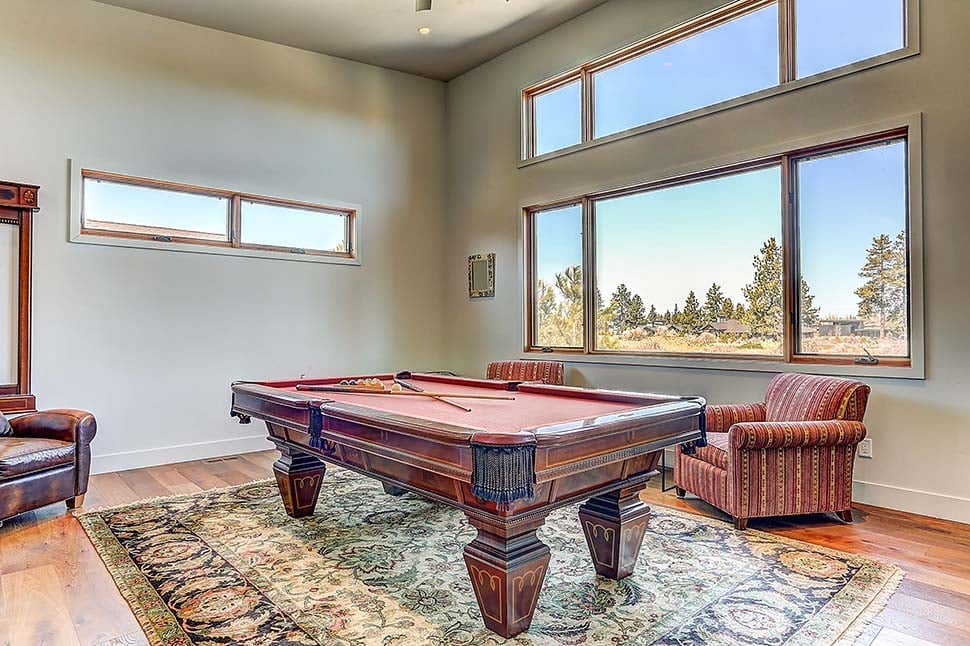

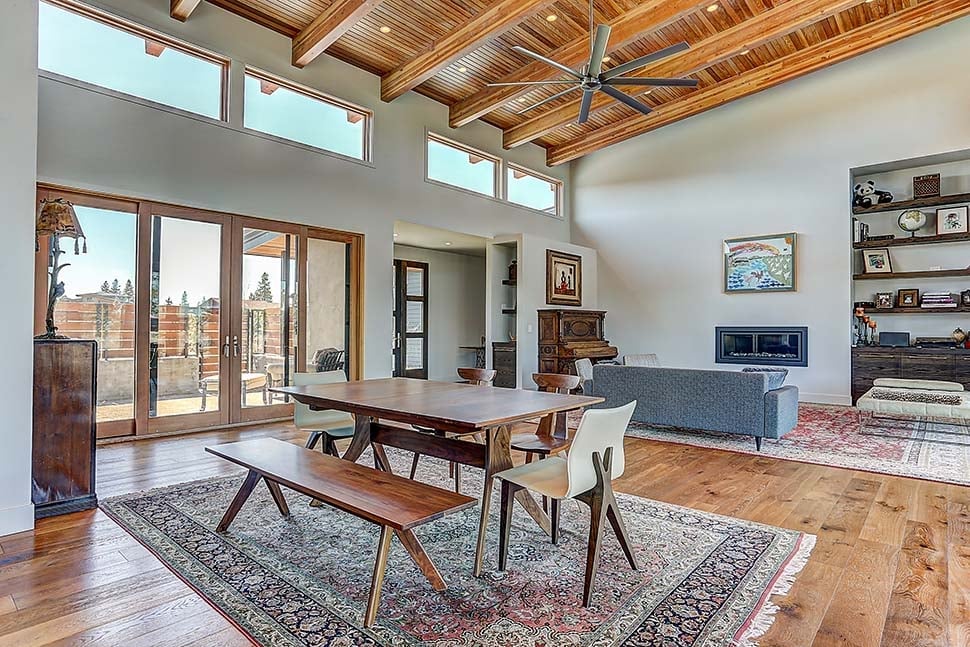

This single level modern home has an 18' high shed vault with clerestory windows on both sides in the great room, with a 22' wide stacking door opening to the covered area outside. THe great room also opens to a screened patio area at the front of the home. The master is separated from the other two bedrooms, which each have their own bathroom. A large game room is next door to the bedrooms. The floorplan is spacious, open and light, yet cozy.

What's Included?

Foundation Plan

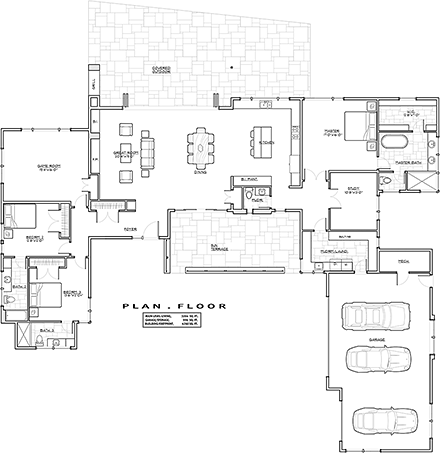

Dimensioned Floor Plan: shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section: shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations: show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan: provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable.
Electrical Plan: shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details: provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

Architectural or Engineering Stamp
Site Plan

Mechanical Drawings (location of heating and air equipment and duct work)

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)

Framing layouts with beam sizes and locations

Energy calculations

Materials list

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: Is there anyway I could see a sample of what the roof actually looks like for the builder before I commit to the house to buy?

A: Yes. Its $395 upgrade.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
