Garage-Living Plan 50596
New American Style with 2 Bed, 3 Bath, 2 Car Garage
sq ft
2249beds
2baths
2.5bays
2width
36'depth
50'
click for more images
Plan Pricing
Additional Notes
RV Garage Ceiling Height: 14 ftAvailable Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2249 sq ft |
| Main Living Area: | 713 sq ft |
| Upper Living Area: | 1536 sq ft |
| Garage Area: | 1087 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 2 |
| Foundation Types: | Basement - * $250.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $250.00 Slab - * $250.00 Stem Wall Slab Walkout Basement - * $250.00 Total Living Area may increase with Basement Foundation option. |
| Exterior Walls: | 2x4 - * $175.00 2x6 |
| House Width: | 36'0 |
| House Depth: | 50'0 |
| Number of Stories: | 2 |
| Bedrooms: | 2 |
| Full Baths: | 2 |
| Half Baths: | 1 |
| Max Ridge Height: | 28'9 from Front Door Floor Level |
| Primary Roof Pitch: | 6:12 |
| Roof Framing: | Truss |
| Main Ceiling Height: | 10' |
| Upper Ceiling Height: | 9' |
Special Features:
What's Included?
Pages
1. Notes
2. Basement/Foundation
3. Main Floor
4. Upper Floor
5. Main Floor Framing
6. Upper Floor Framing
7. Roof Framing
8. Front/Rear Elevations
9. Left Right Elevations
10. Cross Sections
11. Basement Electrical
12. Main Floor Electrical
13, Upper Floor Electrical
14. Details
In the case of single story plans, Pages 4, 6, and 13 are eliminated.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: The current RV door size is 18' wide x 12' tall. This plan could be modified to allow for a 14' tall door.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

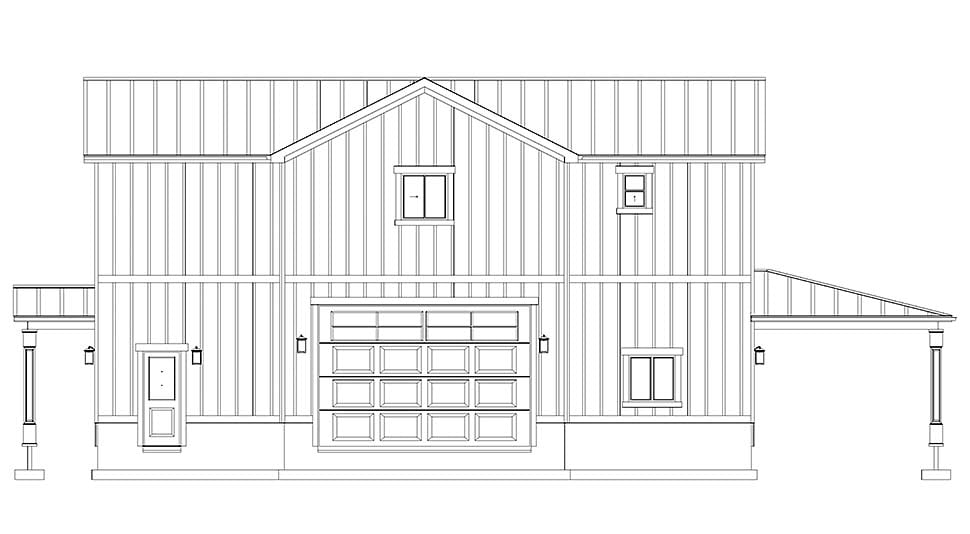

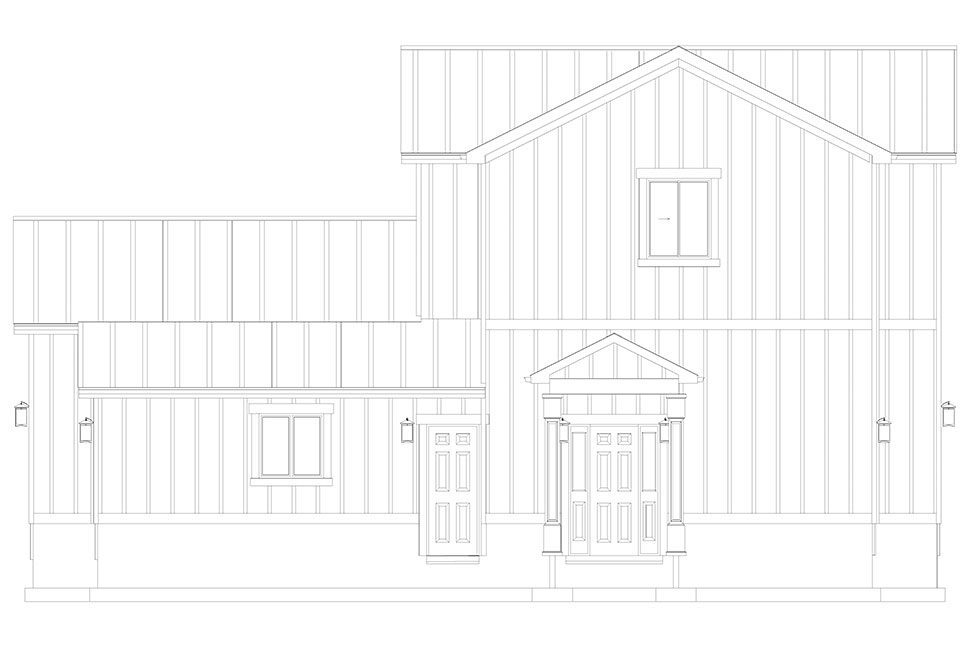

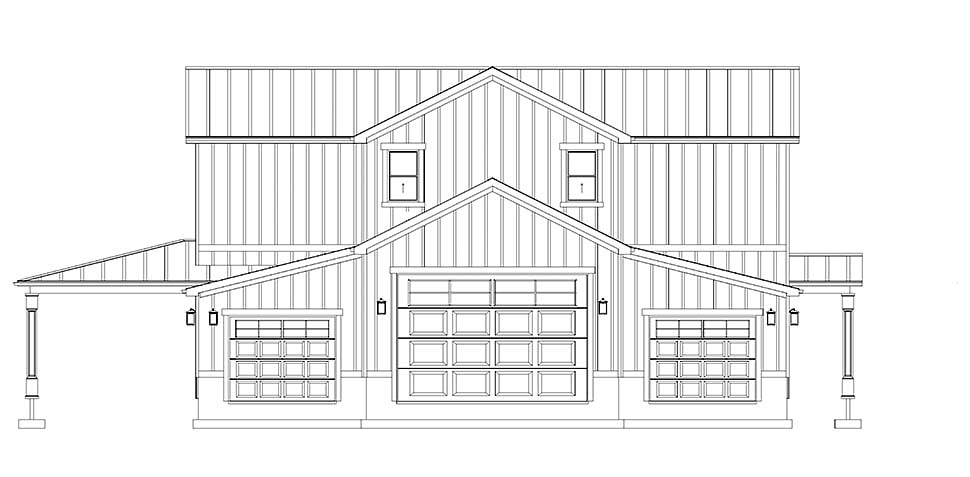

Elevation

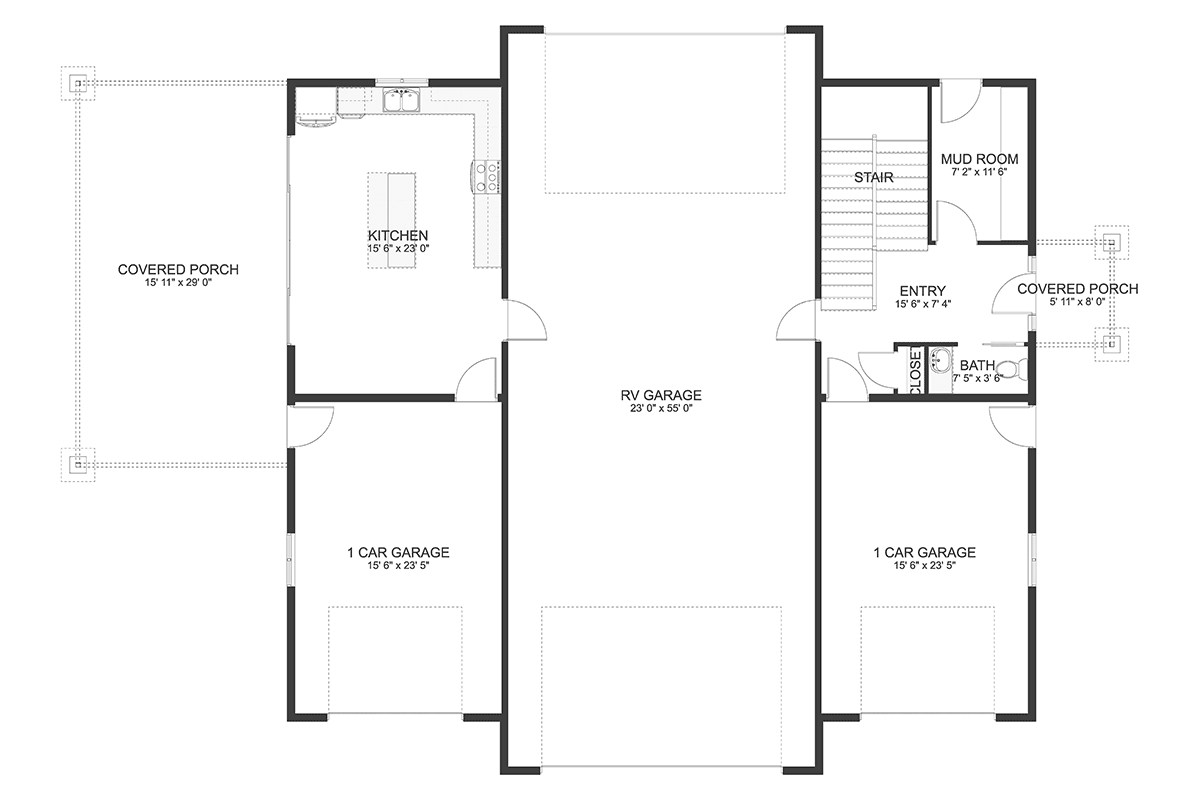

Level One

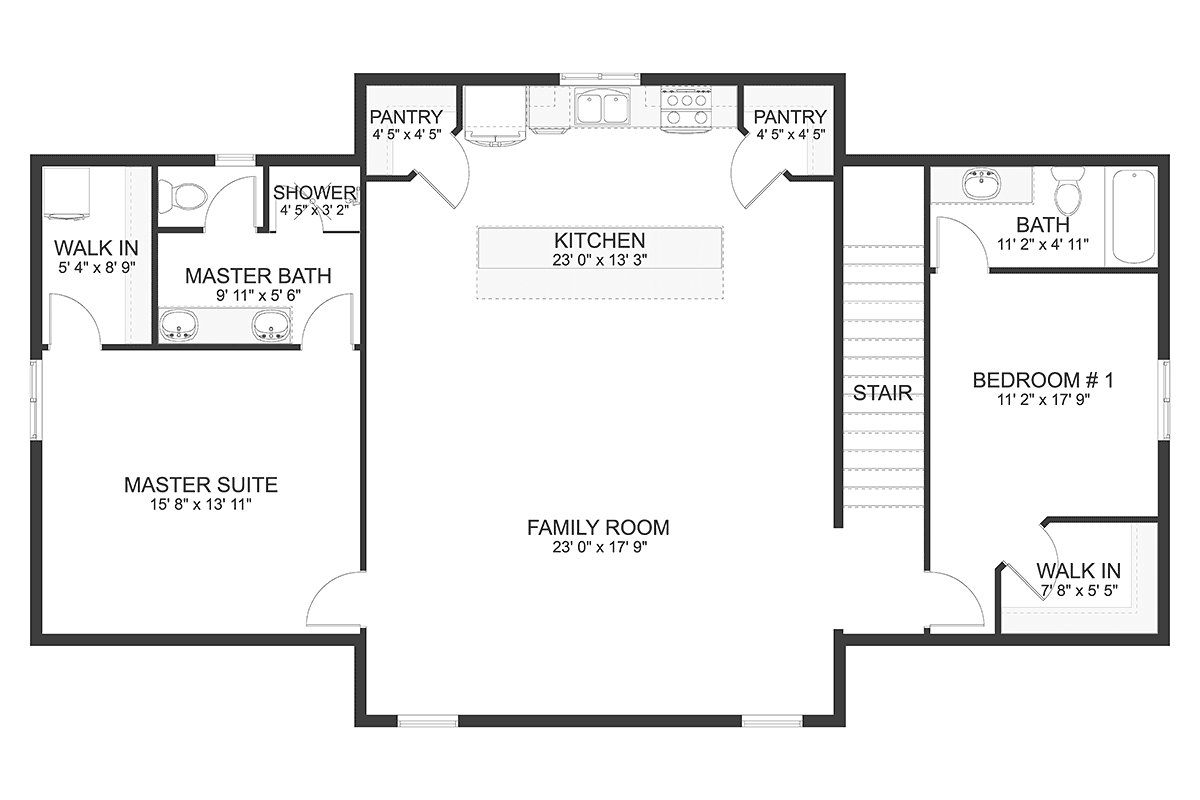

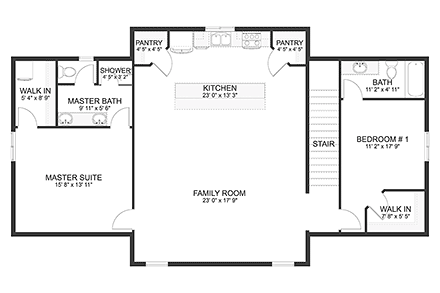

Level Two
Quick Specs
2249 Total Living Area713 Main Level
1536 Upper Level
2 Bedrooms
2 Full Baths, 1 Half Baths
2 Car Garage
36'0 W x 50'0 D
Quick Specs
2249 Total Living Area2 Bedrooms
2 Full Baths, 1 Half Baths
2 Car Garage
36'0 W x 50'0 D
Pricing
PDF File: $700.005 Sets plus PDF File: $1,025.00
Unlimited Use PDF: $825.00
CAD File: $1,150.00
more info

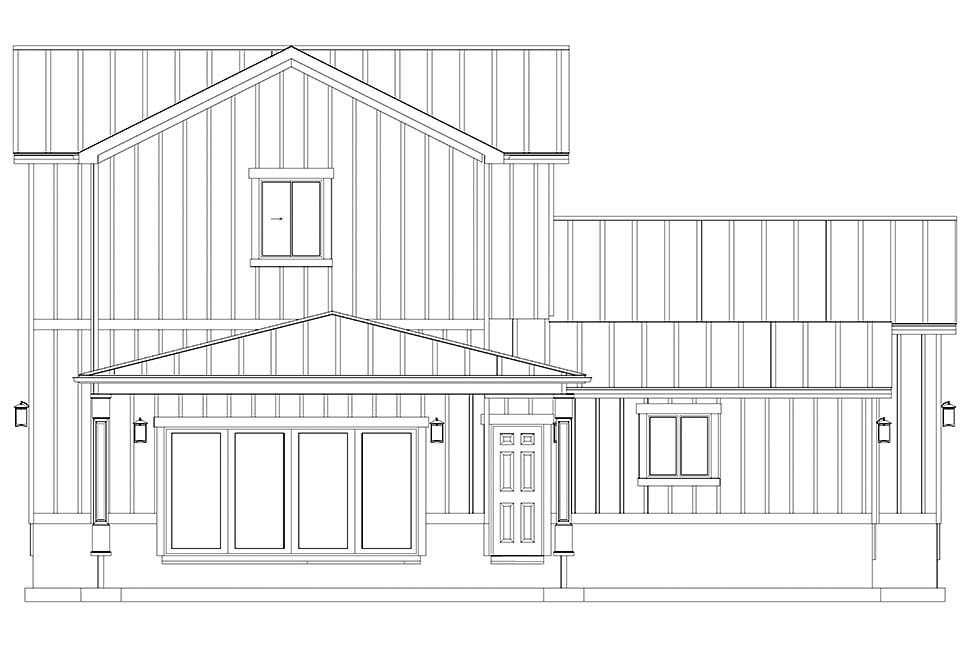

Rear Elevation
Photographs may show modified designs.
Buy This Plan
Have any Questions? Please Call 800-482-0464 and our Sales Staff will be able to answer most questions and take your order over the phone. If you prefer to order online click the button below.
