Turn OFF Image Gallery

Add to cart

Plan Pricing from $1,595.00

Plan Pricing

PDF File: $1,595.00
5 Sets plus PDF File: $1,845.00
PDF File Unlimited Build: $2,295.00
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File Unlimited Build: $2,695.00
Unlimited Build License issued on CAD File Unlimited Build orders.
Materials List: $250.00
Important Notice: Material list only includes materials for the base slab and crawlspace versions. Basement and 2x6 wall options NOT included.
Right Reading Reverse: $225.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional License Fee: $495.00
Provides you with one additional license to build (a total of two builds).
Additional Sets: $100.00

Unlimited License To Build included with CAD file sale.
CAD file sale also includes PDF file. Materials list will NOT reflect any options that have an additional fee because those are modifications. If you buy a materials list, it will only reflect the standard original plan. All of our CAD files are delivered in .DWG format and do not contain any type of 3D capability. Files are delivered in 2004 format so that older software versions will be able to open the files.

\

Available Foundation Types:

Basement : $395.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Crawlspace : $100.00
May require additional drawing time, please call to confirm before ordering.
Slab : No Additional Fee
Walkout Basement : $395.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

2x4: No Additional Fee
2x6: $325.00
(Please call for drawing time.)

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	3044 sq ft
Main Living Area:	3044 sq ft
Garage Area:	736 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $100.00 Slab Walkout Basement - * $395.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x4 2x6 - * $325.00
House Width:	74'0
House Depth:	82'10
Number of Stories:	1
Bedrooms:	4
Full Baths:	3
Half Baths:	1
Max Ridge Height:	23'0 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Load:	30 psf
Roof Framing:	Stick
Porch:	246 sq ft
FirePlace:	Yes
Main Ceiling Height:	9'0

* May require additional drawing time.

Special Features:

Dropzone
Office
Pantry
Rear Porch
Storage Space

Plan Description

Texas Ranch Style Home Floor Plan with 3044 Sq Ft, 4 Beds, 4 Baths and a 3 Car Garage

Texas Ranch Style Home Floor Plan 51983 has 3,044 square feet, 4 bedrooms, and 3.5 baths. Mom and Dad love this plan because they get a luxury ensuite and big walk-in closet. Kids love this plan because they have a dedicated game room. Bigger is better in Texas. This Texas Ranch Style Home Plan has everything you want and more!

Texas Ranch Style Home Floor Plan With Rustic Appeal

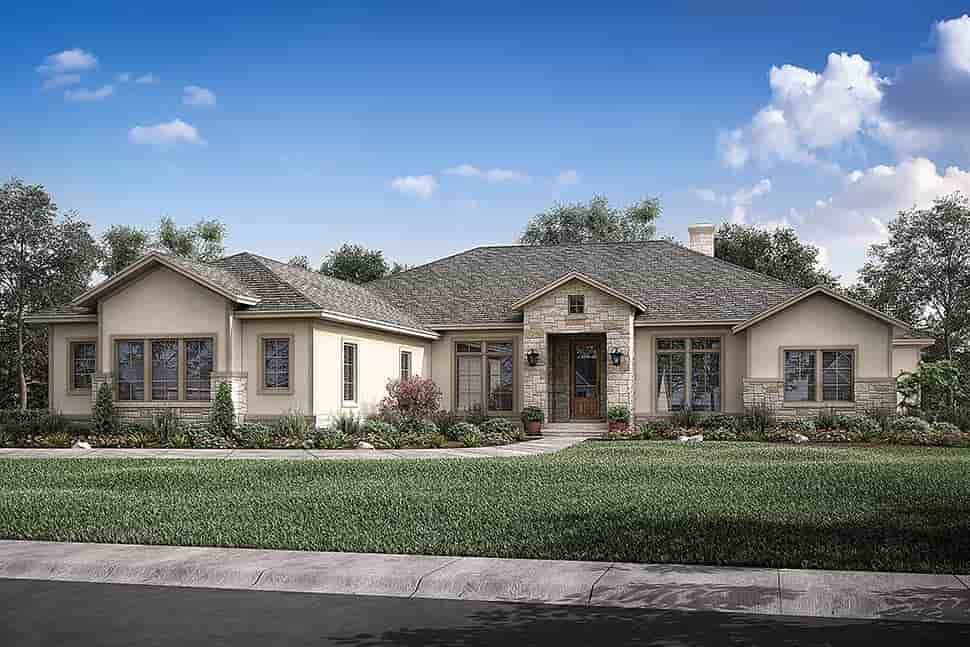

Earthy materials such as stone and wood give your home curb appeal. Stone siding is used as an accent on the covered front porch. The double front door is stained in a rich wood tone, but it's mostly glass. Notice the decorative window in the eave of the porch and the welcoming lanterns at the entry.

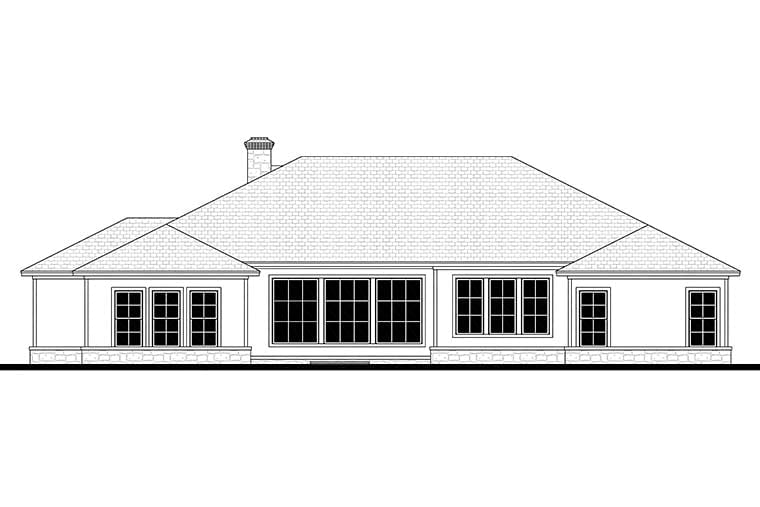

Texas Ranch Style Home Floor Plan 51983 has a big covered back porch. Your family will have so much room to relax because it measures 19'10 wide by 9’10 deep. Set up a picnic table and the biggest grill you can find. Give your kitchen a break. Flip burgers and grill steak outside at any time of the year. Memories are made here.

Open Living Space

Your first thought upon entering the great room will be: “This is big!” The great room is big in every direction you look, whether it’s up or around. The ceiling is vaulted, and the room is 19'2 wide by 17'8 deep. One wall has a wood burning fireplace with a built-in cabinet on the left. Light floods inside because of the big windows on the porch side. Not to mention, the wide entryway into the kitchen further opens the space. Traffic flows smoothly throughout the living area.

Finish the kitchen in Texas Ranch Style Home Floor Plan 51983 with stone counters, floor-to-ceiling cabinets, and of course, the ever-popular stainless steel appliances. Lots of kids can sit at the island eating bar. They can finish homework here in the kitchen and tell you about their day. Natural light brightens the dining room due to the windows on two sides.

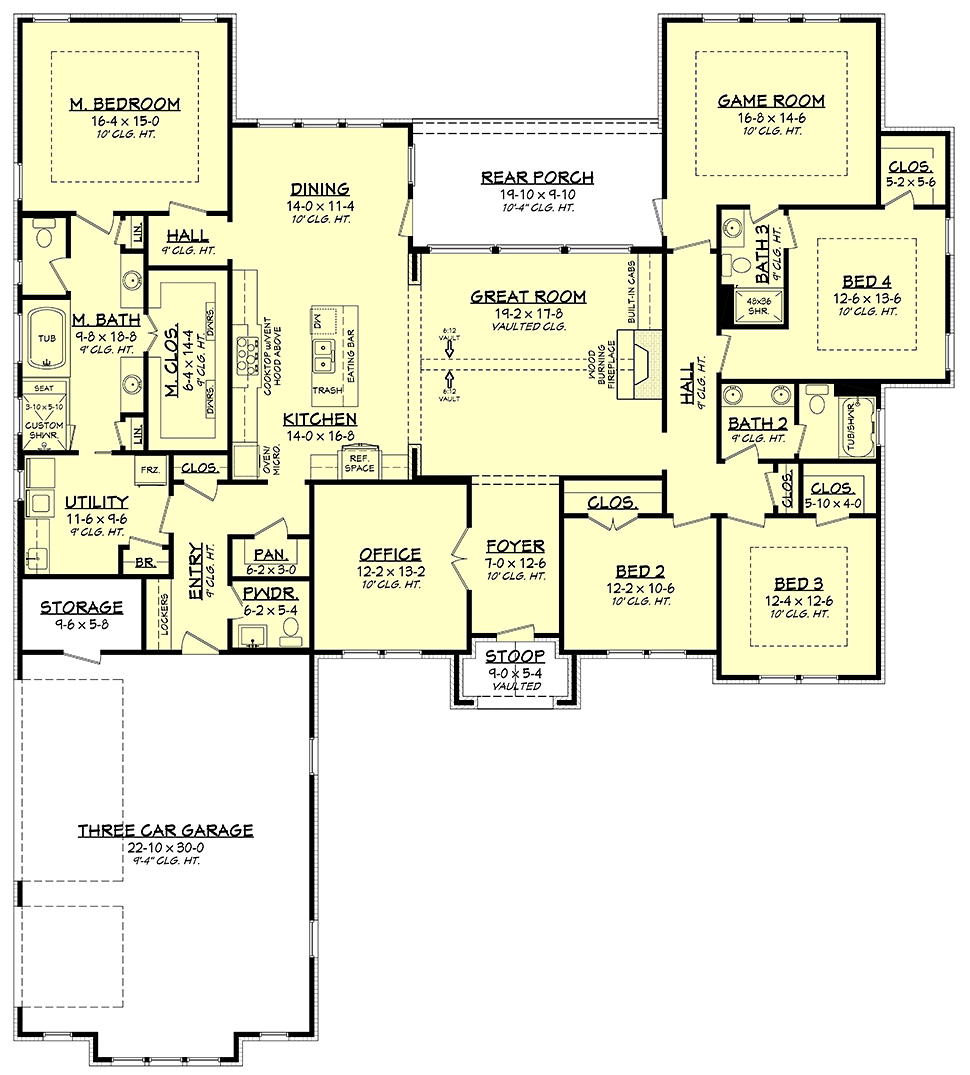

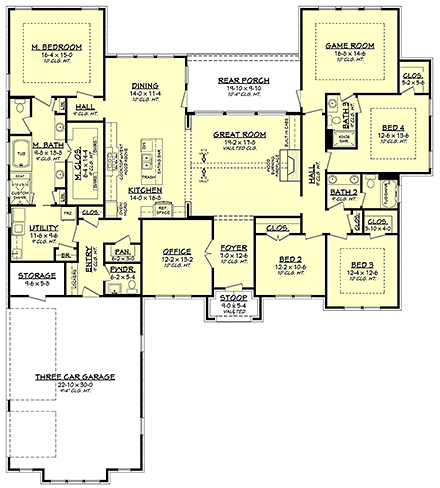

House Plan With 4 Bedrooms

That’s right, 4 bedrooms makes room for a big family! The biggest and best is the master bedroom which is located on the left side of the house. This Texas Ranch Style House Plan has a split-bedroom layout. The primary bedroom has a giant ensuite. We’ve included a custom shower, separate tub, his and her vanities, two linen closets, and private water closet. The closet measures 6'4 wide by 14'4 deep which affords the couple plenty of storage space for those 10 gallon hats.

The children’s bedrooms are located on the right side of the house. Two bedrooms have a walk-in closet. Bedroom 4 shares a convenient Jack and Jill bathroom. In addition, the kids will love that they have a game room right outside of their bedrooms. It features a tray ceiling and wide open space for an air hockey table or billiards table.

Other great features for Texas Ranch Style Home Floor Plan 51983 are listed below:

Home office which is accessed through a set of French doors from the foyer.
Large laundry room with counter space, utility sink, and freezer.
Drop zone locker storage at the garage entry.
Powder room conveniently located at the garage entrance.
3 car garage with extra storage room.

In conclusion, there is a place for everything in this large home. Whether you are entertaining or enjoying time with family, the options are sure to impress.

What's Included?

Cover Sheet – May include index, front view of home, definitions, etc.

Foundation Plan – Typically includes dimensioned foundation plan with footing details.

Dimensioned Floor Plan – Electrical may be shown.

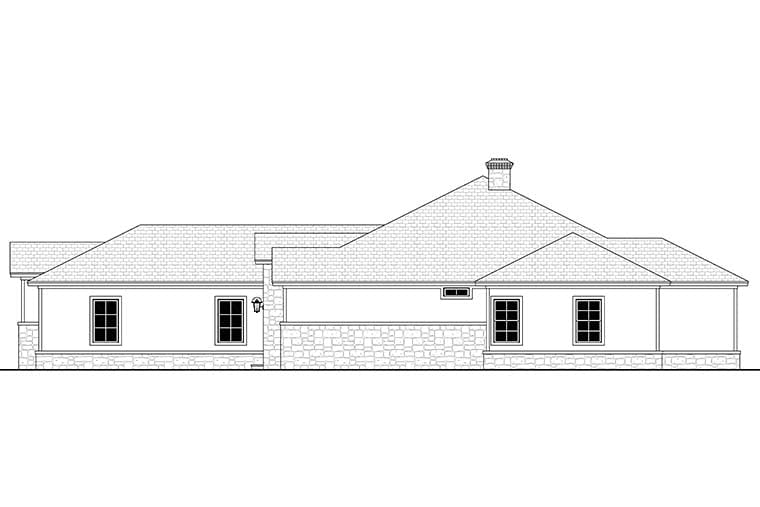

Exterior Views – Four exterior views of the residence with other miscellaneous details.

Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.

Electrical Plan – Displays lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches are NOT shown and should be located by contractor at site.

Wall Section(s) – Detail of wall materials and assembly.

Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.

Cabinet Elevations – Displays interior kitchen cabinet views.

ITEMS NOT INCLUDED

Mechanical Plans - Because of varying site conditions, mechanical plans such as plumbing and HVAC plans are not included. These items are easily obtained by your mechanical contractor or material supplier.

Site Plans – If required, this information must be obtained locally to include the information specific to your individual property.

Structural Calculations – In certain areas, particularly those in earthquake and hurricane zones, permit departments may require you to submit structural calculations for your particular conditions. When required, you should consult with a local structural engineer.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Email Designer This is the best and quickest way to get a modification quote!

Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.

It's as simple as that!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: Behind the showers in bedrooms 3 and 4, what is the black area? Is it plumbing?

A: Wall cavity. Plumbing can be located in this area.

Q: I'm going to build on a crawlspace. If I choose the 2x6 wall option, will that change the foundation?

A: No....the 2x6 walls are above the subfloor and will not affect the foundation.

Q: Can you please provide the garage door sizes? Thank you!

A: The large door is 16 x 8 and the smaller door is 8 x 8.

Q: The beam located between the Kitchen & Great Room and the beam running parallel to the kitchen & Great Room… are those decorative or load bearing. Also the beam at the end of the foyer… I think that is load bearing. Am I correct ?

A: All of these beams are load bearing.

Q: Is that a window on the eave of the porch above the front door? Does it allow light into the porch? Is the front door area big enough to fit a double door? Do you have a 4 car garage option? Does the plan show a custom closet detail in the master bedroom?

A: There is a window in the gable above the front entry, but it is not functional and is only for aesthetics. The front foyer is wide enough to accommodate a double door (a 5' would be enough to allow trim on both sides). We do not have a 4 car option, but one could be added via a modification to the plans. The plans do not show closet details since these will be selected by the owner based on budget.

Q: Is there attic storage?

A: Attic space is accessed via a pull down stair in the garage. Storage space is available, but ceiling joists will need to be properly sized to accommodate the additional weight of storage. Headroom in the attic will be limited due to the low pitch of the roof.

Q: Hi do your plans include structural and foundation ?

A: A foundation plan is included, but structural drawings are not included because they rely on information specific to each building site.

Q: What are the dimensions for the island in Kitchen?

A: Island dimensions are 3-8 x 8-0

Q: Is this plan available in Universal Design standards?

A: It is not.

Q: is the basement height is 9’ or is the basement wall 9’?

A: The distance from the basement floor to the bottom of the floor joists above is 9'-4".

Q: I have the basement stair location, but will you send the basement floor plan image?

A: The basement is unfinished, so there is not a floorplan for the basement level.

Q: What is the basement ceiling height?

A: Approximately 9'

Q: Is the square footage measured from the outside or inside wall?

A: The square footage is measured to the outside edge of the studwall...not including masonry.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
