Plan Pricing from $3,860.00

Plan Pricing

PDF File: $3,860.00
CAD File: $3,860.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $437.50
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

PLAN RESTRICTIONS: CANNOT BE SOLD TO BE BUILT IN LEE OR COLLIER COUNTIES, FLORIDA

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

2x4: $437.50
(Please call for drawing time.)
2x6: $437.50
(Please call for drawing time.)
2x8: $437.50
(Please call for drawing time.)
Concrete: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

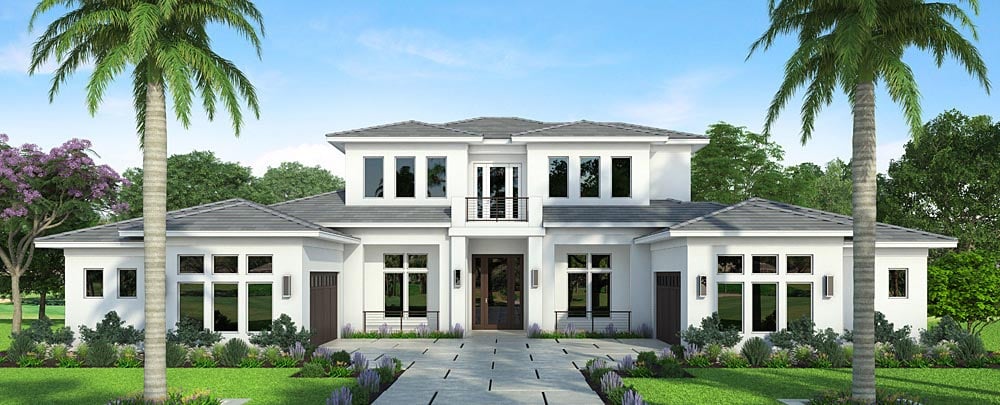

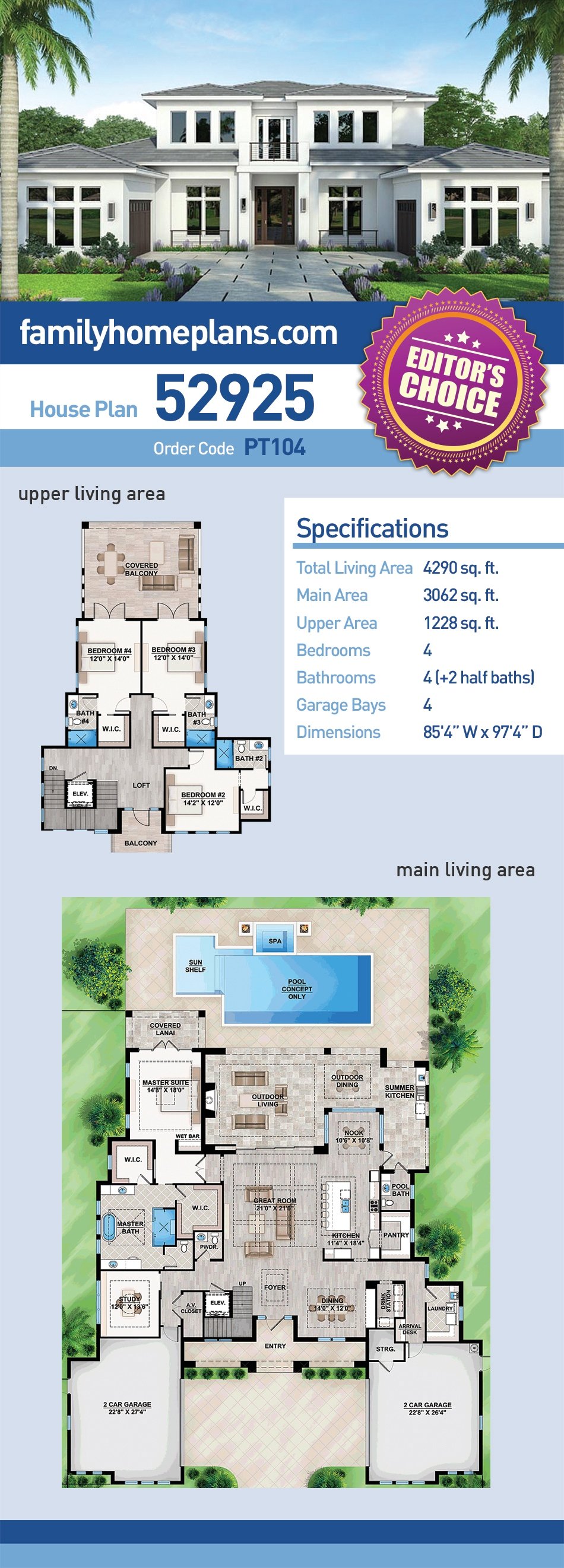

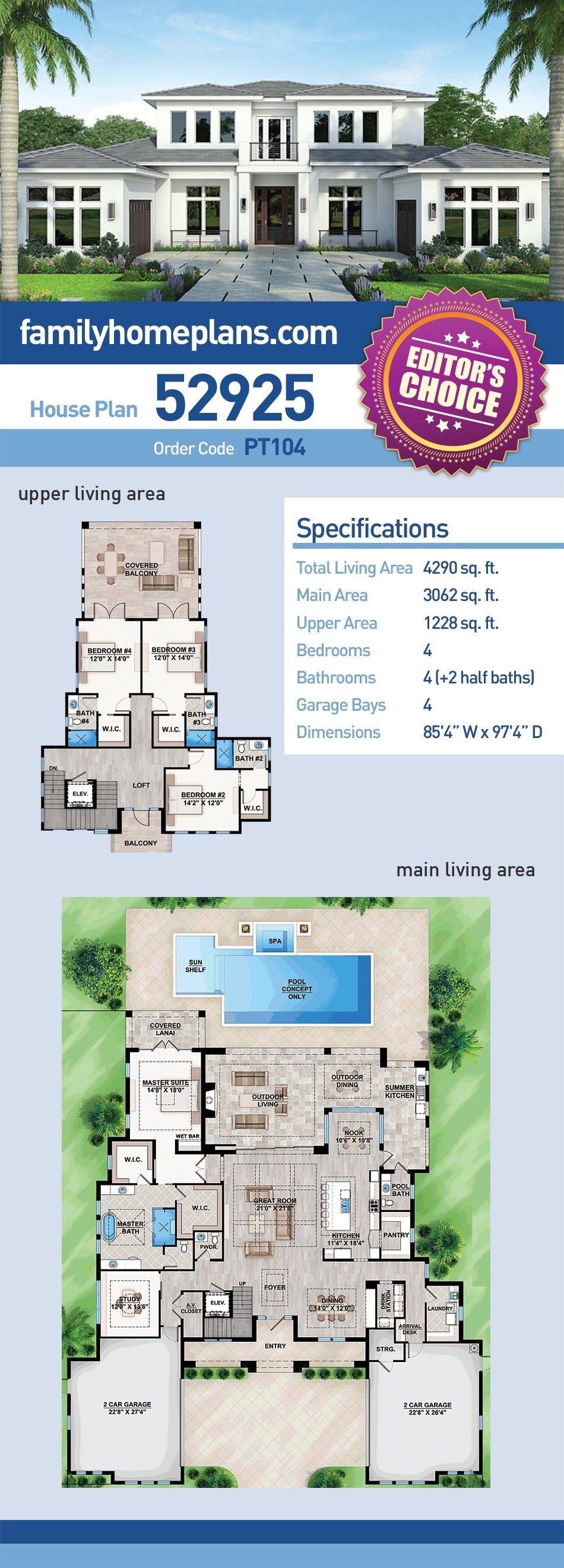

Specifications

Total Living Area:	4290 sq ft

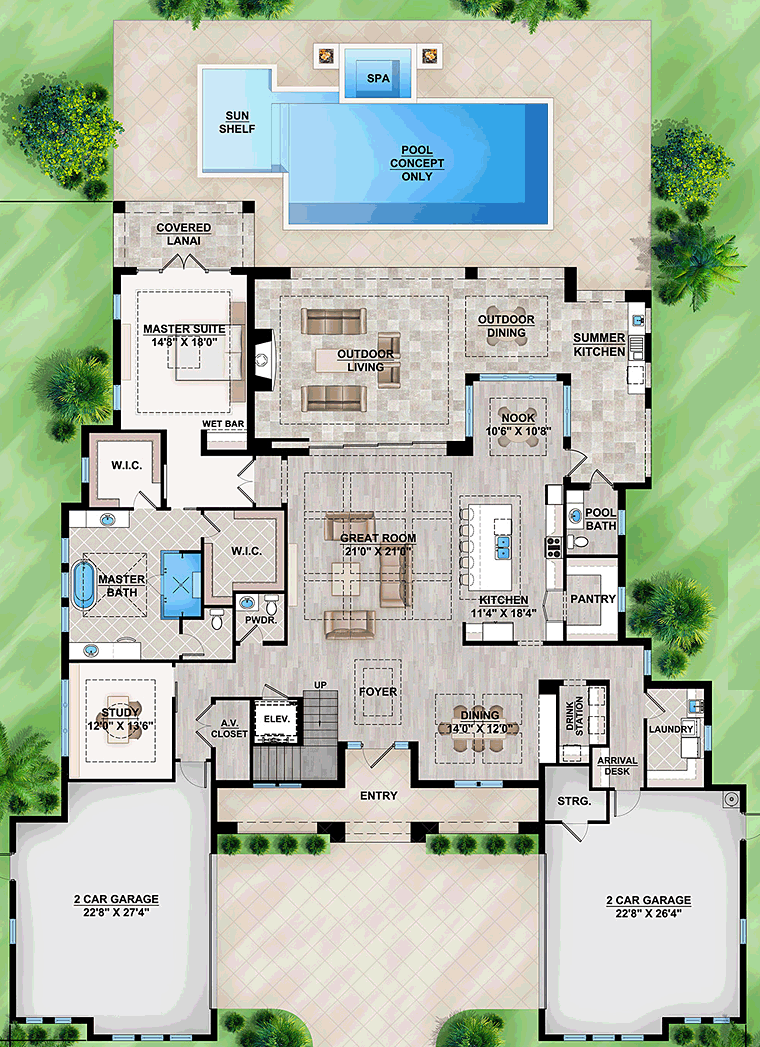

Main Living Area:	3062 sq ft

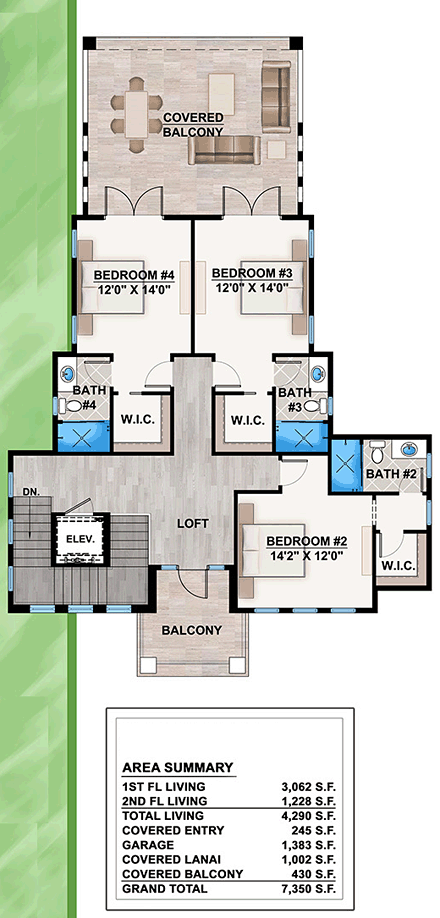

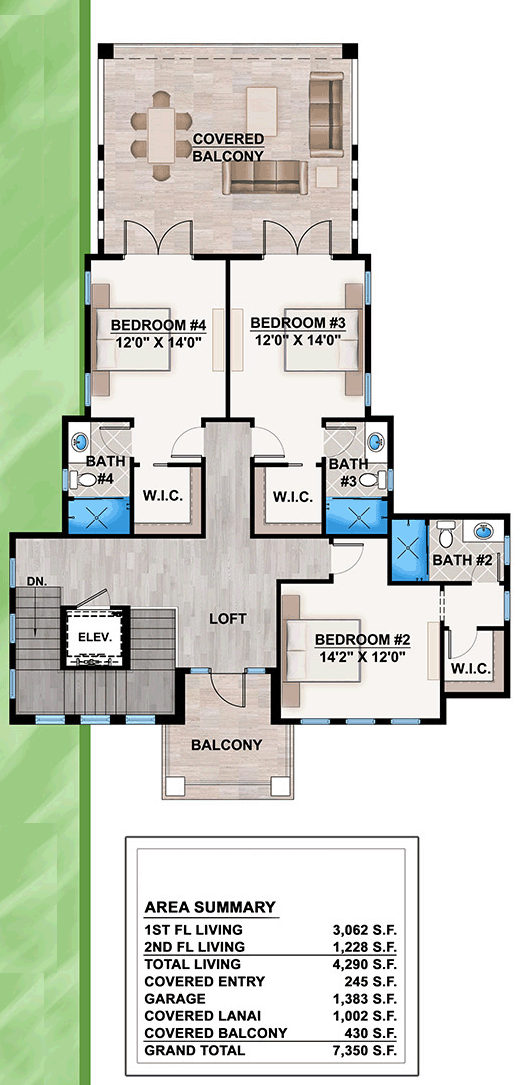

Upper Living Area:	1228 sq ft
Garage Area:	1383 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Slab
Exterior Walls:	2x4 - * $437.50 2x6 - * $437.50 2x8 - * $437.50 Concrete
House Width:	85'4
House Depth:	97'4
Number of Stories:	2
Bedrooms:	4
Full Baths:	4
Half Baths:	2
Primary Roof Pitch:	4:12
Roof Framing:	Truss
Porch:	1432 sq ft
1st Floor Master:	Yes

* May require additional drawing time.

Special Features:

2nd Floor Balcony
Lania
Outdoor Kitchen
Outdoor Pool

What's Included?

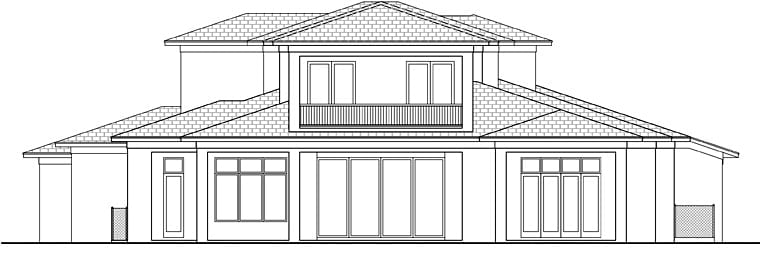

Elevations:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

Floor Plans:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Sizes

Electrical Layouts:
*Building Section Markers
*Electrical Outlets, Fixtures and Switching

Slab Plan:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Rough-in Plumbing Location (if applicable)
*Mechanical Equipment Locations (if applicable)
*Electrical Locations (if applicable)

Roof Design Plan:
Drawn to 1/8" to 1/4" = 1’0" scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers

Building Sections:
Drawn to 1/8" to 1/4" = 1’0" scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness

Miscellaneous Notes and Details:
*Miscellaneous General Notes
*Stairway Details (if applicable)

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Previous Q & A

Q: Where is the upper living area positioned in relation to the first floor?

A: Good morning. Thanks for your inquiry. If you line up the elevator on the first floor with the elevator on the 2nd floor, you can see where the second floor is located. The upstairs balcony will be above the 1st floor outdoor living space.

Q: Do you have ceiling heights for this plan? Are all of the interior walls concrete as well or just the exterior walls? If interior walls are not concrete what size 2x_ is spec'd?

A: Thank you for your inquiry. The first floor exterior walls are concrete (CMU) and the second floor exterior walls are 2x6. The interior walls are a combination of 2x4 and 2x6. Here are the ceiling heights…please let me know if you have additional questions. Thanks. Master Bedroom: dropped / 11'4"/12'0" Master Bath: vaulted / 12' Great Room: coffered / 12'/12'8" Dining Room: coffered / 12'/12'8" Kitchen: dropped / 11'4"/12'0" Entry: flat / 13' Foyer: coffered / 12'/12'8" Study: dropped / 11'4"/12'0" Bedroom 2: flat / 10' Bedroom 3: flat / 10' Bedroom 4: flat / 10' Baths: flat / 10' Lanai: coffered / 12'/12'8" Laundry: flat / 11'4" Garage: flat / 10'

Q: I really like this plan a great deal but I do not know if can fit on my lot. The total dimensions are not provided. Could you please provide the totals for the width and depth? I would also like the dimensions of all the rooms that do not have dimensions provided please. Also, if you have dimensions for the outdoor living spaces (excluding the pool/spa) that would be terrific. Do you think it would be possible to add a fireplace somewhere in the great room? Thank you!

A: The overall dimensions are 85’4” wide and 97’4” deep. That does not include the pool area…just the structure. We would be happy to assist with placement on your lot. We would need your survey and setback requirements. There is no charge for this service. Yes, a fireplace can be added to the great room. The cost would be $170 plus the CAD or PDF purchase. Here are the room dimensions that are not provided on the rendering: Entry: 10’10”x37’4” Foyer: 9’4”x12’0” Drink Station: 5’6”x9’0” Laundry: 11’6”x6’8” Pantry: 9’8”x6’0” Elevator: 5’0”x5’0” Pool Bath: 7’6”x6’0” Powder Bath: 5’6”x5’8” Master Bedroom Closet 1: 8’4”x8’8” Master Bedroom Closet 2: 9’4”x9’4” Lanai/Outdoor Living: 20’2”x24’6” Lanai/Outdoor Dining: 12’4”x12’3” Lanai/Summer Kitchen: 21’0”x8’8” Loft: 9’0”x11’6” Front Balcony: 10’4”x9’6” Bath #2: 5’6”x10’0” Bedroom #2 Closet: 5’6”x5’4” Bath #3: 10’0”x5’6” Bedroom #3 Closet: 6’0”x6’0” Bath #4: 10’0”x5’6” Bedroom #4 Closet: 6’0”x6’0” Covered Balcony: 18’8”x23’0” Thank you for your inquiry.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.

FHP Low Price Guarantee

If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
