House Plan 52931

• PDF File: $3,915.00
• CAD File: $3,915.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $437.50
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

PLAN RESTRICTIONS: CANNOT BE SOLD TO BE BUILT IN LEE OR COLLIER COUNTIES, FLORIDA

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: $437.50
  (Please call for drawing time.)
• 2x6: $437.50
  (Please call for drawing time.)
• 2x8: $437.50
  (Please call for drawing time.)
• Concrete: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	4350 sq ft
Main Living Area:	3228 sq ft
Upper Living Area:	1122 sq ft
Garage Area:	897 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x4 - * $437.50 2x6 - * $437.50 2x8 - * $437.50 Concrete
House Width:	86'8
House Depth:	79'5
Number of Stories:	2
Bedrooms:	4
Full Baths:	4
Half Baths:	1
Primary Roof Pitch:	4:12
Roof Framing:	Truss
Porch:	1164 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	12'0

* May require additional drawing time.

Special Features:

• 2nd Floor Balcony
• Deck or Patio
• Dropzone
• Lania
• Office
• Outdoor Fireplace
• Outdoor Kitchen
• Outdoor Pool
• Storage Space

Mediterranean Style Home Floor Plans Great for Florida or Coastal Areas

When it comes to choosing a house plan for new construction, photos can be the deciding factor. Mediterranean House Plan 52931 is now available with awe-inspiring interior and exterior pictures!

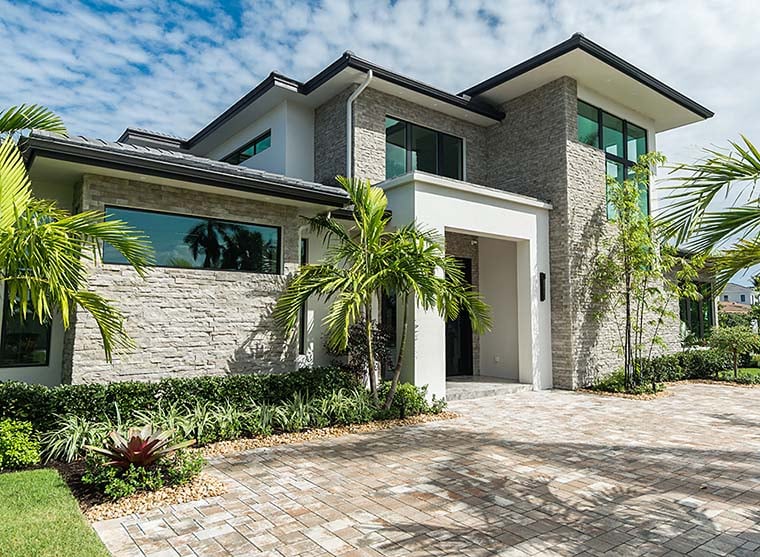

This home would be equally suited for a residential neighborhood in Texas or built on a beach house in Florida. Mediterranean features such as the low-pitched tile roof, stucco exterior and the luxurious balcony on the upper floor are major selling points.

A large family will be very comfortable in this home because it has 4,350 square feet of living space, 4 bedrooms and 4.5 bathrooms. The home plan dimensions are 86'8 wide x 79'5 deep.

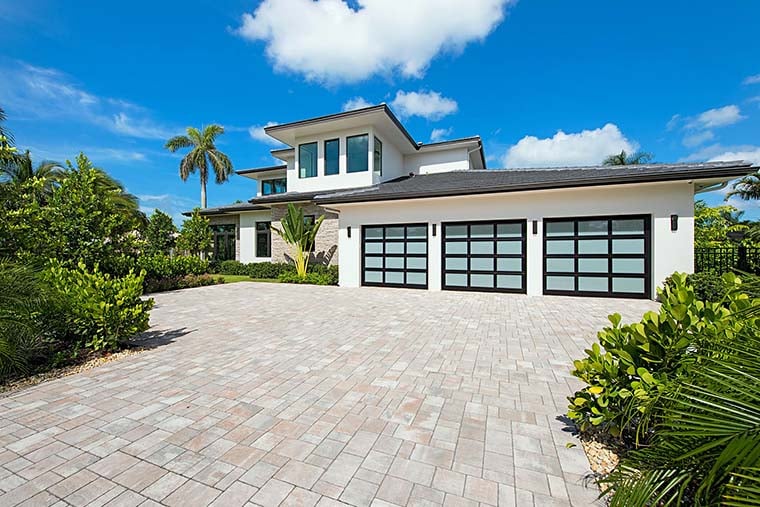

For parking, a side entry garage is available in the rear of the house for 3 vehicles. If you need more vehicle storage or perhaps a guest house, check out our garage apartment plan collection.

Mediterranean House Plan With Outdoor Living Space

If you build in a tropical location, the outdoor living space can be utilized almost all year 'round. After a dip in the pool (or the ocean), you can escape from the sun in the expansive covered living space in the rear of the home.

The summer kitchen is ready to serve your family in the outdoor dining area. You will never run out of space, so be sure to find the largest table you can.

Set up comfortable rattan furniture and lounge around the fireplace. If your climate is always warm, set up some candles in the fireplace for a little ambience.

Don't forget the balcony upstairs. This area is set apart for star-gazers. Access the balcony from the French doors in bedroom 3 or from the loft. It's also a great vantage point to watch the crashing waves if you build on a beach property.

Interior Living Space With Luxury

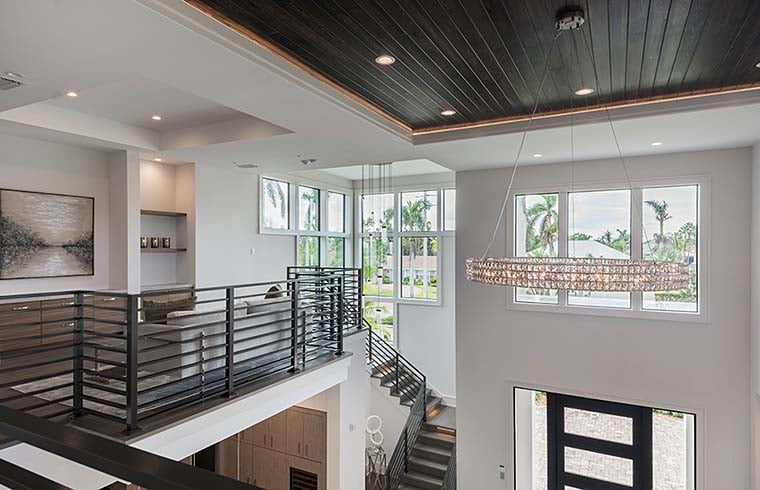

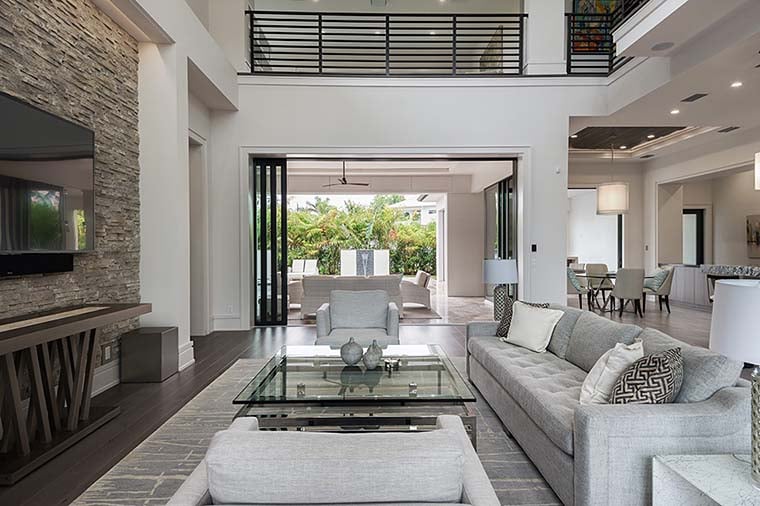

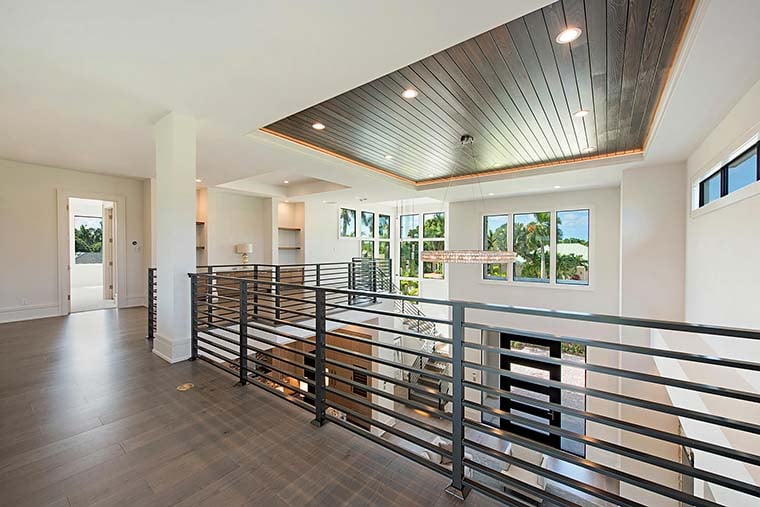

The great room has a coffered ceiling that extends from 24' to 25'. From here, you can see the iron railing of the upper level loft which is a great design element of the Modern Mediterranean House Plan. The glass doors can be fully rolled back to make a seamless transition between the inside and outside living space.

Notice the wood ceiling feature over the dining area. This is a creative way to designate areas of the house rather than enclosing rooms with unnecessary walls. Coastal homes should have open floor plans that will not block the breezes coming in from the beach.

Modern finishes really bring out the luxury in this kitchen, and the multicolored stone and tiles give it an exotic vibe. Guests can sit at the island eating bar and chat with the cook. You will never run out of supplies because there is a walk-in pantry which could easily be designed as a hidden pantry.

Bedrooms With Special Features

Bedroom 3 has a private bathroom and access to the balcony through a set of French doors. Bedroom 4 has a walk-in-closet.

Bathroom 4 is available for anyone who is enjoying recreation in the loft or the balcony.

This house plan is easily adaptable to be handicap accessible due to the elevator and open living space.

Bedroom 2 is located on the main level and has a walk-in closet and private bath. This would make a nice guest room. On the opposite side of the house is the master suite which has a 12'-13' coffered ceiling. Bright light filters into the room due to abundant windows. Light-colored paint is a refreshing reflection of the sandy beach outside.

Speaking of the beach, you can enjoy a nice view from the sitting area if you need to stay inside the air conditioning for a while.

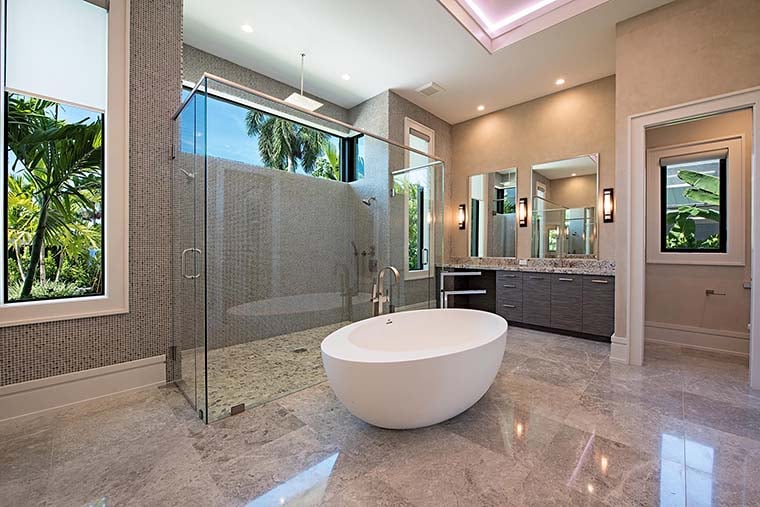

The master ensuite is the best part. A modern freestanding tub in the center of the room just drips with luxury. Behind it is a frameless glass shower. Tall windows allow natural light, and you can watch the palm trees sway in the breeze outside.

Elevations:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

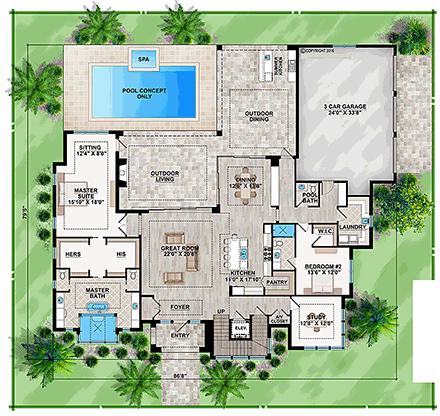

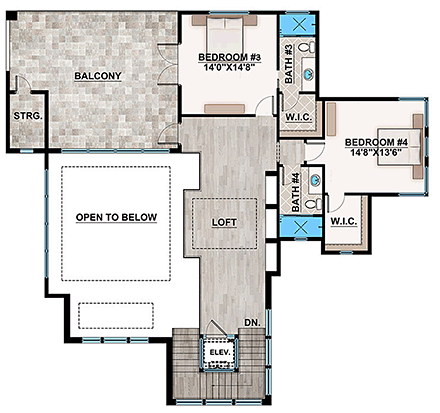

Floor Plans:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Sizes

Electrical Layouts:
*Building Section Markers
*Electrical Outlets, Fixtures and Switching

Slab Plan:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Rough-in Plumbing Location (if applicable)
*Mechanical Equipment Locations (if applicable)
*Electrical Locations (if applicable)

Roof Design Plan:
Drawn to 1/8" to 1/4" = 1’0" scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers

Building Sections:
Drawn to 1/8" to 1/4" = 1’0" scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8" to 1/4" = 1’0" scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness

Miscellaneous Notes and Details:
*Miscellaneous General Notes
*Stairway Details (if applicable)

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

• No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
• Get more accurate results, quicker! No need to wait for a reliable cost.
• Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
• Cost report for your zip code. (the zip code can be changed after you receive the online report)
• Estimate 1, 1-1/2 or 2 story home plans. **
• Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
• Your estimate is active for 1 FULL YEAR!
