Multi-Family Plan 59046

• PDF File: $1,300.00
• 1 Set: $1,075.00 **
• 5 Sets: $1,200.00
• 5 Sets plus PDF File: $1,375.00
• Reproducible Set: $1,475.00
• CAD File: $1,725.00
  Single Build License issued on CAD File orders.
• Materials List: $150.00
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $60.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Crawlspace : No Additional Fee
• Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1200 sq ft
Main Living Area:	600 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Crawlspace Stem Wall Slab
Exterior Walls:	2x4
House Width:	86'
House Depth:	32'
Number of Stories:	1
Bedrooms:	2
Full Baths:	2
Max Ridge Height:	19' from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Load:	40 psf
Roof Framing:	Stick
Porch:	360 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	8'

A great design with a very efficient use of space. Home features include a covered front and rear porch for those evening sunsets with your family, a screened porch/sunroom for entertaining, an open floor plan, large great room, and even a large space that can be used as a den / office / computer room. This house really has it all!

Cover Sheet, showing architectural rendering of the residence

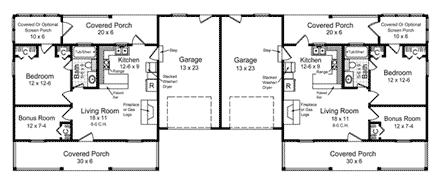

Floor Plan/Plans (scale: 1/4" = 1' - 0")

Cabinet Elevations (scale: 3/8" = 1' - 0")

Electrical Plan Layout with Electrical Symbols Legend

Exterior Elevations (typically 4)

Typical Exterior Wall Section (scale: 3/4" = 1' - 0")

Section Thru Building (usually 1/2" = 1' - 0", transverse section)

Roof Drainage Plan (scale: 1/8" = 1' - 0")

Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")

Short-form FHA/VA Specifications form

License to Build

Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.

This Plan is a USDA Rural Development Certified Plan

Receive a FREE modification estimate:

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Simply contact the modification department via...

Email Us This is the best and quickest way to get a modification quote!

Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.

It's as simple as that!

We are sorry, but an estimated cost build report is not available for this particular plan.

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A
