House Plan 59114
Traditional Style with 3 Bed, 3 Bath, 2 Car Garage
sq ft
2000beds
3baths
2.5bays
2width
69'depth
60'
click for more images
Plan Pricing
Additional Notes
Basement Version of Plan is 59137Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2000 sq ft |
| Main Living Area: | 2000 sq ft |
| Bonus Area: | 359 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Crawlspace Stem Wall Slab |
| Exterior Walls: | 2x4 |
| House Width: | 69' |
| House Depth: | 60' |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Half Baths: | 1 |
| Max Ridge Height: | 22'5 from Front Door Floor Level |
| Primary Roof Pitch: | 8:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Stick |
| Porch: | 299 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9' |
Special Features:
Plan Description
This inviting home has European Country styling with upscale features. The front and rear covered porches add plenty of usable outdoor living space, and include that much-requested outdoor kitchen. Expansive great room includes a beautiful trayed ceiling and features built-in cabinets and a gas fireplace. The spacious kitchen features an oversized island with a large eating bar and breakfast area. The hall bath is equipped with dual lavatories for convenience. The master bedroom has a raised ceiling and opens into the well-equipped bath with dual lavatories, oversized corner jet tub, and large his and her walk-in closets. There is a storage area off the garage for projects and storage. The media/hobby space could be used as a home office, dining room, or playroom. This is a very flexible home with plenty of options to choose from. Make this your family's next home!
What's Included?
Floor Plan/Plans (scale: 1/4" = 1' - 0")
Cabinet Elevations (scale: 3/8" = 1' - 0")
Electrical Plan Layout with Electrical Symbols Legend
Exterior Elevations (typically 4)
Typical Exterior Wall Section (scale: 3/4" = 1' - 0")
Section Thru Building (usually 1/2" = 1' - 0", transverse section)
Roof Drainage Plan (scale: 1/8" = 1' - 0")
Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")
Short-form FHA/VA Specifications form
License to Build
Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.
This Plan is a USDA Rural Development Certified Plan
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Simply contact the modification department via...
Email Us This is the best and quickest way to get a modification quote!
Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.
It's as simple as that!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Previous Q & A
A: $195 for 2x6 conversion. Allow 5 to 6 working days, or your builder can make that change onsite, unless the permit office wont allow it. Thanks, Stephen Mathis
A: Sure. 59011 is 1752 s.f. heated, 2470 total under roof 59016 is 1800 s.f. heated, 2577 total under roof 59105 is 1865 s.f. heated, 2651 total under roof 59017 is 1802 s.f. heated, 2577 total under roof. These are all very similar floor plan and exterior. We also have 59010 (hipped main roof), and 59015, which are slightly different. Thanks.
A: We have very similar plans around 1800 sf. See these plans- 59011, 59010, 59016, 59068, 59084 Thanks.
A: Hello, Yes, the materials list includes all the materials that are shown in the plans, including the brick, siding, shingles, roof decking, lumber package, etc….. You can purchase the materials list by itself, or as an add on option when you purchase the plan package. Once its ordered, we would email it to you. Thanks. Modification Department Stephen Mathis, CPBD

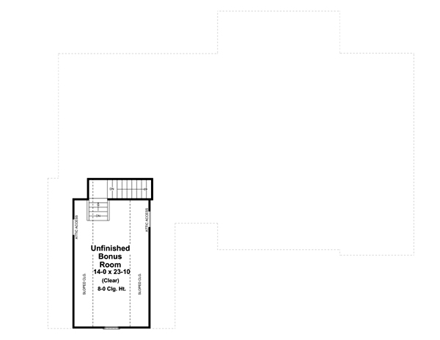

A: Hello, The floor plan layout for the unfinished bonus room is included online.. Scroll down below the floor plan to see it. The bonus room is just an empty room that’s labeled "Unfinished"… so you could choose to finish it if you wish. The side walls are 5' tall, then the ceiling slopes up to 8' flat ceiling in the middle. Theres a window on the front, and a couple of attic access doors along the sides. Hope this helps you. Thanks. Modification Department Stephen Mathis, CPBD
A: No. The room sizes are correct as is. They show the actual useable space in each room.
A: Hello, The entry hall area nearest the garage is 4'x12', and the portion behind the half bath is 8x4.
Have a great day and God bless!
A: 2000 s.f. heated first floor
1020 s.f. unheated first floor
364 s.f. unheated bonus room
3384 s.f. total under roof
Not included brick
These footages are outside of stud wall to outside of stud wall.
Thanks.
A: Hello, Sure. Just take the plans to your local truss manufacturer, and they make the trusses to fit. They do their own plan for that, and design them to meet your local codes. We couldnt do that, so thats why we provide stick framing information.
A: Hello, See plan 59137 for the full basement version of this same plan. The basement comes as unfinished, with no spaces predesigned in the basement level. Just empty basement.
We could put hip roofs on this plan. The front of the garage will still need a gable so that the bonus room can stay the same size. You could put a hip on the front of the garage too, but it would reduce the bonus room by about 5 feet.
Those changes could be made onsite, or we can provide you with a price to modify the plan.
Have a great day.
A: Hello, Sure, the rooflines are perfect for the addition of a vaulted ceiling in there. You could make that change onsite with the builder. No need to modify the plan for that minor change, unless your permit office requires it. Thanks.
A: Hello, No, they do not. See plan 59140 for the location. That’s the alternate plan you get if you ask for the basement version of plan 59114. The garage and laundry area has been shifted four feet forward, so its 21 s.f. larger, but that’s the only difference. There is no other option to get plan 59114 with a basement, unless we do a custom modification for you to create whatever you want. Hope this helps! God bless!
A: Good morning, We do have several versions of this plan. See plan 59050 (different front) 59051, 59146 (craftsman front) 59008 (1639 s.f.) 59009 (1654 s.f.) The closest one is going to be 59010 (1751 s.f.) or 59011 (gables) 59015 has different bath, or 59016. We can also modify any of these plans to meet your requests. Hope you had a great Christmas. God bless! Stephen Mathis, CPBD
A: Good morning, We do have several versions of this plan. See plan 59050 (different front) 59051, 59146 (craftsman front) 59008 (1639 s.f.) 59009 (1654 s.f.) The closest one is going to be 59010 (1751 s.f.) or 59011 (gables) 59015 has different bath, or 59016. We can also modify any of these plans to meet your requests. Hope you had a great Christmas. God bless!
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click for galleryInfo Brochure
Photographs may show modified designs.
Elevation
Video Tour

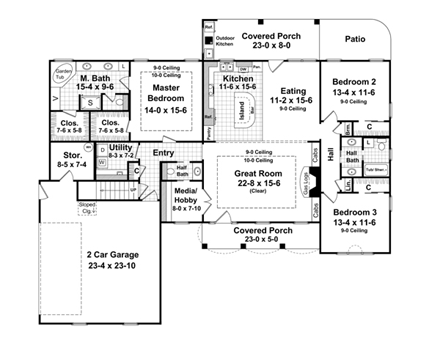

Level One
Level Two
Quick Specs
2000 Total Living Area2000 Main Level
359 Bonus Area
3 Bedrooms
2 Full Baths, 1 Half Baths
2 Car Garage
69' W x 60' D
Quick Specs
2000 Total Living Area359 Bonus Area
3 Bedrooms
2 Full Baths, 1 Half Baths
2 Car Garage
69' W x 60' D
Pricing
PDF File: $1,465.001 Set: $1,215.00
5 Sets: $1,365.00
5 Sets plus PDF File: $1,540.00
CAD File: $1,990.00
more info
Rear Elevation
Photographs may show modified designs.
Related Plans
Buy This Plan
Have any Questions? Please Call 800-482-0464 and our Sales Staff will be able to answer most questions and take your order over the phone. If you prefer to order online click the button below.
Add to cart
