House Plan 59134
Fancy Ranch Floor Plan with Bonus Space, 1888 Sq. Ft, 3 Beds, 3 Baths and a 2 Car Garage
sq ft
1888beds
3baths
2.5bays
2width
55'depth
70'
click for more images
Plan Pricing
Additional Notes
Basement Version of Plan is 59155Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1888 sq ft |
| Main Living Area: | 1888 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Crawlspace Stem Wall Slab |
| Exterior Walls: | 2x4 |
| House Width: | 55' |
| House Depth: | 70' |
| Number of Stories: | 2 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Half Baths: | 1 |
| Max Ridge Height: | 23'9 from Front Door Floor Level |
| Primary Roof Pitch: | 8:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Stick |
| Porch: | 346 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9' |
Special Features:
Plan Description
Fancy Ranch Floor Plan with Bonus Space, 1888 Sq. Ft, 3 Beds, 3 Baths and a 2 Car Garage
This well-designed plan provides many amenities that you would expect to find in a much larger home. The master suite features a wonderful bathroom with large walk-in closet. This plan also features a fourth bedroom with private bath, which is perfect for a guest room. The great room has gas logs as well as built-in cabinets and 10' ceilings that make it a great place to relax and spend time with family and friends. The rear covered porch provides a great space for those summer cookouts as well as being close to the kitchen. The always popular bonus room provides an excellent space for storage or future expansion. The two car garage features space for real-sized vehicles. This plan is the perfect solution to your family's needs.What's Included?
Floor Plan/Plans (scale: 1/4" = 1' - 0")
Cabinet Elevations (scale: 3/8" = 1' - 0")
Electrical Plan Layout with Electrical Symbols Legend
Exterior Elevations (typically 4)
Typical Exterior Wall Section (scale: 3/4" = 1' - 0")
Section Thru Building (usually 1/2" = 1' - 0", transverse section)
Roof Drainage Plan (scale: 1/8" = 1' - 0")
Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")
Short-form FHA/VA Specifications form
License to Build
Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.
This Plan is a USDA Rural Development Certified Plan
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Simply contact the modification department via...
Email Us This is the best and quickest way to get a modification quote!
Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.
It's as simple as that!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Previous Q & A
A: Hello, The distance from the highest point of the roof to the finish floor is 23'-9". The building code in most places requires at least 12" of elevation from the ground to the finish floor, so the minimum height of the house with a 12" elevated floor height would be 24'-9". Your builder will adjust the house according to your local codes, the slope of the land, and any drainage issues. The footages are 1888 s.f. heated, 992 s.f unheated (first floor), 316 s.f. unfinished bonus room, and a total under roof footage of 3196 s.f. Thanks.
A: Hello, The garage/bonus room has a 12/12 slope roof. No, the overhangs on the 12/12 portion do not align with the 4/12 shed roof above the porch, but they do blend into the main roof 8/12 sloped gable on the right side.
A: Hello, We are the designer of this plan you found at www.FamilyHomePlans.com. The answer to your question about combining the two house plans is yes. As far as the other modifications, please send us an email with the list of changes and we will give you a quote as well as a time frame for completion. Thanks, Amanda ----------- House Plan Gallery, Inc.
A: Hello, We are the designer of this plan you found at www.FamilyHomesPlans.com. We would recommend that you order the house plans the way that they are and then hire a Florida designer to make the modifications. Florida building codes require that all plans be stamped by a Florida designer because of this we feel that it will cost you more to let us make the changes and then you still have to hire a Florida designer to redo them. However, if you decide to get us to make the changes, we will be happy to do so. When you are ready to proceed, please call the website to place your order for the plan package. Be sure to tell them that you are having modifications done by the designer. They will process the order, and send a copy to us. We will then proceed with preliminary plans for your review. We would request payment for the modification fees when we complete the work. Please allow 14 to 18 working days for preliminary plans, and an additional 15 to 20 working days for final plans to be completed. Amanda ----------- House Plan Gallery, Inc. Special Note: Customized materials list are not included in this quote. If you purchase the online material list, it will match the ORIGINAL plans NOT the customized set. We do not offer customized materials list at this time. Local builders and carpenters are the best source for those.
A: Hello, The dormer is for looks only. The great room ceiling is flat at 10 feet, so that window is much higher on the roof. You could vault the great room ceiling, then make a "tunnel" to the dormer from the vaulted ceiling if you wanted it to be open to the great room. That’s an easy site change to make by telling the builder.
A: Hello, The bonus room is not included in the 1888 s.f. heated footage. The bonus room comes as unfinished, so its figured as unheated footage. The bonus room contains 316 s.f. of unheated footage. The stairs could be eliminated, and the garage could be shifted forward four feet to eliminate that space where the stairs used to be. That would eliminate 16 s.f. of heated space due to the shorter entry hall, and would eliminate 80 s.f. of unheated footage from the first floor, and 316 s.f. of unheated footage from the total.
A: Hello, No, it does not.
The footages are as follows-
1888 s.f. heated
992 s.f. unheated (first floor)
316 s.f. unheated (bonus room)
3196 s.f. total under roof.
This is outside of stud wall, to outside of stud wall.
Thanks.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click for galleryInfo Brochure
Photographs may show modified designs.

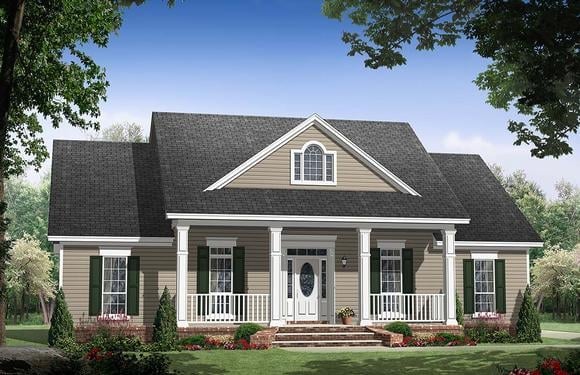

Elevation
Video Tour

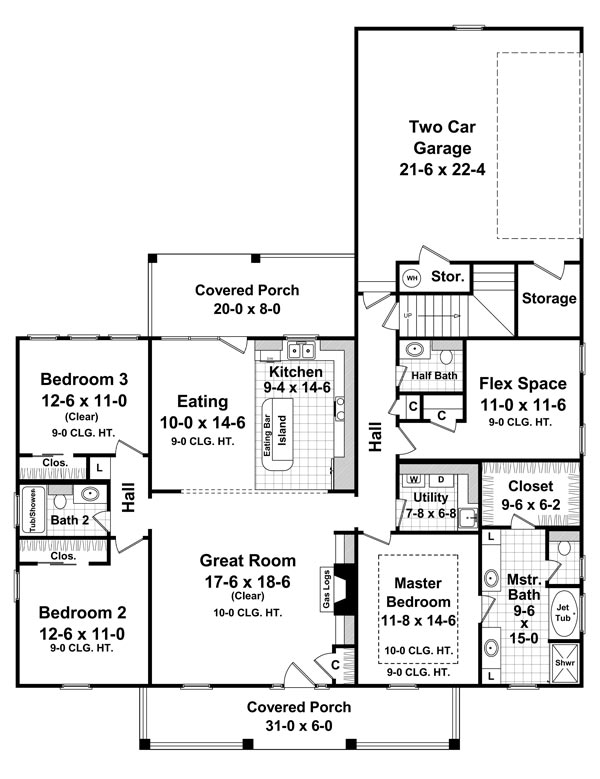

Level One

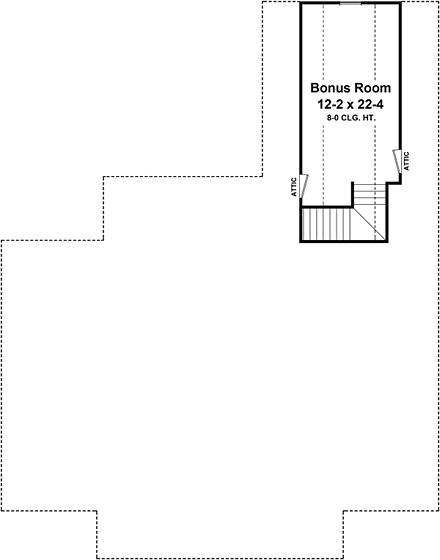

Level Two
Quick Specs
1888 Total Living Area1888 Main Level
3 Bedrooms
2 Full Baths, 1 Half Baths
2 Car Garage
55' W x 70' D
Quick Specs
1888 Total Living Area3 Bedrooms
2 Full Baths, 1 Half Baths
2 Car Garage
55' W x 70' D
Pricing
PDF File: $1,425.001 Set: $1,175.00
5 Sets: $1,325.00
5 Sets plus PDF File: $1,500.00
CAD File: $1,850.00
more info

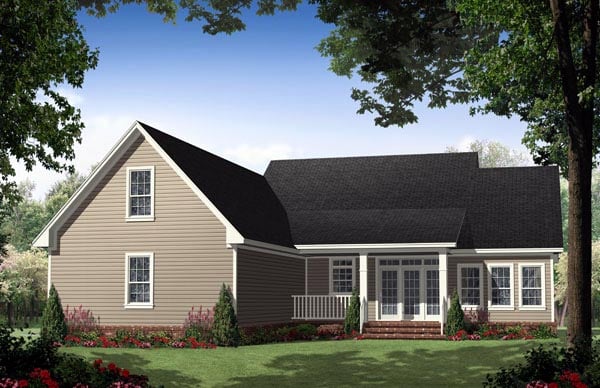

Rear Elevation
Photographs may show modified designs.
