House Plan 59179

• PDF File: $1,300.00
• 1 Set: $1,150.00 **
• 5 Sets: $1,400.00
• 5 Sets plus PDF File: $1,600.00
• CAD File: $1,950.00
  Single Build License issued on CAD File orders.
• Materials List: $150.00
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $65.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Crawlspace : No Additional Fee
• Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1635 sq ft
Main Living Area:	1635 sq ft
Bonus Area:	426 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Crawlspace Stem Wall Slab
Exterior Walls:	2x4
House Width:	70'8
House Depth:	53'10
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Max Ridge Height:	23'11 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Load:	30 psf
Roof Framing:	Stick
Porch:	192 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'

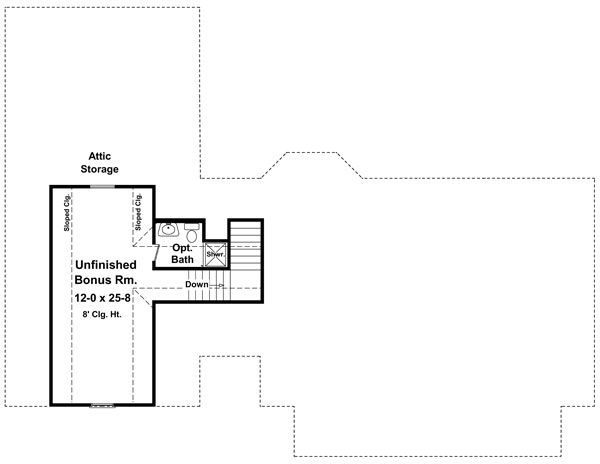

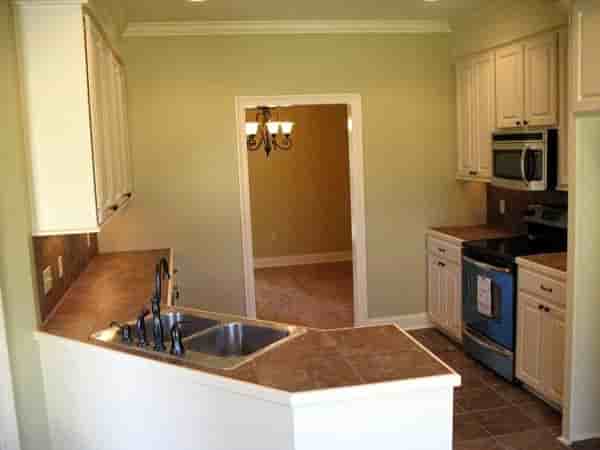

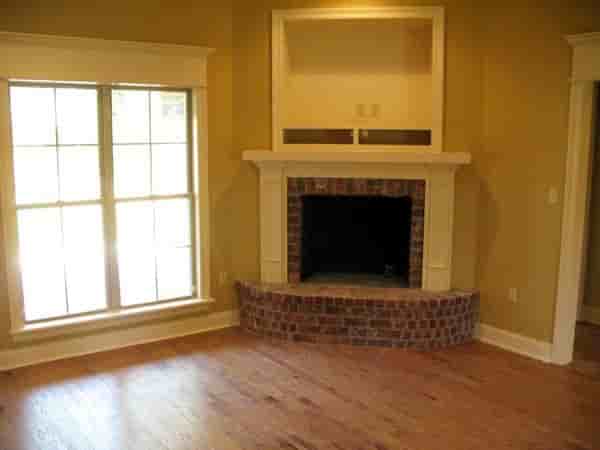

This beautiful country-styled home offers a very functional split floorplan layout. The great room features 10-foot ceilings and cozy fireplace with gas logs. Excellent views of the great room and back yard from kitchen. The expansive and well-appointed master suite includes a large walk-in closet, an oversized jet tub, separate shower, compartmentalized toilet and dual vanities. A large 2 car garage with separate storage is provided and the optional bonus room is an excellent space for a playroom and even has room for an extra bath. This home truly has the flexibility and features that your family wants!

Special Features:

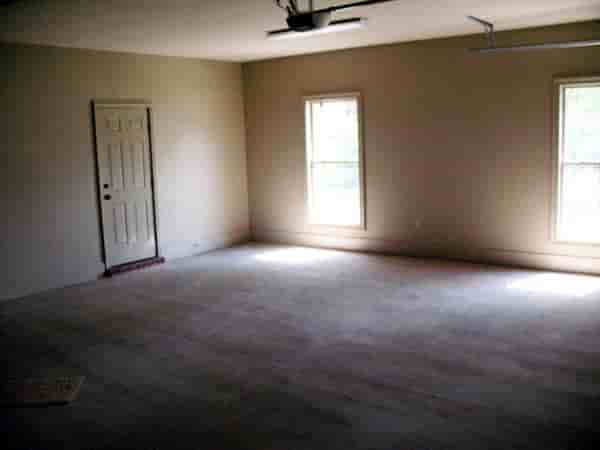

• Bonus Room
• Brick or Stone Veneer
• Front Porch
• Rear Porch

Cover Sheet, showing architectural rendering of the residence

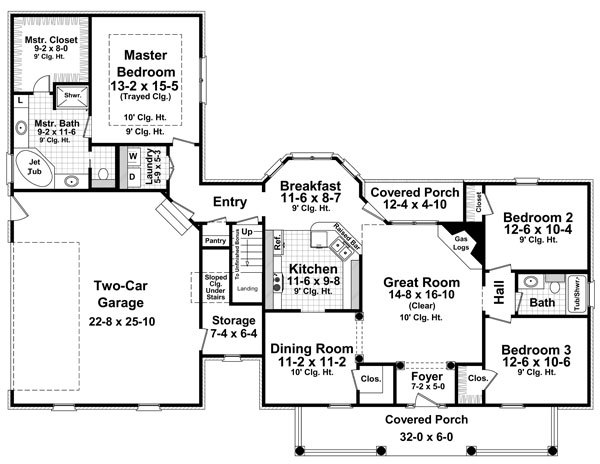

Floor Plan/Plans (scale: 1/4" = 1' - 0")

Cabinet Elevations (scale: 3/8" = 1' - 0")

Electrical Plan Layout with Electrical Symbols Legend

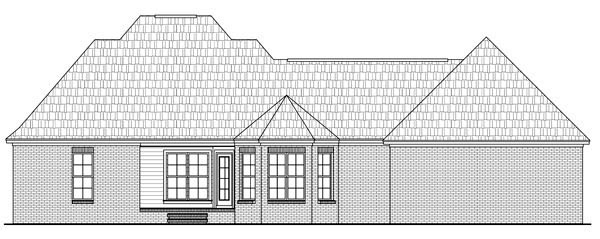

Exterior Elevations (typically 4)

Typical Exterior Wall Section (scale: 3/4" = 1' - 0")

Section Thru Building (usually 1/2" = 1' - 0", transverse section)

Roof Drainage Plan (scale: 1/8" = 1' - 0")

Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")

Short-form FHA/VA Specifications form

License to Build

Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Any plan less than 1200 heated sq ft is formatted on 18x24 size paper. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.

This Plan is a USDA Rural Development Certified Plan

Receive a FREE modification estimate:

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Simply contact the modification department via...

Email Us This is the best and quickest way to get a modification quote!

Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.

It's as simple as that!
