Beautiful Two Car Garage with Covered Storage Area, covered porch and Vaulted Attic
2 car garage building plans for a Craftsman style garage plan that can park up to two cars. Both doors are the same size at 9' wide and 8' tall. In the back is a set of stairs that lead up to a vaulted attic. The vault in the attic is about 11'6" and slopes down to 8'. A covered patio or storage area on the side is a great place to relax in the shade while you work in the workshop you build in the attic space
Use building plans from Family Home Plans to build your next new garage.

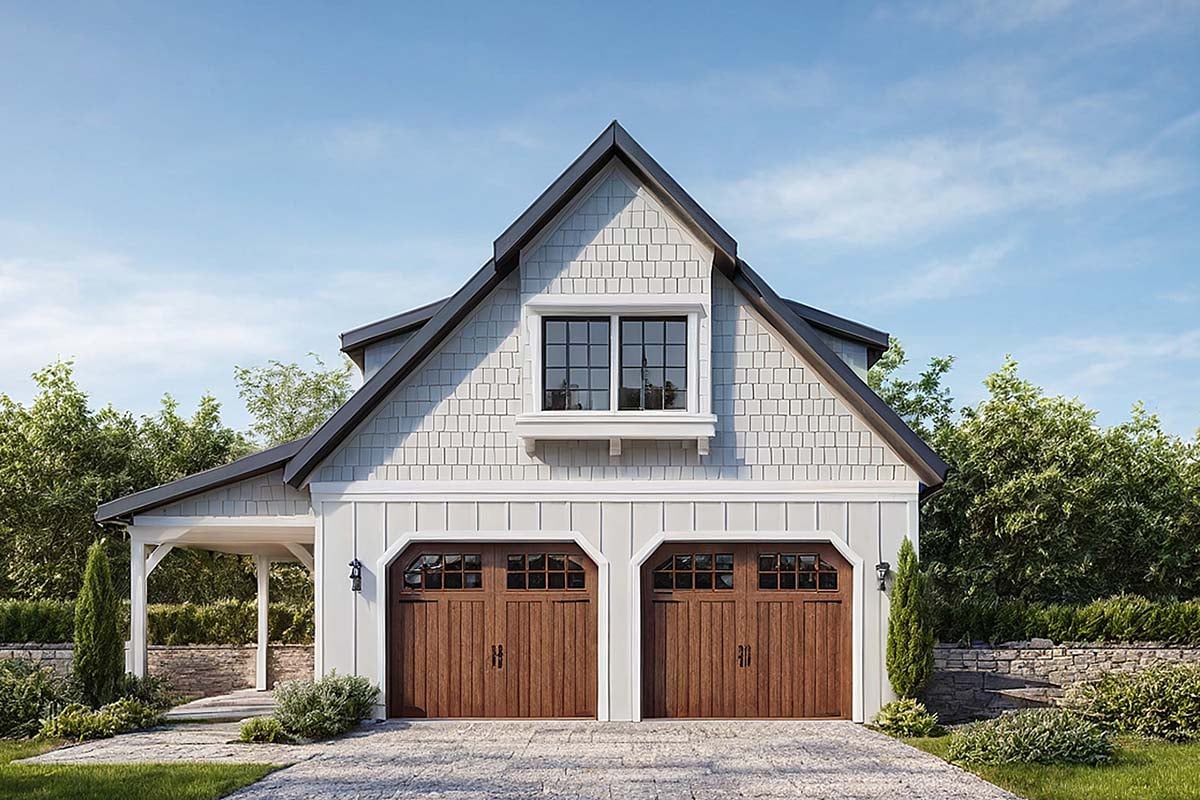

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

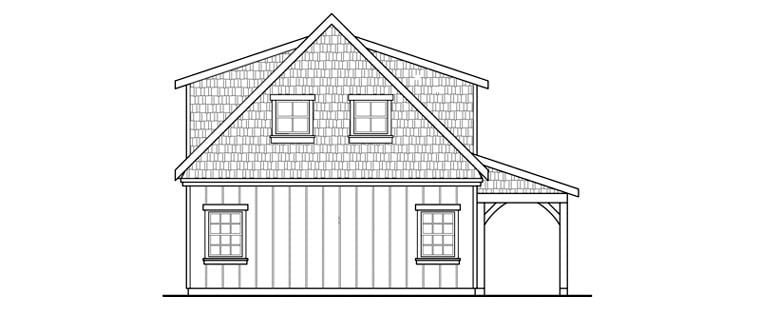

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

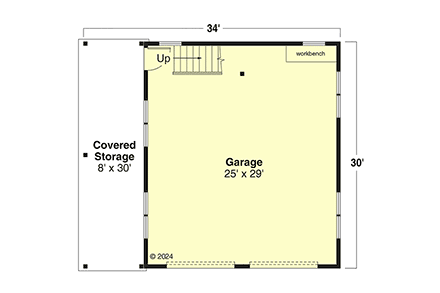

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.
Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.
Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.
Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting and electrical outlets.
Receive a FREE modification estimate:
1) Please Email Us your changes. (Itemized list of changes with details)
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
Q:Could you tell me what the midway distance is between the peak of the roof and the gutter line? Thank you...Joe
To answer the clients question, on the main roof (12” in 12” roof pitch), the measured midway distance between the peak (ridgeline) of the roof and the gutter line (@ the fascia bd) is about 9’-10”. Otherwise, the distance from the midpoint of the main roof (12” in 12” roof pitch) to the grade is approximately 18’-3”. Please let us know if there is anything else we can help with.
Q:What is the total square footage of this plan?
A:Below is the square footage breakdown for plan 59479.
Garage: 780 sq ft
Attic: 594 sq ft
Covered Storage: 240 sq ft
Total: 1614 sq ft
Let us know if we can help with any other questions.
Q:What are the ceiling heights? 8 or 10' walls?
A:Thank you for your interest in plan 59479.
This design is currently drawn with 9’ ceilings on the main floor with an 8’ ceiling at the covered storage and second floor. On the second floor the ceiling does slope down to 4’-4” high walls on the left and right sides next to the dormers.
Please let us know if you have any other questions about this plan.
Q:What is the pitch of the roof and porch?
A:Thank you for your interest in plan 59479.
The primary roof pitch for this plan is a 12/12. We have 4/12 pitches for the dormers as well as the covered storage.
Q:What is the pitch of the roof. Horizontal and vertical pitch?
A:Thank you for your interest in plan number 59479.
The roof pitch at the dormers and covered storage is 4/12 while the rest of the roof is drawn at a 12/12 pitch.
Common Q & A
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
