Plan Pricing from $1,300.00

Plan Pricing

PDF File: $1,300.00
1 Set: $1,150.00 **
5 Sets: $1,400.00
5 Sets plus PDF File: $1,600.00
CAD File: $1,950.00
Single Build License issued on CAD File orders.
Materials List: $150.00
Right Reading Reverse: $150.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $65.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.
Crawlspace : No Additional Fee
Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	1801 sq ft
Main Living Area:	1801 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement Crawlspace Stem Wall Slab
Exterior Walls:	2x4
House Width:	67'
House Depth:	57'4
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Max Ridge Height:	22'3 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	30 psf
Roof Framing:	Stick
Porch:	261 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'

* May require additional drawing time.

Special Features:

Front Porch
Rear Porch

Plan Description

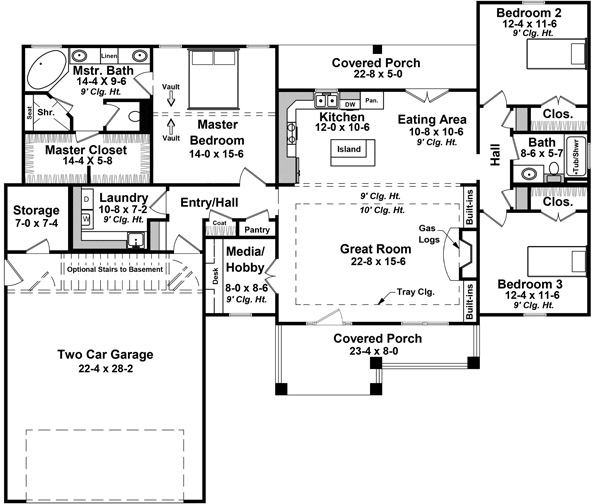

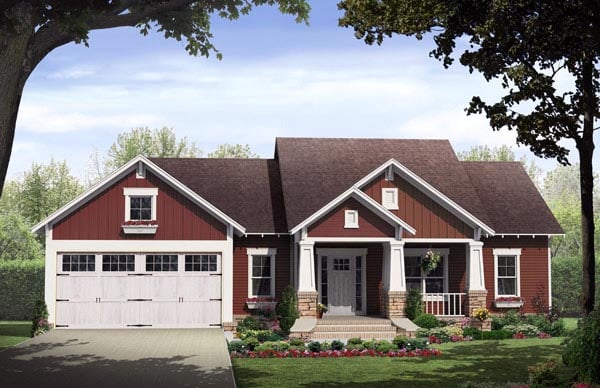

The exterior of this home is full of craftsman charm. The beautiful front porch welcomes your guests right into the large great room. The great room features a trayed ceiling with a fireplace. It is also open to the kitchen and eating area. A media/hobby is conveniently located off the great room. A private hall leads you to the master suite where you can enjoy a large walk-in closet and master bath with separate vanities. This home featues a split-bedroom layout. It is the perfect solution for your family's needs.

What's Included?

Cover Sheet, showing architectural rendering of the residence

Floor Plan/Plans (scale: 1/4" = 1' - 0")

Cabinet Elevations (scale: 3/8" = 1' - 0")

Electrical Plan Layout with Electrical Symbols Legend

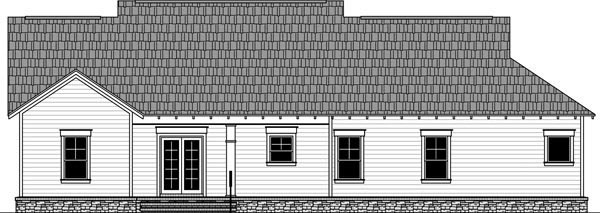

Exterior Elevations (typically 4)

Typical Exterior Wall Section (scale: 3/4" = 1' - 0")

Section Thru Building (usually 1/2" = 1' - 0", transverse section)

Roof Drainage Plan (scale: 1/8" = 1' - 0")

Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")

Short-form FHA/VA Specifications form

License to Build

Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Any plan less than 1200 heated sq ft is formatted on 18x24 size paper. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.

This Plan is a USDA Rural Development Certified Plan

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate:

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Simply contact the modification department via...

Email Us This is the best and quickest way to get a modification quote!

Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.

It's as simple as that!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: With basement foundation, does the garage get pushed forward? What are the dimensions of the house? What would it cost to push the back of the house out to match the back wall of bedroom 2?

A: Hello, The footprint of the garage and house is the same regardless of which foundation type is selected. Clients who choose the slab or crawlspace foundation get a 28' deep garage. Clients who choose the basement option lose four feet of depth, and get approx. 24' depth in the garage. The exterior wont change due to basement stairs. It is possible to extend the garage, to maintain the original 28' depth, if you wish. If the only change is to extend the rear of the house out to align with the rear wall of bed 2, the cost to modify the plan would be $425 in addition to the purchase of the plan package. If you wish to also extend the depth of the garage, the cost would change to $495 in addition to the plan package. Allow 3 to 5 working days for preliminary plans, and another 5 to 8 working days for final plans. Thanks.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
