House Plan 60028
Beautiful Craftsman House Plan a Rustic One Story Home Design has 4 Bedrooms Large Open Floor Plan
sq ft
3145beds
4baths
3.5bays
3width
104'depth
101'
click for more images
Plan Pricing
Designer does not allow modifications be made to PDF. Please order CAD file for modifications.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 3145 sq ft |
| Main Living Area: | 3145 sq ft |
| Bonus Area: | 545 sq ft |
| Garage Area: | 1029 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Basement Crawlspace Slab |
| Exterior Walls: | 2x4 |
| House Width: | 103'5 |
| House Depth: | 100'10 |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 3 |
| Half Baths: | 1 |
| Max Ridge Height: | 24'9 from Front Door Floor Level |
| Primary Roof Pitch: | 6:12 |
| Roof Framing: | Stick |
| Porch: | 647 sq ft |
| Formal Dining Room: | Yes |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9'0 |
| Upper Ceiling Height: | 9'0 |
Special Features:
Plan Description
Beautiful Craftsman House Plan a Rustic One Story Home Design has 4 Bedrooms Large Open Floor Plan
An impressive split bedroom design with a massive central family room with an open layout. A four-bedroom home plan with formal dining, large master suite and power room. Bed 3 has a private bath and beds 2 and 4 share a jack and jill bathroom. The family room opens onto a covered terrace with paladin windows overhead. An optional bonus room over the garage expands the floor space by 583 square feet. Build this craftsman home design with our Arts and Crafts building plans.What's Included?
Square footage calculations are based on total heated space only and will NOT include garages, porches or exterior storage areas. NOTE: Thses plans will include ALL of the following:
FOUNDATION PLAN-On many of our plans we offer you options on the type of foundation you prefer. The available options for each plan are shown on the page with the plans.
FLOOR PLAN-Included with your plans will be a detailed floor plan, 1/4 inch scale, including location of lights, receptacles, switches and plumbing fixtures. Window and door sizes are noted.
ELEVATIONS-Our plans include complete front elevations drawns at 1/4" scale, other elevations drawn at 1/8" scale.
DETAILS-We furnish any necessary sections for construction of the home like Wall Sections, Stair Sections, Foundation Sections, etc.
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Simply contact the modification department via...
Email Us This is the best and quickest way to get a modification quote!
Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.
It's as simple as that!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Good Morning! This plan does not include a fire suppression system detail.
A: It can. If it vaults just in the family room the kitchen would need to have a flat ceiling. We can vault the ceiling in the family room for $225.00 in a 1 week +- timeframe
A: The photos were submitted by a previous owner and we have no idea where it was constructed.
A: If you finished the entire Lower Level the square footage is 3099. If you have a specific area tell what areas and we can tell you the square footage.
A: Q: When built on a slab, where are the hot water heater and HVAC located? A: In a storage closet that replaces the basement stairs going down. Q: Where is the main breaker box located? A: That will be based upon where you main power enters the house per your electrician. Q: Also, where does the window above the front entrance open up to? A: Attic Space. Q: Is it just cosmetic? A: Yes.
A: Most any building supply dealer can order them for you. Just show them the picture
A: It will according to what foundation plan you will be on. If it will be on a slab foundation it would be approximately 9’-4”. If it will be on a basement it would approximately be 10’-0” This is a site controlled issue that the builder will handle.
A: The basement staid area turns into a storage closet. We can redesign that area to make a bigger Mud Room entry if a storage closet is not needed for $350.00 additional in a 2 week +- time frame
A: As it states on the web site the Family Room / Kitchen area is a 12’-0” tall, coffered ceiling. Also, as it states on the web site the Family Room is 28’-0” deep form the Foyer wall to the rear Family Room wall
A: It would be impossible to make it 2500 square feet. We suggest that if your budget is 2500 square feet focus on that range and not 3100 square foot plans
A: Approximately 14’-0” to the very peak of the vault
A: It can be. You can do that on the job site, or we can make the wall conversion for you for $250.00 when you place the order
A: The Powder Room is 6’-0” X 6’-0”
A: This plan meets all the national code requirements, but your area may have amendments to that code. Our plans make it through all building departments except the ones that do have some amendments. Some areas may also require special wind shear, snow load or seismic requirements that may need to be done at you local level. If any of these are required in your area your builder will have access to professionals in your area that can supply those items needed.
A: The master bath is a total of 12’-6’ X 16’-0” The master closet is 12’-0” X 14’-0” Bedroom 3 bath is 12’-0” X 6’-0” Bedroom 2 & 4 bath is 16’-6” X 10’-10” which includes Bedroom 4 closet There are no additional photos of the plans available
A: No it is not at this time
A: We currently do not have that request
A: Everything - main level, bonus room, garage & porch’s is 5427 total under roof square feet
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click for galleryInfo Brochure

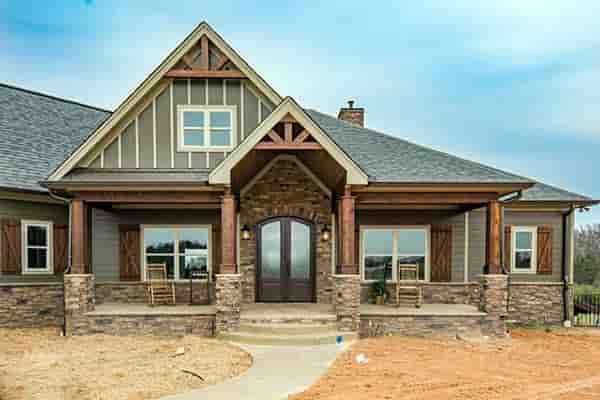

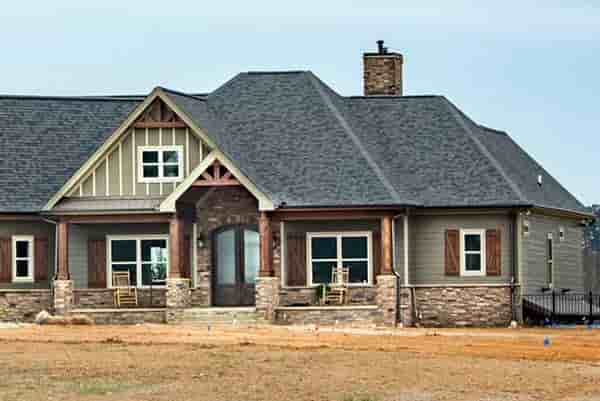

Photographs may show modified designs.
Elevation
Level One
Level Two
Lower Level
Quick Specs
3145 Total Living Area3145 Main Level
545 Bonus Area
4 Bedrooms
3 Full Baths, 1 Half Baths
3 Car Garage
103'5 W x 100'10 D
Quick Specs
3145 Total Living Area545 Bonus Area
4 Bedrooms
3 Full Baths, 1 Half Baths
3 Car Garage
103'5 W x 100'10 D
Rear Elevation
Photographs may show modified designs.
