Misc Plan 6024

• PDF Study Set: $500.00
  Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
• PDF File: $700.00
• 1 Set: $500.00
• 5 Sets: $600.00
• 5 Sets plus PDF File: $800.00
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List Included With Plan Order
• Additional Sets: $50.00

Plans are not to be sold in New Jersey or Maryland.

Available Foundation Types:

• Post : No Additional Fee
• Slab : $50.00
  May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

• 2x6: No Additional Fee
• Log: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	201 sq ft
Main Living Area:	144 sq ft

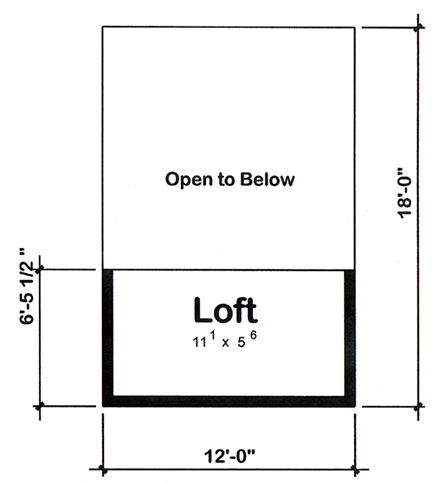

Upper Living Area:	60 sq ft
Garage Type:	N/A or Unknown
Foundation Types:	Post Slab - * $50.00
Exterior Walls:	2x6 Log
House Width:	12'
House Depth:	18'
Number of Stories:	2
Bedrooms:	1
Max Ridge Height:	15'4 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Framing:	Stick
Porch:	61 sq ft
Main Ceiling Height:	8'
Upper Ceiling Height:	3'2

* May require additional drawing time.

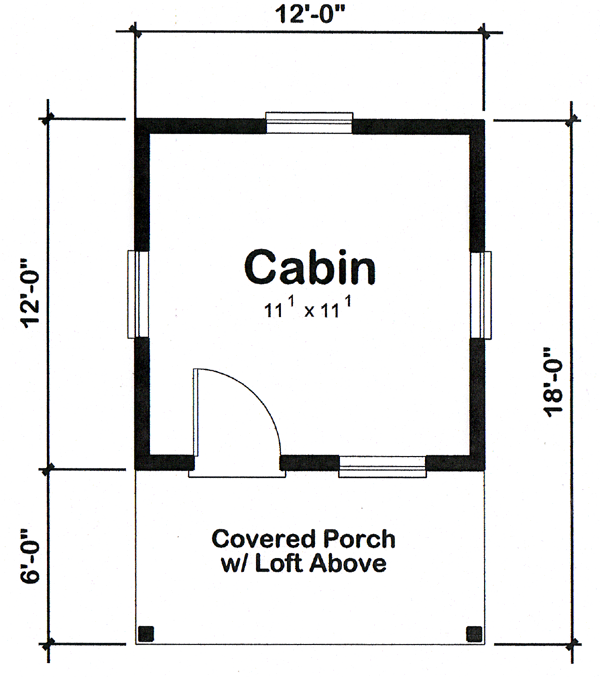

Outdoor Cabin w/ Loft

This compact, 12'-wide cabin design with loft can be built either 12', 16' or 20' deep. Three Different Sizes 12' x 12' 12' x 16' 12' x 20' Wall Styles 5x6 Timber Framed 2x8 Log Siding

Exterior Elevations Scaled drawings of the front, rear, sides of the home. Information pertaining to the exterior finish materials, roof pitches and exterior height dimensions.

Typical Wall Section This section will address insulation, roof components, and interior and exterior wall finishes. Your plans will be designed with either 2x4 or 2x6 exterior walls, but most professional contractors can easily adapt the plans to the wall thickness you require.

Fireplace Details If the home you have chosen includes a fireplace, the fireplace detail will show typical methods to construct the firebox, hearth and flue chase for masonry units, or a wood frame chase for a zero-clearance unit. Available for most plans.

Foundation Plan These plans will accurately dimension the footprint of your home including load bearing points and beam placement if applicable. The foundation style will vary from plan to plan.

Roof Plan The information necessary to construct the roof will be included with your home plans. Some plans will reference roof trusses, while many others contain schematic framing plans. These framing plans will indicate the lumber sizes necessary for the rafters and ridgeboards based on the designated roof loads.

Typical Cross Section A cut-away cross-section through the entire home shows your building contractor the exact correlation of construction components at all levels of the house. It will help to clarify the load bearing points from the roof all the way down to the basement. Available for most plans.

Detailed Floor Plans The floor plans of your home accurately dimension the positioning of all walls, doors, windows, stairs and permanent fixtures. They will show you the relationship and dimensions of rooms, closets and traffic patterns. The schematic of the electrical layout may be included in the plan.

Stair Details If stairs are an element of the design you have chosen, the plans will show the necessary information to build these, either through a stair cross section, or on the floor plans.
