House Plan 60570

• PDF File: $2,142.86
• Reproducible Set: $2,142.86
• CAD File: $2,142.86
  Single Build License issued on CAD File orders.
• Right Reading Reverse: $500.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $45.00

THIS PLAN CANNOT BE SOLD FOR CONSTRUCTION ANYWHERE IN THE STATE OF FLORIDA WITHOUT DESIGNER APPROVAL. Please call for availability.

Available Foundation Types:

• Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

• Concrete: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	3402 sq ft
Main Living Area:	3402 sq ft
Garage Area:	890 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Stem Wall Slab
Exterior Walls:	Concrete
House Width:	110'2
House Depth:	110'4
Number of Stories:	1
Bedrooms:	4
Full Baths:	4
Half Baths:	1
Max Ridge Height:	24'2 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Truss
Porch:	983 sq ft
Formal Dining Room:	Yes
1st Floor Master:	Yes

Special Features:

• Outdoor Pool
• Rear Porch

Is what your friends and family will be saying about this Mediterranean Home! Three complete suites plus the master suite and octagonal shaped study. This floor plan is efficient with a wonderful use of space packing all of that into 3,400 square feet of living. Dramatic radial window in the living room welcomes guests and invites them to see what lies just beyond the glass. Upon entering the family area, the wall of glass disappears opening that area for a spacious entertaining haven! A great family house plan........remember if you ever need modifications to any of our blueprints, just ask!

Elevations

Drawn at 1/8" to 1/4" = 1'-0" Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

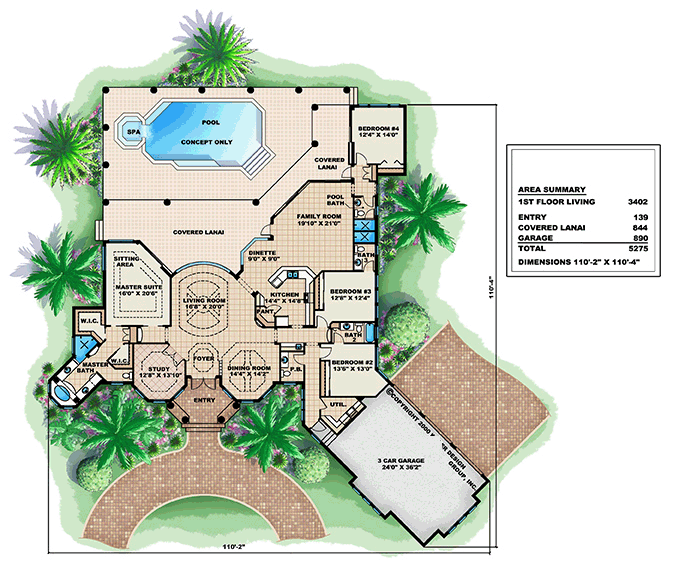

Floor Plans
