Plan Pricing from $370.00

Plan Pricing

PDF File: $370.00
CAD File: $670.00
Single Build License issued on CAD File orders.
Right Reading Reverse: $100.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $50.00

Need Prints?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Additional Notes

Foundation plan is a floating slab

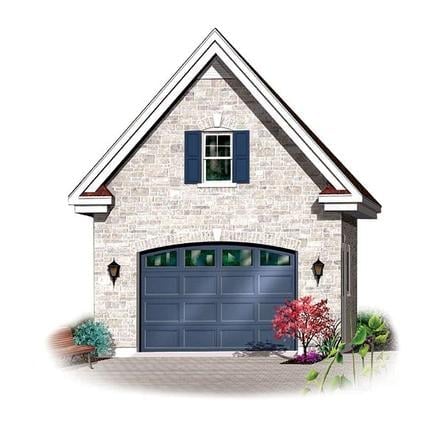

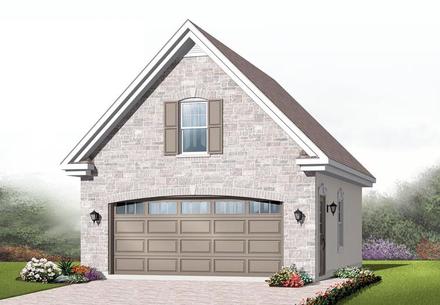

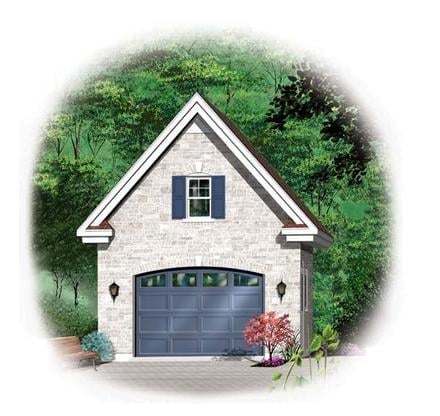

65303,64836,64837 are this garage plan in different sizes

** Please note that a PDF File is included with a 3 Set Order**

**All plans by this designer are being updated to IRC 2015 starting on March 13, 2023. This plan may be delayed by 4 business days before shipping.**

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Bonus Area:	231 sq ft
Garage Area:	345 sq ft
Garage Type:	Detached
Garage Bays:	1
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	15'
House Depth:	23'
Number of Stories:	2
Max Ridge Height:	20' from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Framing:	Unknown

Plan Description

The Carriage Colonial 1

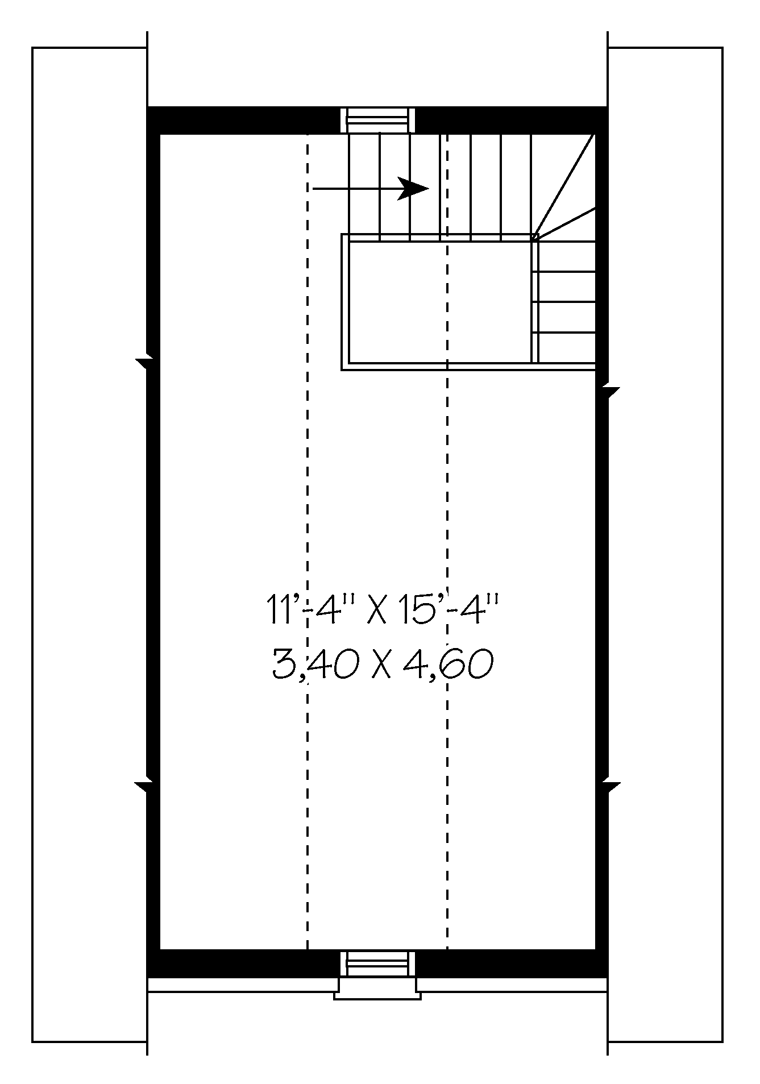

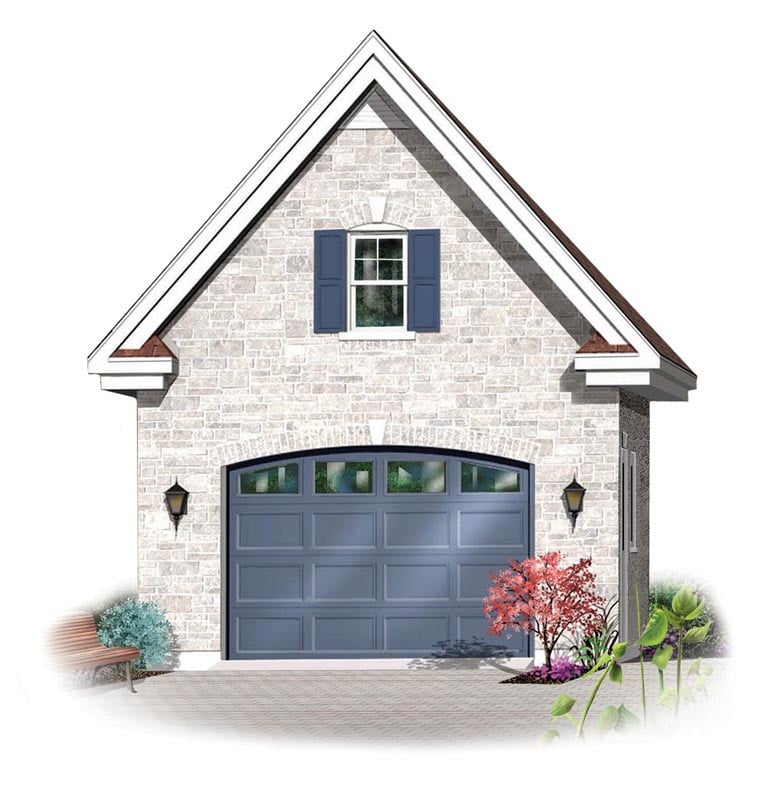

Store your ride in style in this charming colonial style garage. Stonework, decorative trim, an arched door and a shuttered window create a most pleasing facade. Stairs lead to a 231 square foot storage area which would also delight youngsters as a play area.

What's Included?

All our house plans include:

-4 elevations
-Foundation plan

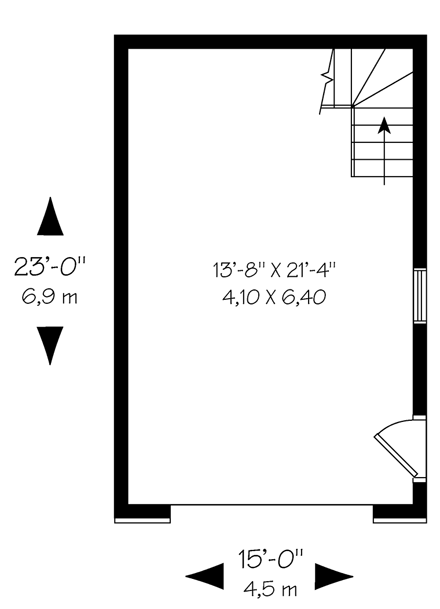

-Ground floor plan
-Upper floor plan (if applicable)
-Roof plan
-Truss diagrams and building sections (manufactured trusses required – no structural details included)
-Construction details
-Typical wall section

NOT included:

-Engineering
-HVAC (Heating, ventilation and air conditioning)
-Electrical and plumbing plans

What's included in our house plans detail

BCIN # for Ontario customers is available at an additional charge

-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.

Modifications

Want to make changes to a house plan at Family Home Plans?

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: I really like your design we just have on question. What is the measurement on the side over hangs? Or how far from wall to edge of over hang is that measurement. We are trying to determine what the maximum width over hang on one side to outside edge of over hang on other side. Thank you so much!

A: Hi, This is a double cornice The dimensions are #1: 18” over hangs #2: 14” over hangs Thanks

Q: I like the look of your design since I want a single car garage and a workshop area. Can you tell me the workable standing height area of the second floor. and the height at the sides. Could I put woodworking tools such as table saws etc on this second floor?

A: Good day and thank you for your interest in our plans.

The knee wall height is 2' 6" with the maximal height for the second floor space at 7'.

According to my technical staff, the floor is sturdy enough to accomodate tools, such as a table saw, that are normally used by the home owner but not industrial style equipment.

Please let me know if I can further assist you.

Regards

Deborah

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
